Magnetic card reader (Tracks 1, 2 & 3) - USB-C, Bluetooth LE
| Main Specifications | |
|---|---|

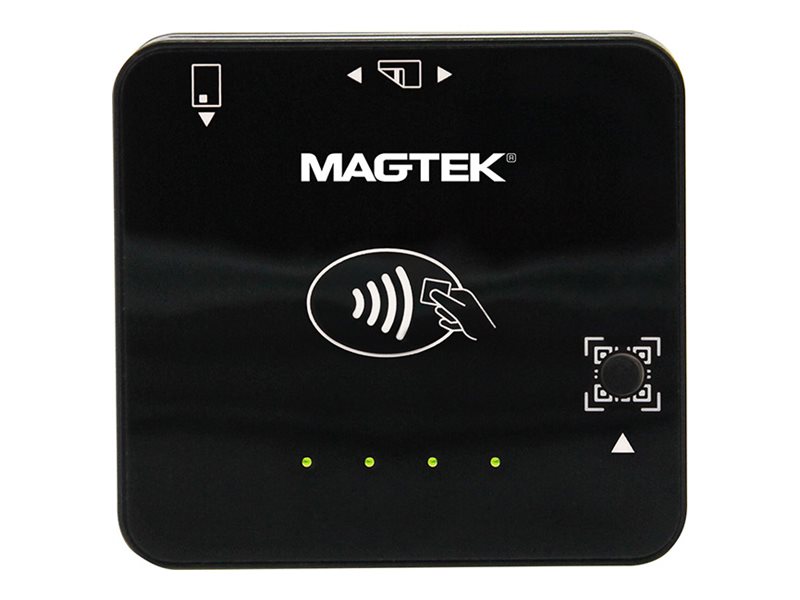

| Product Description | MagTek DynaFlex II Go - magnetic card reader - USB-C, Bluetooth LE |
| Device Type | Magnetic card reader |
| Interface Type | USB-C, Bluetooth LE |
| ISO Card Tracks | Tracks 1, 2 & 3 |
| Dimensions (WxDxH) | 2.8 in x 2.6 in x 0.8 in |
| Weight | 3.24 oz |
| OS Required | Windows 10, Android 4.4.2 (KitKat), IOS |
| General | |
| Device Type | Magnetic card reader |
| Interface Type | USB-C, Bluetooth LE |
| Width | 2.8 in |
| Depth | 2.6 in |
| Height | 0.8 in |
| Weight | 3.24 oz |
| Expansion / Connectivity | |
| Connections | 1 x USB - 24 pin USB-C |
| Miscellaneous | |
| OK Notification | LED indicator, beeper |
| TTL Decoding | Decoded |
| Device Features | USB powered, MiFare cards compatible, DESFire cards compatible, NTAG2xx cards compatible, NFC smart card compatible |
| Compliant Standards | EMVCo 4.3 Level 1, EMVCo Terminal 1, ICC, ISO/IEC 7816, Discover D-PAS, Amex ExpressPay, Visa payWave, MasterCard payPass, ISO/IEC 18092, ISO/IEC 14443A/B, AES-128, AES-256, IP30 |
| Software / System Requirements | |
| OS Required | Windows 10, Android 4.4.2 (KitKat), IOS |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | ? 90% |
| Barcode | |
| Barcodes | QR code, UPC-A / E, Code 128, PDF417, Data Matrix, Aztec |
| Minimum Bar Width | 1181.1 mil |
| Magnetic Card Reader | |
| Recording Standard | ISO 7810/7811 |
| Card Format | AAMVA |
| ISO Card Tracks | Tracks 1, 2 & 3 |
| Read Speed | 6 - 60 ips (15 - 152 cm/sec) |
