Cisco Virtual Interface Card 15237
- Back to Results
Main Specifications
|
---|
Product Description
|

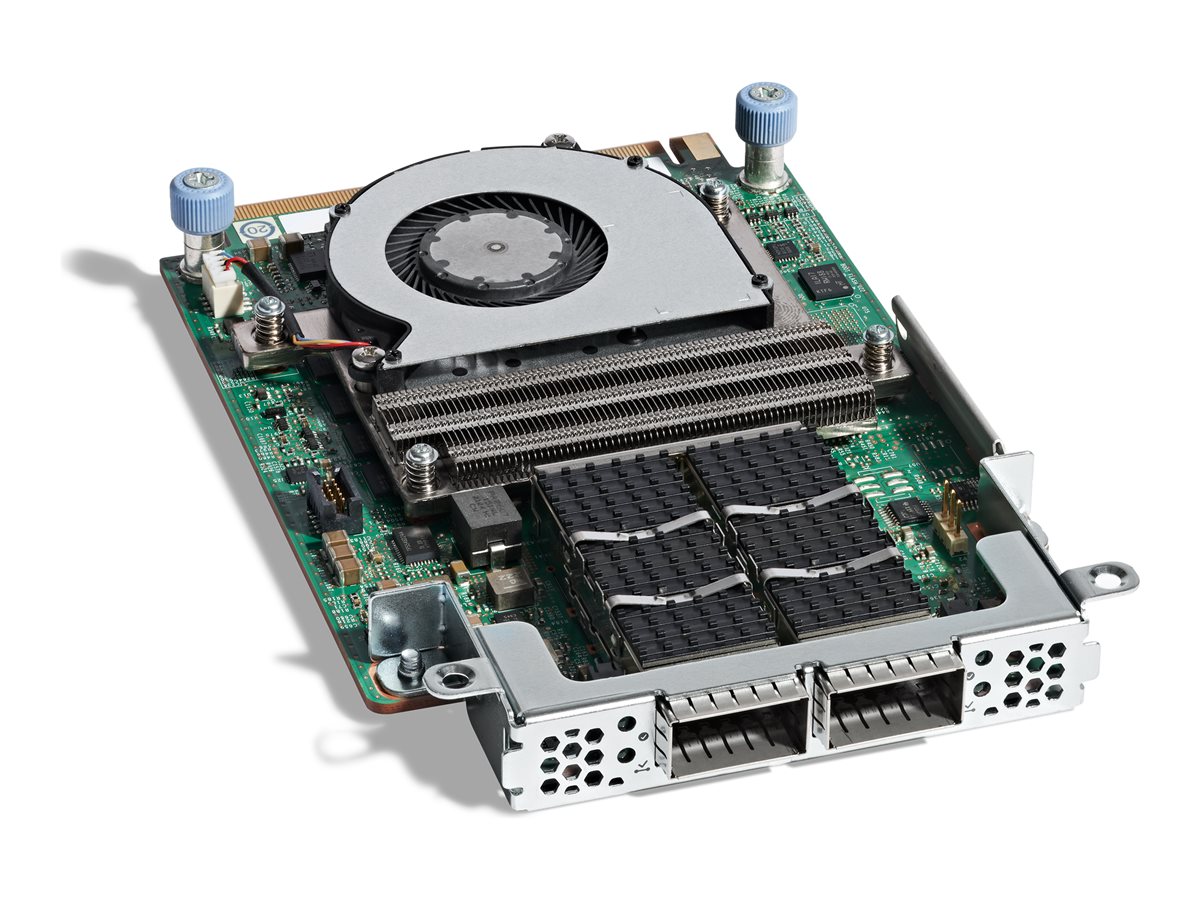

Cisco Virtual Interface Card 15237 - network adapter - mLOM - 200 Gigabit Ethernet x 4
|
Device Type
|
Network adapter
|
Form Factor
|
Plug-in module
|
Interface (Bus) Type
|
Modular LAN-on-motherboard (mLOM)
|
Ports
|
200 Gigabit Ethernet x 4
|
Dimensions (WxDxH)
|
3.9 in 0.7 in
|
Length
|
6.3 in
|
Data Link Protocol
|
40GbE, 100GbE, 200GbE
|
Data Transfer Rate
|
200 Gbps
|
Performance
|
Latency: 1 µs ¦ Throughput: 200 Gbps
|
Capacity
|
IOPS: 900000 ¦ Jumbo frame size: 9 KB ¦ Virtual interfaces (VLANs): 512
|
Network / Transport Protocol
|
TCP/IP, UDP/IP, iSCSI, IPv4, IPv6
|
Compliant Standards
|
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ae, IEEE 802.3ap, IEEE 802.3ba, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.3bj, IEEE 802.3bm, IEEE 802.1BR, IEEE 802.3by, IEEE 802.3cd
|
System Requirements
|
SUSE Linux Enterprise Server, Microsoft Windows, Red Hat Enterprise Linux, Ubuntu, Citrix XenServer, VMware vSphere
|
Manufacturer Warranty
|
3-year warranty
|
General
|
---|
Device Type
|
Network adapter
|
Form Factor
|
Plug-in module
|
Interface (Bus) Type
|
Modular LAN-on-motherboard (mLOM)
|
Expansion / Connectivity
|
---|
Interfaces
|
4 x 40Gb Ethernet/100Gb Ethernet/200Gb Ethernet - QSFP/QSFP28/QSFP56
|
Manufacturer Warranty
|
---|
Service & Support
|
Limited warranty - replacement - 3 years
|
Miscellaneous
|
---|
Compliant Standards
|
WEEE, WWN
|
Networking
|
---|
Ports
|
200 Gigabit Ethernet x 4
|
Connectivity Technology
|
Wired
|
Data Link Protocol
|
40 Gigabit Ethernet, 100 Gigabit Ethernet, 200 Gigabit Ethernet
|
Fibre Channel
|
SCSI-FCP
|
Data Transfer Rate
|
200 Gbps
|
Performance
|
Latency: 1 µs ¦ Throughput: 200 Gbps
|
Capacity
|
IOPS: 900000 ¦ Jumbo frame size: 9 KB ¦ Virtual interfaces (VLANs): 512
|
Network / Transport Protocol
|
TCP/IP, UDP/IP, iSCSI, IPv4, IPv6
|
Features
|
VLAN support, Quality of Service (QoS), Single Root I/O Virtualization (SR-IOV), NetFlow, FCoE support, iSCSI boot, built-in ASIC, Cisco SingleConnect technology, Priority-Based Flow Control (PFC), Fabric-Device Management Interface (FDMI), Virtual Extensible LAN (VXLAN), Network Virtualization using Generic Routing Encapsulation (NVGRE), RDMA over Converged Ethernet (RoCE) v2, N-Port ID virtualization, secure boot, Data Plane Development Kit (DPDK), virtual machine multiqueues (VMMQ), Q-in-Q tunneling, usNIC, GENEVE support, NetQueue, receive flow steering, VMware NetQueue and Microsoft Virtual Machine Queue (VMQ)
|
Compliant Standards
|
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ae, IEEE 802.3ap, IEEE 802.3ba, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.3bj, IEEE 802.3bm, IEEE 802.1BR, IEEE 802.3by, IEEE 802.3cd
|
Software / System Requirements
|
---|
Software Included
|
Cisco Intersight
|
OS Required
|
SUSE Linux Enterprise Server, Microsoft Windows, Red Hat Enterprise Linux, Ubuntu, Citrix XenServer, VMware vSphere
|
Dimensions & Weight
|
---|
Width
|
3.9 in
|
Height
|
0.7 in
|
Length
|
6.3 in
|
