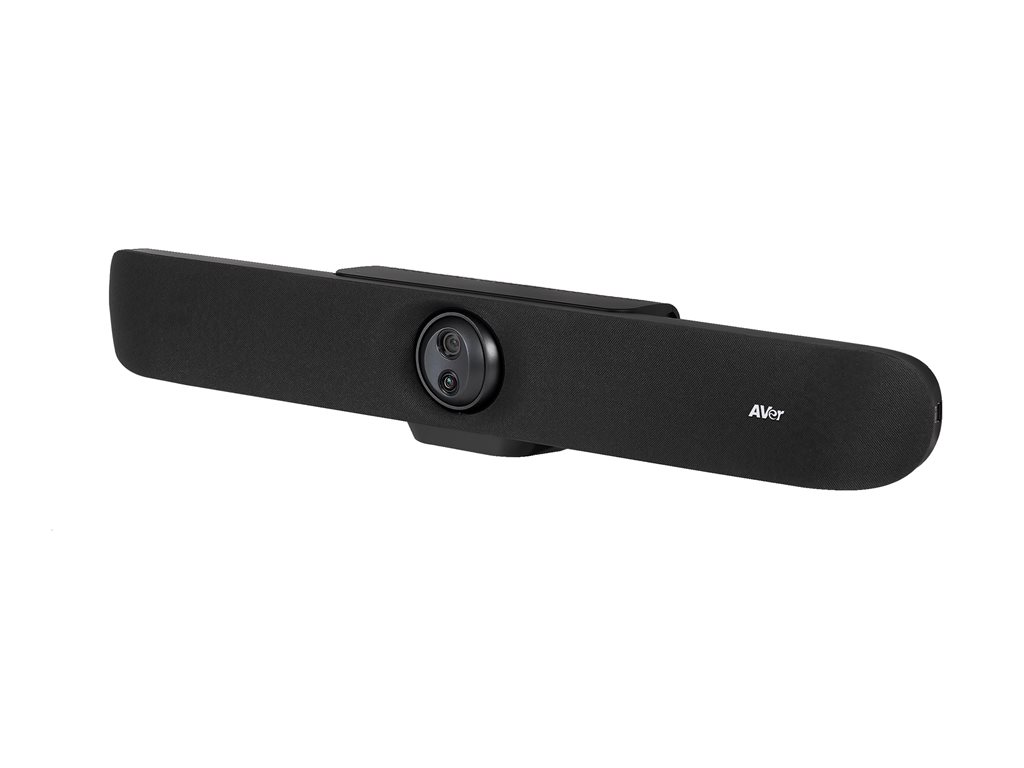

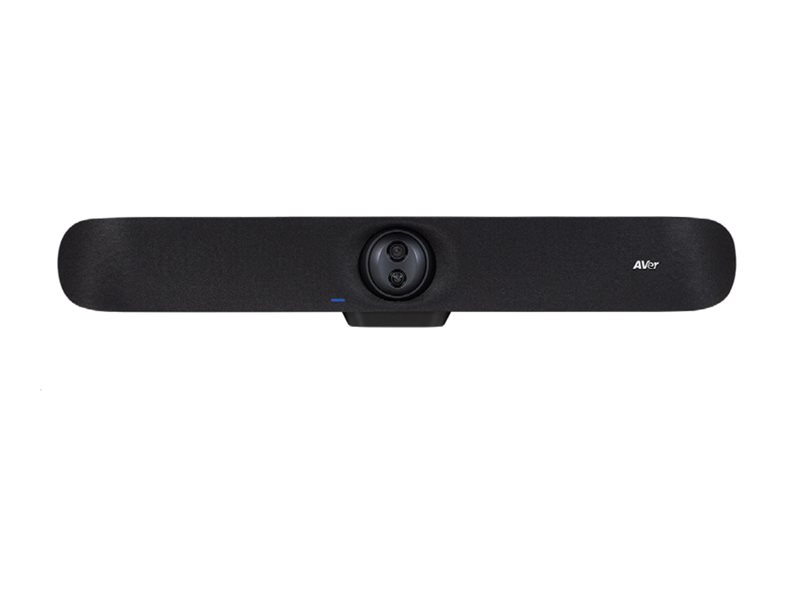

Conference camera - PTZ - bar - color - 3840 x 2160 - audio - wired - HDMI - USB 3.1 - MJPEG, H.264, YUY2, H.265, YUV - DC 12 V
| Main Specifications | |
|---|---|
| Product Description | AVer VB350 - conference camera - bar |
| Device Type | Conference camera - pan / tilt / zoom - bar |
| Audio | Yes: beam-forming microphone array |
| Camera Mount Type | Wall mount |
| Dimensions (WxDxH) | 5 in x 31.1 in x 5 in |
| Weight | 7.28 lbs |
| Connectivity Technology | Wired |
| Camera | Color |
| Optical Zoom | 18 x |
| Max Resolution | 3840 x 2160 |
| Optical Sensor Type | 1 ¦ 1 |
| Lens System | 1 x vari-focal (min distance 1 m) ¦ 1 x fixed focal (min distance 1 m) |
| Panning Range (degree) | 165 |
| Tilting Range (degree) | 101 |
| Interfaces | USB 3.1, HDMI |
| Control Interface | RS-232, VISCA |
| Cables Included | 1 - USB 3.1 Type A to Type B cable - 10 ft ¦ 1 - USB 3.1 Type A to Type C adapter |
| Voltage | AC 100-240 V, DC 12 V |
| Features | White balance, Wide Dynamic Range (WDR), auto tracking, VISCA over IP, WebEx compatible, Skype compatible, 10 preset positions, people counting, Acoustic Echo Cancellation (AEC), Skype for Business compatible, Microsoft Teams compatible, Zoom compatible, RingCentral Meetings compatible, microphone noise suppression technology, 130° field of view, SmartFrame, speaker tracking, USB video class (UVC 1.1), USB audio class (UAC 1.0), Google Meet compatible, gesture control, 16:9 aspect ratio, SmartSpeaker, Smart Gallery, 4:3 aspect ratio, XSplit compatible, PELCO D protocol support, Vidyo compatible, Fuze compatible, Intel Unite compatible, Adobe Connect compatible, CyberLink U Meeting compatible, Cisco WebEx GoToMeeting compatible, LiveOn compatible, TrueConf compatible, V-Cube compatible, vMix compatible, WebRTC compatible, Wirecast compatible, PELCO P protocol support |
| Manufacturer Warranty | 3-year warranty |
| Environmental Parameters (operating) | 32 °F - 104 °F; 20 - 80% relative humidity |
| General | |
| Device Type | Conference camera |
| Audio Support | Yes: beam-forming microphone array |
| Form Factor | Bar |
| Camera Mount Type | Wall mount |
| Connectivity Technology | Wired |
| Width | 5 in |
| Depth | 31.1 in |
| Height | 5 in |
| Weight | 7.28 lbs |
| Expansion / Connectivity | |
| Ports | Serial RS-232 - 6 pin mini-DIN ¦ USB 3.1 - 24-pin USB-C ¦ HDMI ¦ Audio line in/line out - 3.5 mm jack ¦ LAN - RJ-45 ¦ Audio expansion - RJ-45 ¦ 3 x USB 2.0 - 4 pin USB Type A |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | Remote control, wall mount bracket, drill hole template, screws, power adapter, power cable |
| Cables Included | 1 x USB 3.1 Type A to Type B cable - 10 ft ¦ 1 x USB 3.1 Type A to Type C adapter |
| Compliant Standards | Plug and Play, Zoom certification |
| Power | |
| Power Requirements | DC 12 V - 5 A |
| Power Device | Power adapter - external AC 100-240 V (50/60 Hz) |
| Software / System Requirements | |
| OS Required | Microsoft Windows 7 / 10 / 11, Apple MacOS X 14.4 or later |
| System Requirements Details | Core i5 - 3.2 GHz - RAM 4 GB |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Relative Humidity (operating) | 20 - 80% |
| Camera | |
| Type | Color - pan / tilt / zoom |
| Digital Video Format | MJPEG, H.264, YUY2, H.265, YUV |
| Max Digital Video Resolution | 3840 x 2160 |
| Digital Video Capture Resolution | 1280 x 720, 640 x 480, 1280 x 960, 800 x 600, 1920 x 1080, 640 x 360, 848 x 480, 2560 x 1440, 3264 x 1836, 1600 x 900, 800 x 448, 960 x 540, 4K |
| Features | White balance, Wide Dynamic Range (WDR), auto tracking, VISCA over IP, WebEx compatible, Skype compatible, 10 preset positions, people counting, Acoustic Echo Cancellation (AEC), Skype for Business compatible, Microsoft Teams compatible, Zoom compatible, RingCentral Meetings compatible, microphone noise suppression technology, 130° field of view, SmartFrame, speaker tracking, USB video class (UVC 1.1), USB audio class (UAC 1.0), Google Meet compatible, gesture control, 16:9 aspect ratio, SmartSpeaker, Smart Gallery, 4:3 aspect ratio, XSplit compatible, PELCO D protocol support, Vidyo compatible, Fuze compatible, Intel Unite compatible, Adobe Connect compatible, CyberLink U Meeting compatible, Cisco WebEx GoToMeeting compatible, LiveOn compatible, TrueConf compatible, V-Cube compatible, vMix compatible, WebRTC compatible, Wirecast compatible, PELCO P protocol support |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 7.8 in |
| Shipping Depth | 3.4 in |
| Shipping Height | 10.2 in |
| Shipping Weight | 16.31 lbs |
| Lens Construction | |
| Lens System | 1 x vari-focal (min distance 1 m) ¦ 1 x fixed focal (min distance 1 m) |
| Optical Zoom | 18 x |
| Image Sensor | |
| Type | 1 x ¦ 1 x |
| Interfaces | |
| Video | HDMI |
| Network Protocols | RTSP, RTMP |
| Computer Interface | USB 3.1 |
| Control Interface | RS-232, VISCA |
| Panning | |
| Range (degree) | 165 |
| Tilting | |
| Range (degree) | 101 |
