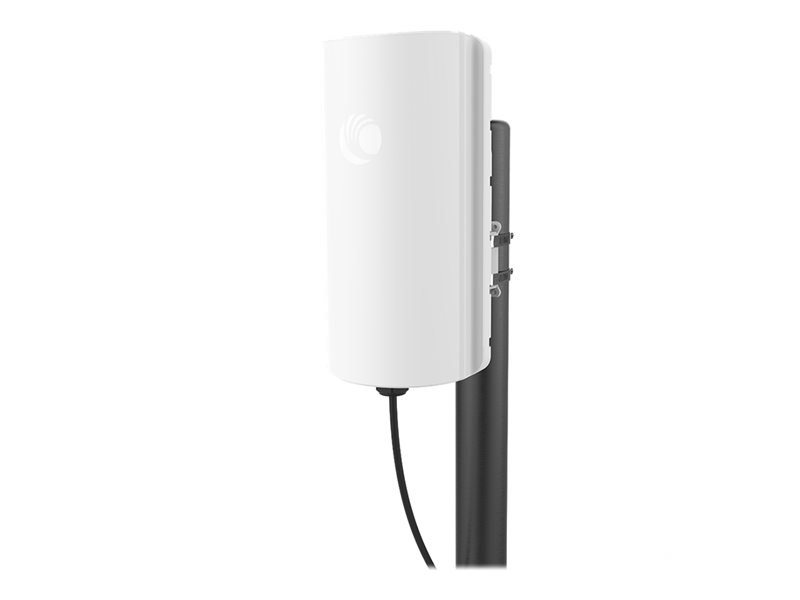

Wireless bridge - GigE - DC power - wall / pole mountable
| Main Specifications | |
|---|---|
| Product Description | Cambium Networks PMP450 MicroPoP - wireless bridge |
| Device Type | Wireless bridge |
| Form Factor | Wall / pole mountable |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Capacity | Subscribers per sector: up to 238 ¦ Subscribers per sector: 20 ¦ Frequency range: 4.9 - 5.925 GHz |
| Included Accessories | Mounting bracket |
| Power | DC 46 - 59 V |
| Dimensions (WxDxH) | 6.7 in x 3.9 in x 12.2 in |
| Weight | 4.41 lbs |
| General | |
| Device Type | Wireless bridge |
| Built-in Devices | GPS |
| Width | 6.7 in |
| Depth | 3.9 in |
| Height | 12.2 in |
| Weight | 4.41 lbs |
| Expansion / Connectivity | |
| Interfaces | 1 x 1000Base-T (PoE) - RJ-45 |
| Miscellaneous | |
| Included Accessories | Mounting bracket |
| MTBF | 40 years |
| Compliant Standards | EN 61000-4-2, EN 61000-4-5, FCC, IP67, FIPS 197, IEEE 802.3af |
| Networking | |
| Form Factor | Wall / pole mountable |
| Connectivity Technology | Wireless |
| Data Transfer Rate | 300 Mbps |
| Line Coding Format | 64 QAM, 256 QAM, QPSK, 16 QAM |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Spread Spectrum Method | OFDM |
| Network / Transport Protocol | TCP/IP, UDP/IP, ICMP/IP, FTP, HTTP, IPv4, IPv6 |
| Remote Management Protocol | Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS |
| Max Range Open Space | 2 miles |
| Capacity | Subscribers per sector: up to 238 ¦ Subscribers per sector: 20 ¦ Frequency range: 4.9 - 5.925 GHz |
| Features | Full duplex capability, auto-negotiation, VLAN support, DiffServ support, Quality of Service (QoS), 2T2R MIMO technology, VLAN Double Tagging (Q-in-Q), IPv4 and IPv6 dual stack, ARQ support, 30KV ESD Protector (contact discharge), 30KV ESD Protector (air-gap discharge) |
| Encryption Algorithm | 128-bit AES |
| Compliant Standards | IEEE 802.3, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.1ad |
| Power | |
| Voltage Required | DC 46 - 59 V |
| Power Consumption Operational | 9 Watt |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 0 - 100% |
| Antenna | |
| Antenna | External integrated |
| Directivity | Directional |
| Gain Level | 13 dBi |
