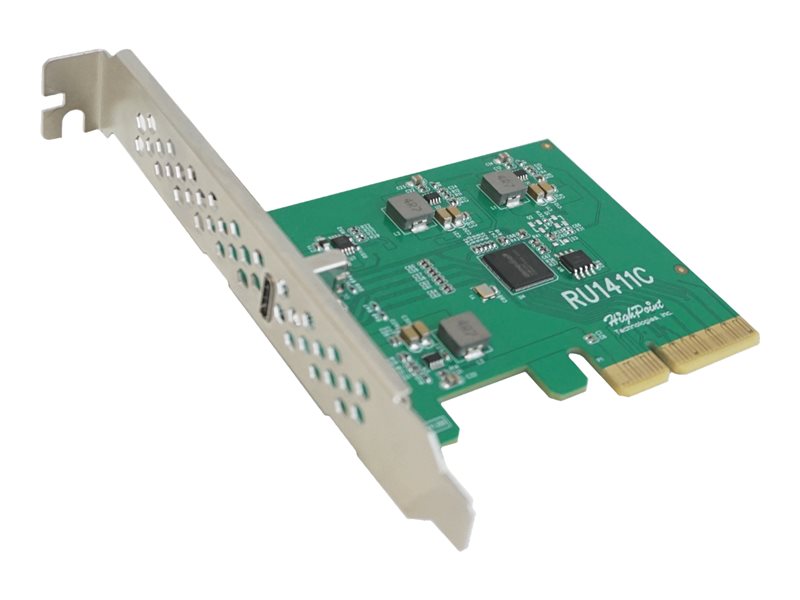

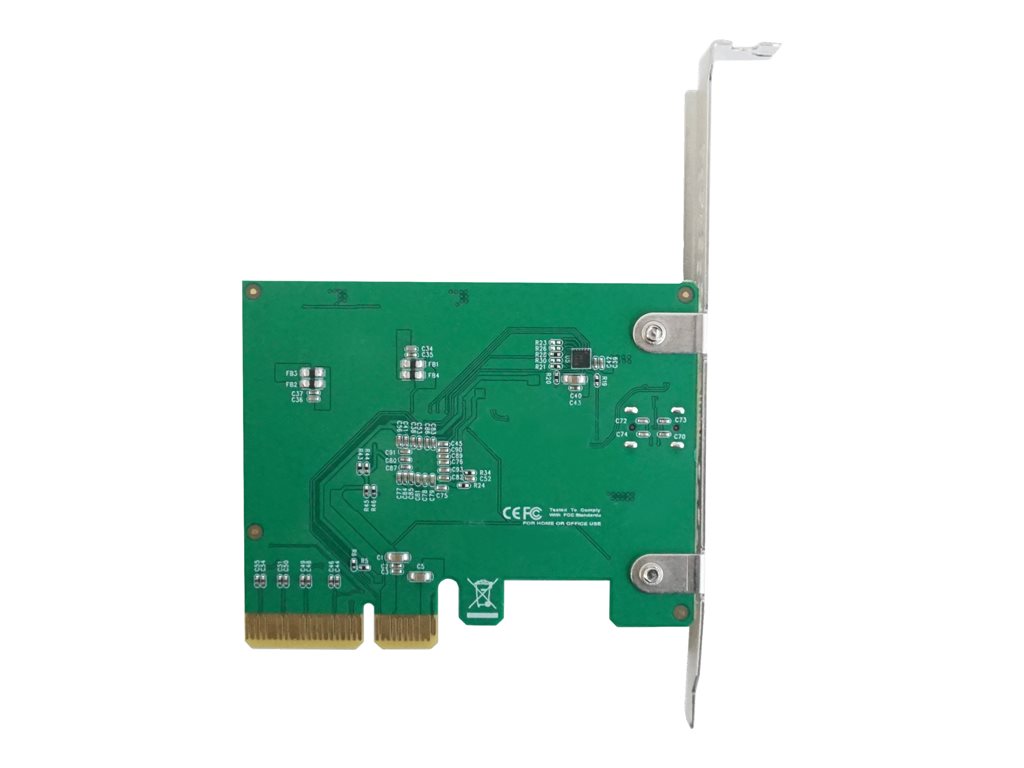

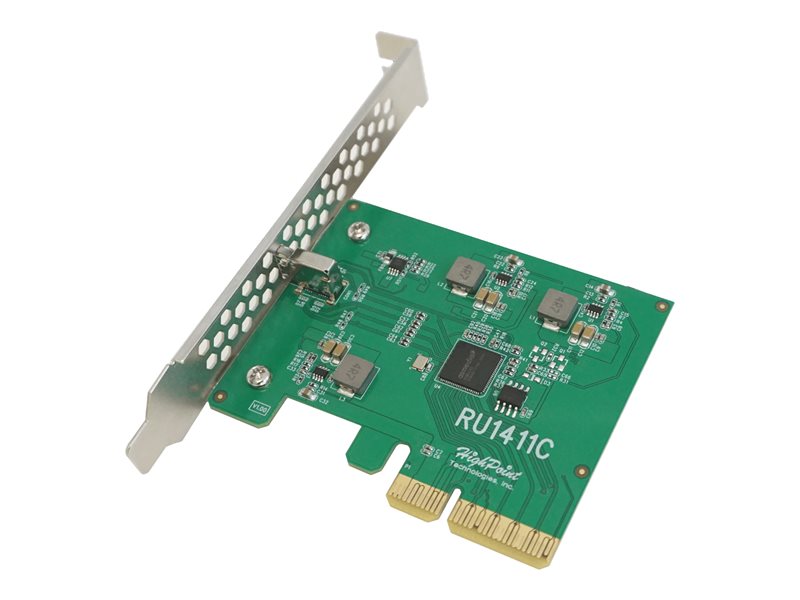

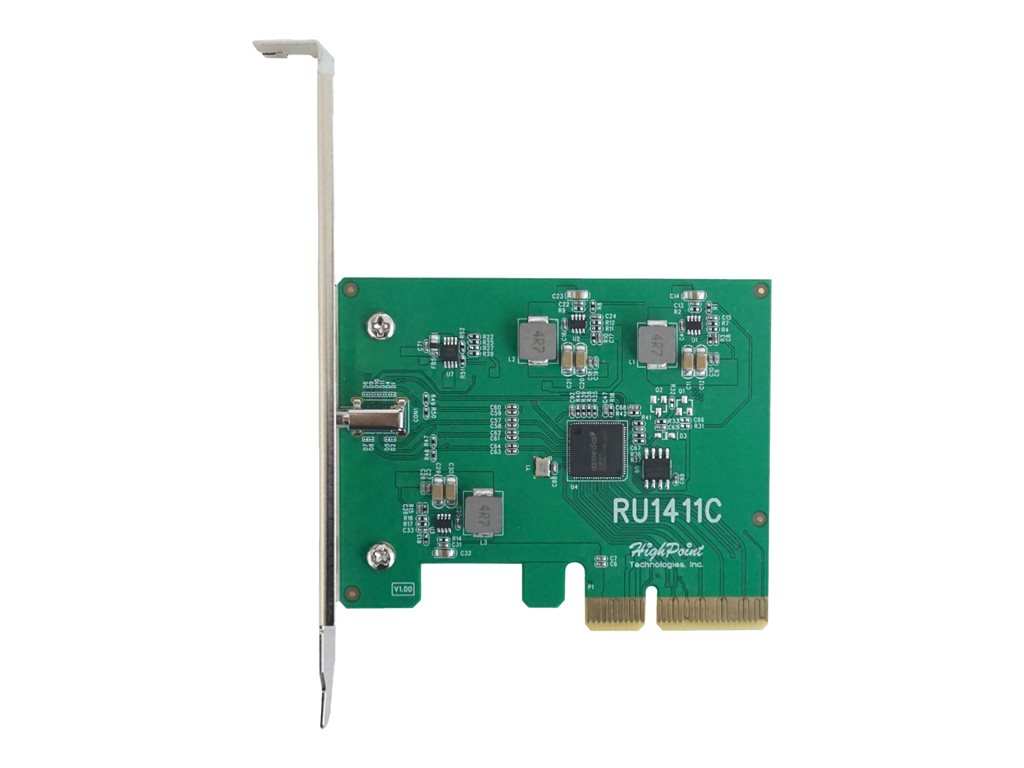

USB adapter - PCIe 3.0 x4 low profile - USB 3.2 x 1 - for RocketMate 110
| Main Specifications | |
|---|---|
| Product Description | HighPoint RocketU 1411C - USB adapter - PCIe 3.0 x4 - USB 3.2 x 1 |
| Device Type | USB adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 3.0 x4 |
| PCI Specification Revision | PCIe 3.0 |
| Ports | USB 3.2 x 1 |
| Dimensions (WxDxH) | 0.8 in x 3.1 in x 2.6 in |
| Weight | 6.74 oz |
| Data Link Protocol | USB 3.2 |
| Data Transfer Rate | 20 Gbps |
| Compliant Standards | USB 1.1, USB 2.0, USB 3.0, xHCI, USB 3.1, USB 3.2 |
| System Requirements | Microsoft Windows Server 2008 x64 Edition, Microsoft Windows Server 2012 x64 Edition, Windows 8.1 / 10, Microsoft Windows Server 2016 (64-bit), Linux Kernel 3.10 or later, Microsoft Windows Server 2022, Windows 11 |
| Manufacturer Warranty | 2-year warranty |
| Designed For | RocketMate 110 |
| General | |
| Device Type | USB adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 3.0 x4 |
| PCI Specification Revision | PCIe 3.0 |
| Expansion / Connectivity | |
| Interfaces | 1 x USB 3.2 - 24 pin USB-C |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Included Accessories | Low-profile bracket |
| MTBF | 920,585 hours |
| Compliant Standards | FCC, RoHS, WEEE, REACH |
| Networking | |
| Ports | USB 3.2 x 1 |
| Connectivity Technology | Wired |
| Data Link Protocol | USB 3.2 |
| Data Transfer Rate | 20 Gbps |
| Features | USB Attached SCSI Protocol (UASP), up to 7.5W/1.5A power per port, Thunderbolt compatible |
| Compliant Standards | USB 1.1, USB 2.0, USB 3.0, xHCI, USB 3.1, USB 3.2 |
| Power | |
| Power Consumption Operational | 1.56 Watt |
| Software / System Requirements | |
| OS Required | Microsoft Windows Server 2008 x64 Edition, Microsoft Windows Server 2012 x64 Edition, Windows 8.1 / 10, Microsoft Windows Server 2016 (64-bit), Linux Kernel 3.10 or later, Microsoft Windows Server 2022, Windows 11 |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 113 °F |
| Dimensions & Weight | |
| Width | 0.8 in |
| Depth | 3.1 in |
| Height | 2.6 in |
| Weight | 6.74 oz |
| Compatibility Information | |
| Designed For | HighPoint RocketMate 110 |
