Motherboard - ATX - LGA1200 Socket - W580 Chipset - USB-C Gen 2x2, USB 3.2 Gen 2, USB 3.2 Gen 1 - Gigabit LAN, 2.5 Gigabit LAN - onboard graphics - HD Audio
| Main Specifications | |
|---|---|

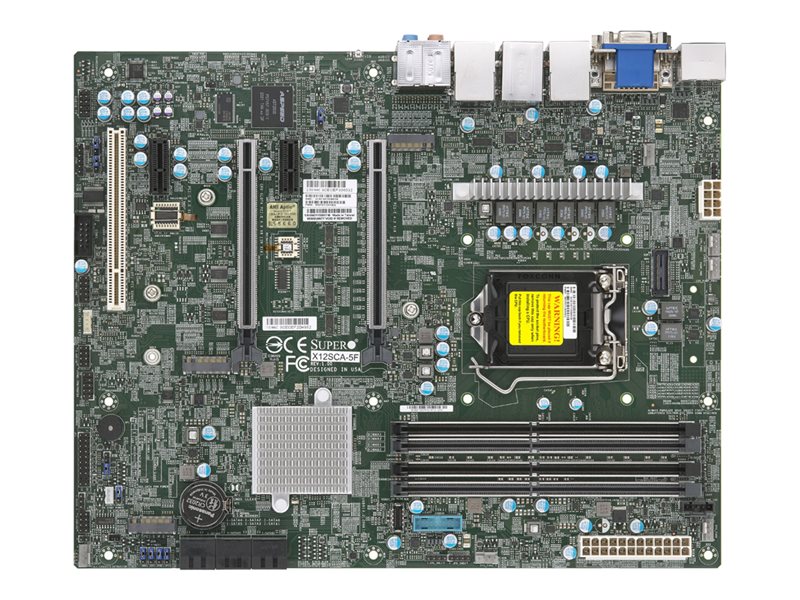

| Product Description | SUPERMICRO X12SCA-5F - motherboard - ATX - LGA1200 Socket - W580 |
| Product Type | Motherboard - ATX |
| Chipset Type | Intel W580 |
| Processor Socket | 1 x LGA1200 Socket |
| Compatible Processors | Pentium, Celeron, Core i5, Core i3, Core i7, Core i9, Xeon W (supports CPUs with up to 8 cores, Maximum TDP 125 Watt) |
| Max RAM Size | 128 GB |
| RAM Supported | 4 DIMM slots - DDR4, non-ECC, ECC, unbuffered |
| Storage Ports | 4 x SATA-600 (RAID), 3 x M.2 |
| USB / FireWire Ports | 1 x USB-C Gen 2x2 + 4 x USB 3.2 Gen 2 + 2 x USB 2.0 + (2 x USB 3.2 Gen 1 via headers) |
| Graphics | ASPEED AST2500 |
| Audio | HD Audio |
| LAN | Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Product Type | Motherboard - ATX |
| Chipset Type | Intel W580 |
| Processor Socket | LGA1200 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | Pentium, Celeron, Core i5, Core i3, Core i7, Core i9, Xeon W (supports CPUs with up to 8 cores, Maximum TDP 125 Watt) |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin (1.2 V) ¦ 2 x PCIe 4.0 x16 (dual x8 mode; single card: x16 mode) ¦ 2 x PCIe 3.0 x1 ¦ 1 x PCI (5 V) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 3.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 ¦ PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 |
| Interfaces | 1 x LAN (Gigabit Ethernet) ¦ 1 x management ¦ 1 x VGA ¦ 1 x DisplayPort ¦ 1 x DVI-D ¦ 1 x HDMI ¦ 4 x USB 3.2 Gen 2 ¦ 1 x USB-C Gen2x2 ¦ 2 x USB 2.0 ¦ 1 x LAN (2.5Gigabit Ethernet) |
| Internal Interfaces | 2 x USB 3.2 Gen 1 - header ¦ 1 x serial - header |
| Power Connectors | 8-pin ATX12V connector, 24-pin main power connector |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts - 1 year ¦ Limited warranty - labor - 3 years |
| Miscellaneous | |
| Included Accessories | I/O back plate |
| Cables Included | 4 x Serial ATA cable |
| Compliant Standards | Plug and Play |
| Width | 12 in |
| Depth | 9.6 in |
| Package Type | Retail |
| Audio | |
| Type | HD Audio |
| Audio Codec | Realtek ALC888S |
| Compliant Standards | High Definition Audio |
| Features | |
| BIOS Type | AMI |
| BIOS Features | ACPI 6.0 support, SMBIOS 3.0 support, IPMI 2.0 support, power failure recovery (AC loss resume) |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage |
| Sleep / Wake Up | Wake on LAN (WOL) |
| Hardware Features | WatchDog Timer, chassis intrusion detection |
| LAN | |
| Network Controller | Intel I225-LM / Intel I219LM |
| Network Interfaces | Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Graphics | |
| Graphics Controller | ASPEED AST2500 |
| Supported RAM | |
| Max Size | 128 GB |
| Technology | DDR4 |
| Bus Clock | 3200 MHz |
| Supported RAM Integrity Check | Non-ECC, ECC |
| Registered or Buffered | Unbuffered |
