LDE Series LED video wall - Direct View LED - digital signage - 1920 x 1080 163" - 144 x - 3-in-1 SMD - Direct View LED
| Main Specifications | |
|---|---|
| Product Description | ViewSonic LDE163G-182 LDE Series LED video wall - Direct View LED - for digital signage |
| Product Type | LED video wall - Direct View LED |
| Diagonal Size | 163" |
| Commercial Use | Yes - digital signage |
| Number of Screens | 144 |
| Video Wall Resolution | 1920 x 1080 |
| Frame Rate & Enhancement Technology | 3840 Hz Refresh Rate, 56-85 Hz Vertical Scan Rate |
| Video Interface | HDMI |
| HDMI Ports Qty | 2 ports |
| Connectivity | LAN |
| PC Interface | USB 3.0 |
| LCD Backlight Technology | Direct View LED |
| Image Aspect Ratio | 16:9 |
| TV Tuner | No tuner |
| Speaker System | 2 speakers |
| Video Wall Display Unit | 3-in-1 SMD |
| USB | Yes |
| Included Accessories | Remote control, LED module x10, 3 in 1 hub board x1, maintenance tool |
| Voltage | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 770 Watt |
| Dimensions (WxDxH) - panel without mount | 142.2 in x 2 in x 80.6 in |
| Weight | 337.3 lbs |
| General | |
| Product Type | LED video wall - Direct View LED |
| Power Consumption (Max) | 2332 Watt |
| Power Consumption Operational | 770 Watt |
| Commercial Use | Yes - digital signage |
| Series | LDE Series |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Video Interface | HDMI |
| HDMI Ports Qty | 2 ports |
| PC Interface | USB 3.0 |
| Modes | Landscape mode |
| Design | Ultra-Slim Design, Bezel-less Design, modular design |
| Dimensions | Panel without mount |
| Width | 142.2 in |
| Depth | 2 in |
| Height | 80.6 in |
| Weight | 337.3 lbs |
| Miscellaneous | |
| Included Accessories | Remote control, LED module x10, 3 in 1 hub board x1, maintenance tool |
| Cables Included | USB-C to HDMI cable ¦ CAT5E network cable |
| Compliant Standards | IP54 front, IK06 front, Plug and Play, Q-SYS-certified |
| Power | |
| Input Voltage | AC 100-240 V (50/60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Display | |
| Image Aspect Ratio | 16:9 |
| Frame Rate & Enhancement Technology | 3840 Hz Refresh Rate, 56-85 Hz Vertical Scan Rate |
| LCD Backlight Technology | Direct View LED |
| Color Temperature | 3000 - 10000K |
| Image Contrast Ratio | 6500:1 |
| Brightness | 600 cd/m² |
| Viewing Angle | 170° |
| Viewing Angle (Vertical) | 170° |
| Additional Features | 99% screen-to-body ratio, LVDS FFC Cabling, LAN Control, 100 brightness adjustable levels, Glue-on-Board (GOB) surface treatment technology, pre-built control box, copper bonding wire, 31-94 kHz horizontal frequency |
| Connections | |
| Connector Type | 2 x HDMI input ¦ HDMI output ¦ USB 3.0 - external ¦ USB 3.0 - internal ¦ LAN ¦ Audio line-out ¦ RS-232 ¦ IR receiver |
| Audio System | |
| Speaker System | 2 speakers |
| Output Power / Total | 16 Watt |
| Speakers | 2 x speaker - 8 Watt |
| Dimensions & Weight (Shipping) | |
| Width (Shipping) | 89.8 in |
| Depth (Shipping) | 47.2 in |
| Height (Shipping) | 42.5 in |
| Weight (Shipping) | 641.54 lbs |
| Network & Internet Multimedia | |
| Connectivity | LAN |
| Dimensions & Weight Details | |
| Dimensions & Weight Details | Panel without mount - 142.2 in x 2 in x 80.6 in x 337.3 lbs ¦ Panel with mount - 142.2 in x 2.4 in x 80.6 in |
| Stands & Mounts | |

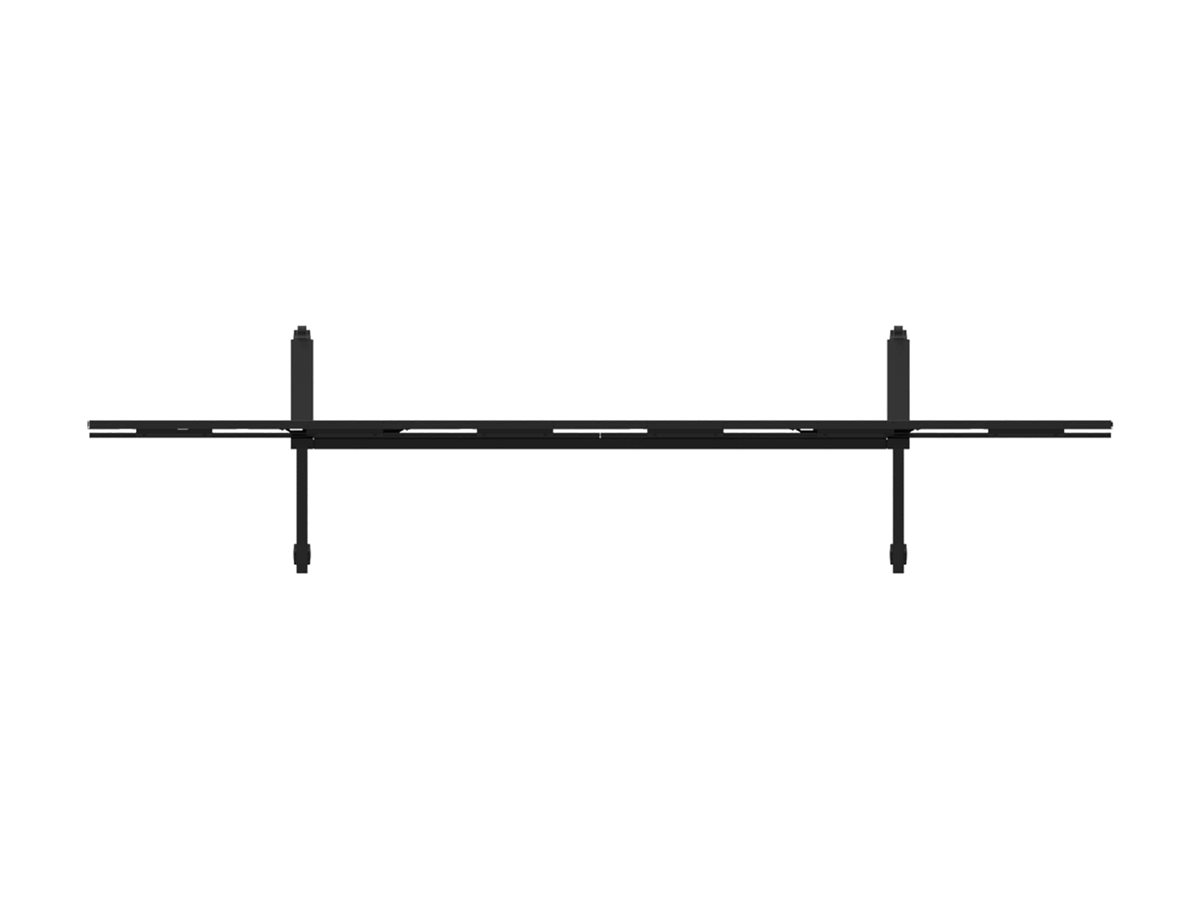

| Wall Mount Included | Yes |
| Media Player | |
| USB Port | Yes |
| Video Wall Display Unit | |
| Pixel Pitch | 1.88 mm |
| LED Type | 3-in-1 SMD |
| LED Lifetime | 100000 hours |
| Maintenance | Front |
| Video Wall | |
| Resolution | 1920 x 1080 |
| Diagonal Size | 163" |
| Number of Screens | 144 |
