Conference camera - PTZ - indoor, outdoor - color - 8.6 MP - 3840 x 2160 - motorized - HDMI - HDBaseT - DC 48 V / PoE+ - TAA Compliant - with Vaddio OneLINK Bridge
| Main Specifications | |
|---|---|
| Product Description | Vaddio RoboSHOT Elite Series 12E HDBT - conference camera - TAA Compliant - with Vaddio OneLINK Bridge |
| Device Type | Conference camera - pan / tilt / zoom - indoor, outdoor |
| Bundled with | Vaddio OneLINK Bridge |
| Camera Mount Type | Wall mount |
| Dimensions (WxDxH) | 7.1 in x 6.7 in x 6.9 in |
| Weight | 4.85 lbs |
| Color | Black |
| Connectivity Technology | Wired |
| Camera | Color |
| Optical Zoom | 12 x |
| Max Resolution | 3840 x 2160 |
| Frame Rate (max) | 30 frames per second |
| Video Modes | 2160/29.97p, 1080/25p, 1080/29.97i, 1080/29.97PsF, 1080/50i, 1080/50p, 1080/59.94i, 1080/59.94p, 720/50p, 720/59.94p |
| Optical Sensor Type | Exmor R CMOS - 1/2.5" - 8.6 MP |
| Focal Length Control | Motorized zoom |
| Focal Length | 4.4 mm - 88.4 mm |
| Focus Adjustment | Automatic, manual (min distance 3.1 in) |
| Lens Iris | F/2.0-3.8 |
| Panning Range (degree) | -150 to +150 |
| Tilting Range (degree) | -30 to +90 |
| Interfaces | HDMI, HDBaseT |
| Voltage | DC 48 V / PoE+ |
| Features | Invertible, auto white balance, manual white balance, Q-SYS technology ready, Backlight Compensation (BLC), auto gain control, manual gain control, Enhanced Wide Dynamic Range, Spotlight Compensation Mode, noise reduction, 256 preset positions, silent BLDC direct drive motors, Tri-Synchronous Motion, 16:9 aspect ratio |
| TAA Compliant | Yes |
| Manufacturer Warranty | 3-year warranty |
| Environmental Parameters (operating) | 32 °F - 104 °F; 20 - 80% RH (non-condensing) relative humidity |
| General | |
| Device Type | Conference camera |
| Camera Mount Type | Wall mount |
| Connectivity Technology | Wired |
| Width | 7.1 in |
| Depth | 6.7 in |
| Height | 6.9 in |
| Weight | 4.85 lbs |
| Localization | North America |
| Bundled with | Vaddio OneLINK Bridge |
| Expansion / Connectivity | |

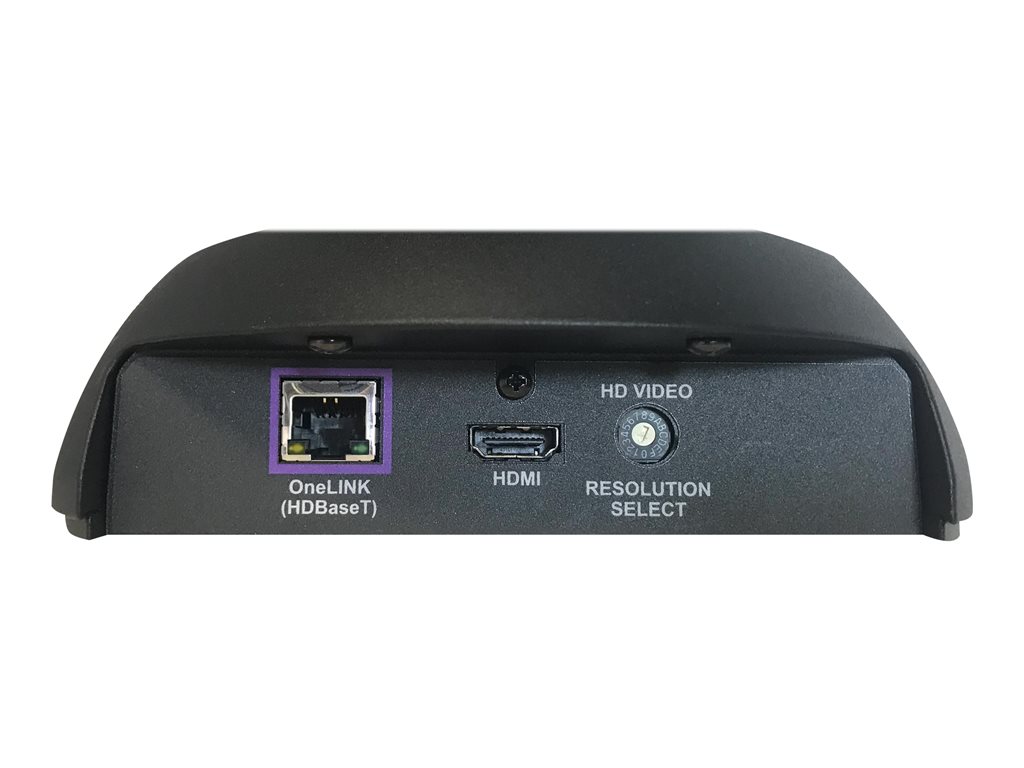

| Ports | HDMI ¦ HDBase-T - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | Wall mount kit, PoE+ injector, power cable |
| TAA Compliant | Yes |
| Compliant Standards | FCC |
| Color | Black |
| Power | |
| Power Requirements | DC 48 V / PoE+ |
| Power Device | Power adapter - external |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Relative Humidity (operating) | 20 - 80% RH (non-condensing) |
| Camera | |
| Type | Color - pan / tilt / zoom - indoor, outdoor |
| Max Digital Video Resolution | 3840 x 2160 |
| Video Modes | 2160/29.97p, 1080/25p, 1080/29.97i, 1080/29.97PsF, 1080/50i, 1080/50p, 1080/59.94i, 1080/59.94p, 720/50p, 720/59.94p |
| Exposure Range | 1/1 sec - 1/10000 sec |
| Digital Video Capture Resolution | 3840 x 2160 |
| Frame Rate (max) | 30 frames per second |
| Features | Invertible, auto white balance, manual white balance, Q-SYS technology ready, Backlight Compensation (BLC), auto gain control, manual gain control, Enhanced Wide Dynamic Range, Spotlight Compensation Mode, noise reduction, 256 preset positions, silent BLDC direct drive motors, Tri-Synchronous Motion, 16:9 aspect ratio |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 20 in |
| Shipping Depth | 15 in |
| Shipping Height | 19 in |
| Shipping Weight | 14.99 lbs |
| Lens Construction | |
| Type | Motorized zoom |
| Optical Zoom | 12 x |
| Focal Length | 4.4 mm - 88.4 mm |
| Lens Iris | F/2.0-3.8 |
| Focus Adjustment | Automatic, manual |
| Min Focus Distance | 3.1 in |
| Horizontal Field of View (degree) | 6.8 - 70.2 |
| Image Sensor | |
| Type | 8.6 MP Exmor R CMOS 1/2.5" |
| Interfaces | |
| Video | HDMI |
| Network Interface | HDBaseT |
| Network Protocols | Telnet |
| Panning | |
| Range (degree) | -150 to +150 |
| Speed (degree/sec) | Up to 120 |
| Tilting | |
| Range (degree) | -30 to +90 |
| Speed (degree/sec) | Up to 120 |
