Live streaming camera - indoor - color - 8.4 MP - 1920 x 1080 - motorized - audio - HDMI, 3G-SDI - GbE - USB-C - H.264, H.265, MJPEG, YUY2, AVC, HEVC - DC 12 V / PoE
| Main Specifications | |
|---|---|

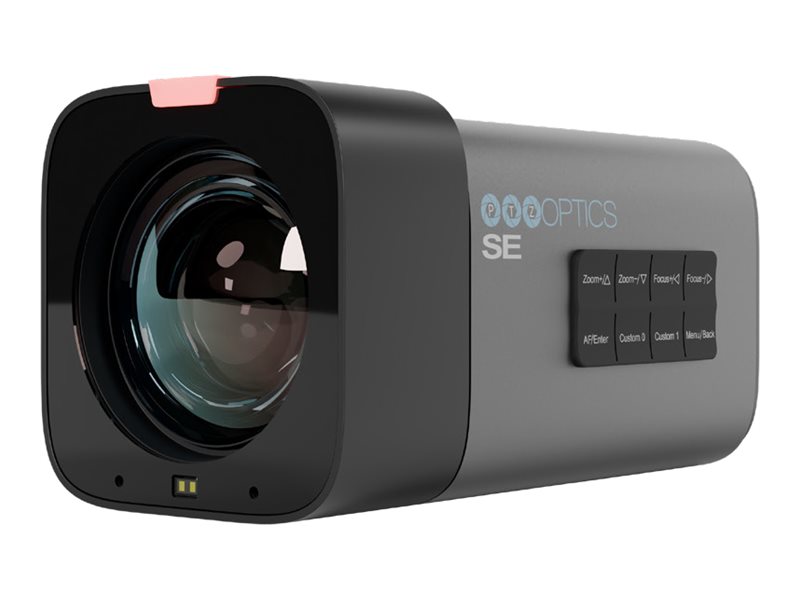

| Product Description | PTZOptics Studio SE PT20X-STUDIO-SE-GY-G3 - live streaming camera |
| Device Type | Live streaming camera - fixed - indoor |
| Audio | Yes: built-in microphone |
| Dimensions (WxDxH) | 3 in x 5.7 in x 3.1 in |
| Weight | 22.57 oz |
| Color | Gray |
| Connectivity Technology | Wired |
| Camera | Color |
| Optical Zoom | 20 x |
| Max Resolution | 1920 x 1080 |
| Frame Rate (max) | 60 frames per second |
| Video Modes | 1080p, 1080i, 720p |
| Optical Sensor Type | CMOS - 1/2.8" - 8.4 MP |
| Minimum Illumination | 0.5 lux F1.8 - AGC on |
| Focal Length Control | Motorized zoom |
| Focal Length | 4.7 mm - 94 mm |
| Lens Iris | F/1.6-3.6 |
| Interfaces | USB-C, HDMI, 3G-SDI, Ethernet 10Base-T/100Base-TX/1000Base-T |
| Control Interface | RS-485 |
| Cables Included | 1 - USB-C to USB-A cable - external |
| Voltage | DC 12 V / PoE |
| Features | 67.8° field of view, aluminum/plastic housing, image flip, image freeze, image mirror, Multicast Streaming, 0.1° preset accuracy, 255 preset positions, NDI|HX3 technology, Scalable Video Coding (SVC), USB video class (UVC 1.1), auto tracking, auto exposure control, tally light |
| Manufacturer Warranty | 5-year warranty |
| Environmental Parameters (operating) | 14 °F - 104 °F; 10 - 80% relative humidity |
| General | |
| Device Type | Live streaming camera |
| Audio Support | Yes: built-in microphone |
| Connectivity Technology | Wired |
| Width | 3 in |
| Depth | 5.7 in |
| Height | 3.1 in |
| Weight | 22.57 oz |
| Expansion / Connectivity | |

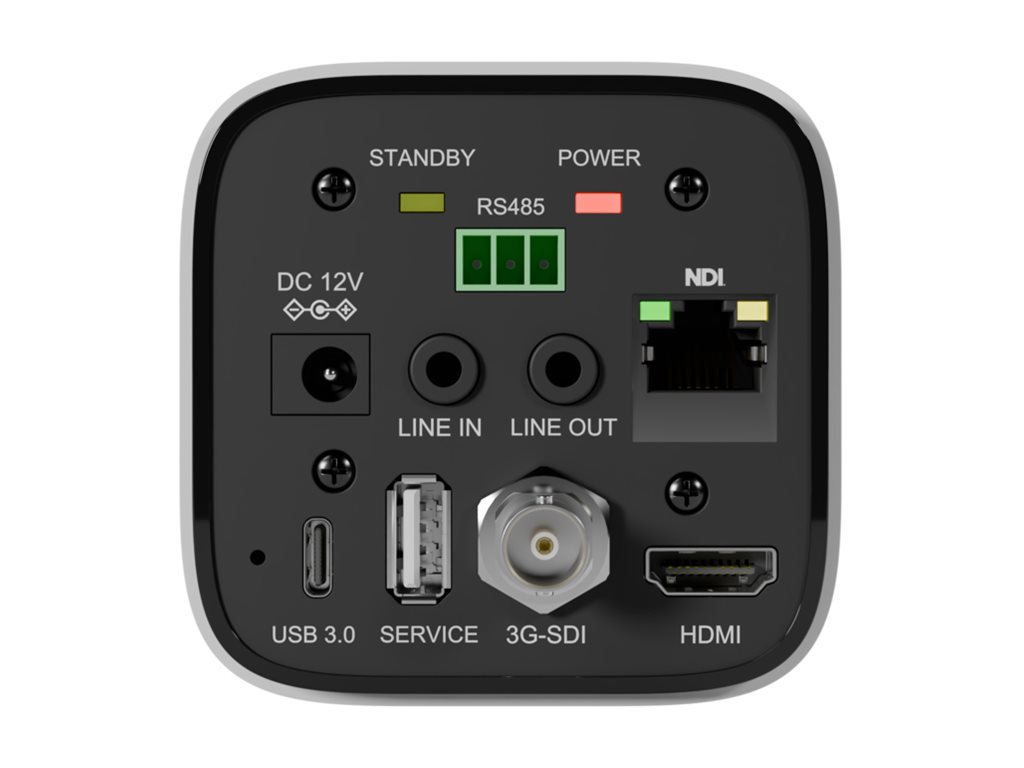

| Ports | HDMI - HDMI Type A ¦ 3G-SDI - BNC ¦ Audio line in - 3.5 mm stereo jack ¦ USB 3.0 - 24-pin USB-C ¦ NDI/power - RJ-45 ¦ Audio line out - 3.5 mm stereo jack ¦ Serial RS-485 - terminal block ¦ USB - 4 pin USB Type A |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Included Accessories | Lens cap, remote control, 2 AAA batteries |
| Cables Included | 1 x USB-C to USB-A cable - external |
| Compliant Standards | NDAA Section 889, IEEE 802.3at |
| Color | Gray |
| Power | |
| Power Requirements | DC 12 V / PoE - 2 A |
| Power Device | Power adapter 18 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 104 °F |
| Relative Humidity (operating) | 10 - 80% |
| Camera | |
| Type | Color - fixed - indoor |
| Digital Video Format | H.264, H.265, MJPEG, YUY2, AVC, HEVC |
| Max Digital Video Resolution | 1920 x 1080 |
| Video Modes | 1080p, 1080i, 720p |
| Digital Zoom | 16 |
| Exposure Range | 1/30 sec - 1/10000 sec |
| Minimum Illumination | 0.5 lux F1.8 - AGC on |
| Digital Video Capture Resolution | 1280 x 720, 1920 x 1080 |
| Frame Rate (max) | 60 frames per second |
| Features | 67.8° field of view, aluminum/plastic housing, image flip, image freeze, image mirror, Multicast Streaming, 0.1° preset accuracy, 255 preset positions, NDI|HX3 technology, Scalable Video Coding (SVC), USB video class (UVC 1.1), auto tracking, auto exposure control, tally light |
| Lens Construction | |
| Type | Motorized zoom |
| Optical Zoom | 20 x |
| Focal Length | 4.7 mm - 94 mm |
| Lens Iris | F/1.6-3.6 |
| Horizontal Field of View (degree) | 3.5 - 60.7 |
| Vertical Field of View (degree) | 1.9 - 34.1 |
| Image Sensor | |
| Type | 8.4 MP CMOS 1/2.8" |
| Interfaces | |
| Video | HDMI, 3G-SDI |
| Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols | TCP/IP, UDP, HTTP, RTSP, RTMP, ONVIF, NDI HX3, SRT, RTMPS |
| Computer Interface | USB-C |
| Control Interface | RS-485 |
