Server - ultra micro tower 1-way - 1 x Xeon 6315P / up to 5.2 GHz - RAM 16 GB - SATA - non-hot-swap 3.5" bay(s) - no HDD - Gigabit Ethernet - no OS - monitor: none - Smart Choice
| Main Specifications | |
|---|---|
| Product Description | HPE ProLiant MicroServer Gen11 - ultra micro tower Xeon 6315P 2.8 GHz - 16 GB - no HDD |
| Type | Server - ultra micro tower |
| Localization | Region: North America |
| Server Scalability | 1-way |
| Processor | 1 x Intel Xeon 6315P / 2.8 GHz (up to 5.2 GHz, (Quad-Core) |
| Processor Main Features | Intel Turbo Boost Technology 2, Intel Turbo Boost Max 3.0 |
| Cache Memory | 12 MB |
| Cache Per Processor | 12 MB |
| RAM | 16 GB (installed) / 128 GB (max) - DDR5 SDRAM - ECC |
| Storage Controller | SATA (Intel VROC SATA Software RAID) |
| Server Storage Bays | Non-hot-swap 3.5" |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| Video Memory | 16 MB |
| Networking | 1GbE |
| Power | (50/60 Hz) |
| OS Provided | No operating system |
| Dimensions (WxDxH) | 10.3 in x 9.8 in x 6.1 in |
| Weight | 18.78 lbs |
| Manufacturer Selling Program | HPE Smart Choice |
| Manufacturer Warranty | Limited warranty - parts and labor - 1 year - on-site - response time: next business day |
| General | |
| Type | Server |
| Product Form Factor | Ultra micro tower |
| Built-in Devices | LED panel |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Server Scalability | 1-way |
| Internal Bays Qty | 4 |
| Localization | Region: North America |
| Expansion / Connectivity | |
| Bays | 4 (total) / 2 (free) x internal 3.5" LFF |
| Slots | 1 (total) / 1 (free) x PCIe 5.0 x16 - low-profile ¦ 1 (total) / 1 (free) x PCIe 4.0 x8 - low-profile (x4 mode) |

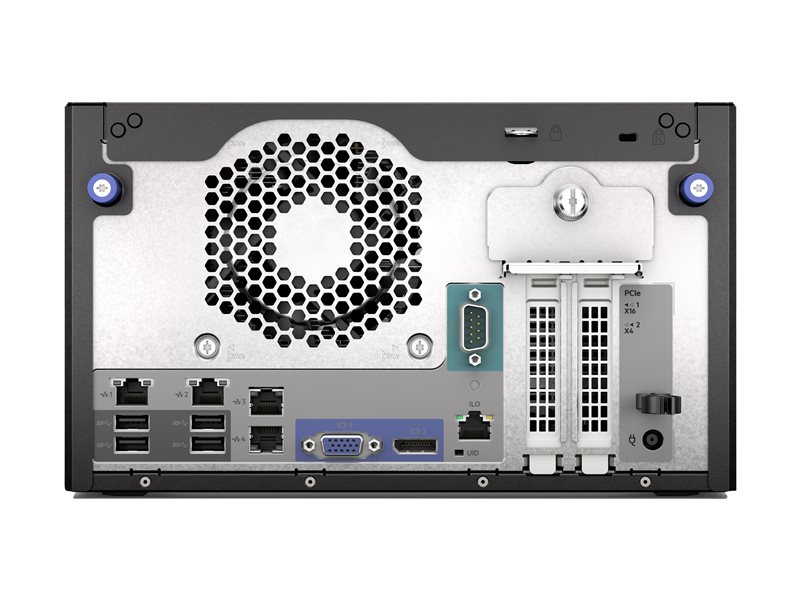

| Interfaces | 1 x VGA (1 rear) ¦ 1 x DisplayPort 1.1a (1 rear) ¦ 4 x USB 3.2 Gen 1 - Type A (4 rear) ¦ 2 x USB 3.2 Gen 2 (2 in front) ¦ 4 x LAN (Gigabit Ethernet) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 1 year - on-site - response time: next business day |
| Miscellaneous | |
| Included Accessories | Non-redundant system fan |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately), padlock eye |
| Security Slot Type | Kensington security slot |
| Compliant Standards | ACPI 6.3, PCIe 5.0, PCIe 4.0, EMC Class B, SMBIOS 3.2, UEFI 2.9, Redfish API, AES, Triple DES, TLS v1.2, Active Directory v1.0, ASHRAE Class A3, ASHRAE Class A4, FIPS 140-2, FCC Class B certified, CISPR 32, EN 55032, EN55024, FCC CFR47 Part 15, ICES-003, CNS 13438, GB 9254, K32, K24, EN 61000-3-2, EN 61000-3-3, DMTF, WEEE 2012/19/EU |
| Manufacturer Selling Program | HPE Smart Choice |
| RAM | |
| Installed Size | 16 GB (installed) / 128 GB (max) |
| Technology | DDR5 SDRAM - ECC |
| Effective Memory Speed | 4400 MT/s |
| Rated Memory Speed | 4400 MT/s |
| Form Factor | DIMM 288-pin |
| Slots | 4 (total) / 3 (empty) |
| Features | HPE Standard Memory, unbuffered |
| Configuration Features | 1 x 16 GB |
| Networking | |
| Ethernet Ports | 4 x Gigabit Ethernet |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Protocol | SNMP 3, IPMI 2.0, SMASH CLP |
| Remote Management Controller | Integrated Lights-Out 6 |
| Features | ACPI support, PXE support, Wake on LAN (WoL) |
| Power | |
| Device Type | Power adapter |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Provided | 180 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 8 - 90% RH (non-condensing) |
| Storage Controller | |
| Type | SATA |
| Storage Controller Name | Intel VROC SATA Software RAID |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 10 |
| Cache Memory | |
| Installed Size | 12 MB |
| Cache Per Processor | 12 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Video Memory | 16 MB |
| Video Interfaces | DisplayPort, VGA |
| Operating System / Software | |
| OS Provided | No operating system |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Width | 10.3 in |
| Depth | 9.8 in |
| Height | 6.1 in |
| Weight | 18.78 lbs |
| Processor / Chipset | |
| CPU | Intel Xeon 6315P |
| Clock Speed | 2.8 GHz |
| Max Turbo Speed | 5.2 GHz |
| Number of Cores | Quad-Core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| CPU Upgradability | Upgradable |
| Processor Main Features | Intel Turbo Boost Technology 2, Intel Turbo Boost Max 3.0 |
| Chipset Type | Intel C262 |
