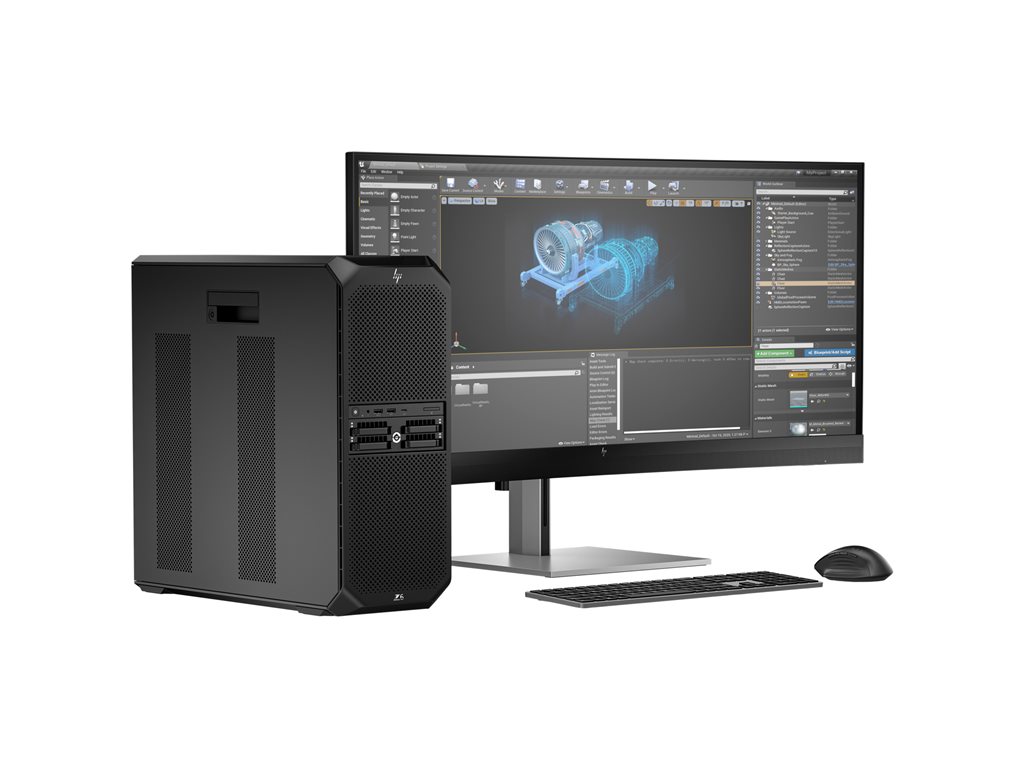

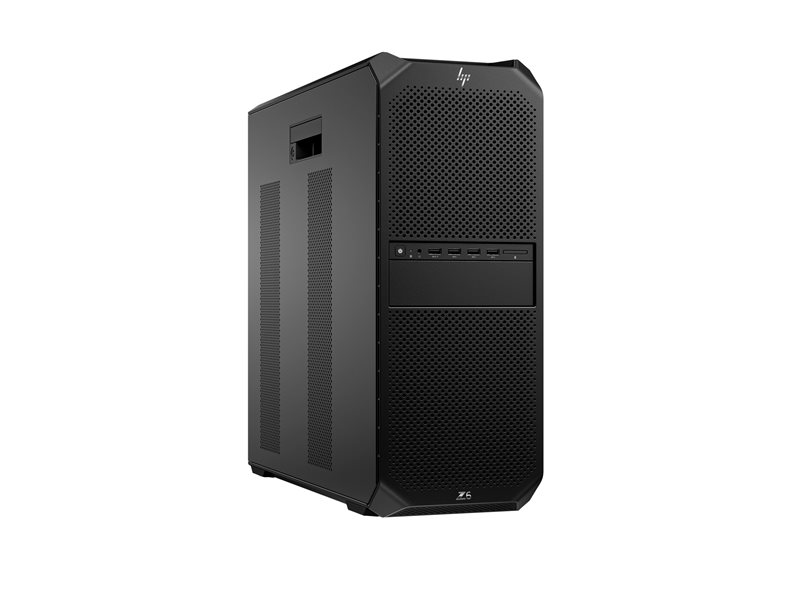

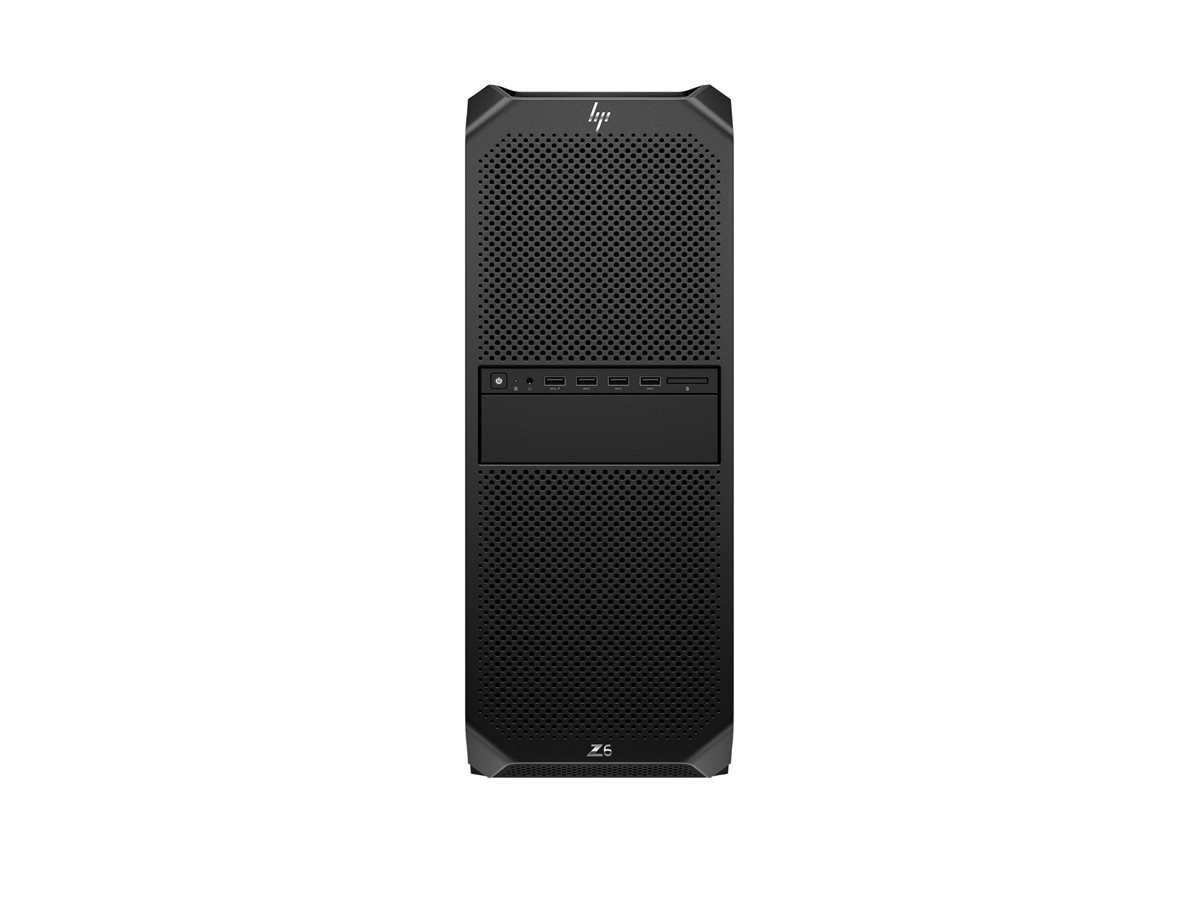

AI Workstation - tower 4U - 1 x Ryzen ThreadRipper PRO 9975WX / up to 5.4 GHz - RAM 64 GB - SSD 1 TB - SED, HP Z Turbo Drive, NVMe, TLC - no graphics - Gigabit Ethernet - Win 11 Pro - monitor: none - keyboard: US - black - Smart Buy - with HP 3 years Onsite Care Hardware Support for Workstations - with HP Wolf Pro Security Edition (1 year)
| Main Specifications | |
|---|---|
| Product Description | HP Workstation Z6 G5 A - tower - AI Workstation - Ryzen ThreadRipper PRO 9975WX - 64 GB - SSD 1 TB - US - with HP Wolf Pro Security Edition (1 year) |
| Type | Workstation - tower - AI Workstation |
| Bundled Services | HP 3 years Onsite Care Hardware Support for Workstations |
| Height (Rack Units) | 4U |
| Localization | Language: English / region: United States |
| Processor | 1 x AMD Ryzen ThreadRipper PRO 9975WX (up to 5.4 GHz, (32-core) |
| Processor Main Features | 64 Threads |
| Cache Memory | 128 MB L3 cache |
| Cache Per Processor | 128 MB |
| RAM | 64 GB DDR5 SDRAM - ECC |
| Storage Controller | SATA (SATA 6Gb/s) |
| Hard Drive | SSD 1 TB - PCI Express 4.0 - M.2 - Self-Encrypting Drive, HP Z Turbo Drive, NVM Express (NVMe), triple-level cell (TLC) |
| Optical Storage | No optical drive |
| Graphics Controller | No graphics |
| Networking | 1GbE |
| Keyboard | US |
| OS Provided | Windows 11 Pro |
| Software Included | HP Remote Graphics Software, HP Support Assistant, HP Performance Advisor, HP PC Hardware Diagnostics UEFI, HP Secure Erase, HP BIOSphere, HP BIOS Configuration Utility (free download), HP Driver Packs, HP Image Assistant, HP System Software Manager (free download), HP Sure Click, HP Sure Run, HP Sure Recover, HP Manageability Integration Kit, HP Sure Sense, HP Sure Admin, HP Smart Support, HP Platform Certificate, HP PC Hardware Diagnostics Windows, HP Services Scan, HP Data Science Stack Manager, HP Sure Start, HP Anyware Pro |
| Color | Black |
| Dimensions (WxDxH) | 6.7 in x 18.3 in x 17.5 in |
| Weight | 29.1 lbs |
| Manufacturer Selling Program | HP Smart Buy |
| Environmental Standards | ENERGY STAR Qualified |
| Bundled with | HP Wolf Pro Security Edition (1 year) |
| General | |
| Type | Workstation |
| AI Level | AI Workstation |
| Bundled Services | HP 3 years Onsite Care Hardware Support for Workstations |
| Product Form Factor | Tower - 4U |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Color | Black |
| Localization | Language: English / region: United States |
| Bundled with | HP Wolf Pro Security Edition (1 year) |
| Expansion / Connectivity | |
| Bays | 2 internal 3.5" ¦ 1 external 5.25" (9.5mm height) |
| Slots | 4 PCIe 5.0 x16 ¦ 2 PCIe 5.0 x4 ¦ 1 PCIe 4.0 x16 ¦ 3 PCIe 4.0 x4 ¦ 4 M.2 Card - 2280 |
| Interfaces | 10 x USB 3.2 Gen 1 (4 front, 6 rear) (one of them is charging) ¦ 1 x headphones/microphone (1 front) ¦ 1 x audio line-out/line-in (1 rear) ¦ 1 x LAN (Gigabit Ethernet) - RJ-45 (1 rear) |
| Miscellaneous | |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| Manufacturer Selling Program | HP Smart Buy |
| RAM | |
| Installed Size | 64 GB |
| Technology | DDR5 SDRAM - ECC |
| Effective Memory Speed | 6400 MT/s |
| Form Factor | DIMM 288-pin |
| Slots | 2 (total) / 0 (empty) |
| Configuration Features | 2 x 32 GB |
| Networking | |
| Ethernet Controller | Realtek RTL8111EPP-CG |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Power | |
| Device Type | Power supply |
| Power Provided | 1125 watt |
| Efficiency | 90% |
| Power Factor Correction | Yes (active) |
| Storage Controller | |
| Type | SATA |
| Controller Interface Type | SATA 6Gb/s |
| RAID Level | RAID 0, RAID 1 |
| Cache Memory | |
| Installed Size | L3 cache - 128 MB |
| Cache Per Processor | 128 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | No graphics |
| Operating System / Software | |
| OS Provided | Windows 11 Pro English |
| Software | HP Remote Graphics Software, HP Support Assistant, HP Performance Advisor, HP PC Hardware Diagnostics UEFI, HP Secure Erase, HP BIOSphere, HP BIOS Configuration Utility (free download), HP Driver Packs, HP Image Assistant, HP System Software Manager (free download), HP Sure Click, HP Sure Run, HP Sure Recover, HP Manageability Integration Kit, HP Sure Sense, HP Sure Admin, HP Smart Support, HP Platform Certificate, HP PC Hardware Diagnostics Windows, HP Services Scan, HP Data Science Stack Manager, HP Sure Start, HP Anyware Pro |
| Hard Drive | |
| Type | SSD - M.2 |
| Capacity | 1 x 1 TB |
| Interface Type | PCI Express 4.0 |
| Features | Self-Encrypting Drive, HP Z Turbo Drive, NVM Express (NVMe), triple-level cell (TLC) |
| Input Device | |
| Type | Mouse, keyboard |
| Dimensions & Weight | |
| Width | 6.7 in |
| Depth | 18.3 in |
| Height | 17.5 in |
| Weight | 29.1 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 12.3 in |
| Shipping Depth | 23.3 in |
| Shipping Height | 24 in |
| Shipping Weight | 40.34 lbs |
| Keyboard | |
| Keyboard Name | HP 320K |
| Interface | USB |
| Localization & Layout | US |
| Mouse | |
| Mouse Name | HP 320M |
| Interface | USB |
| Processor / Chipset | |
| CPU | AMD Ryzen ThreadRipper PRO 9975WX |
| Max Turbo Speed | 5.4 GHz |
| Number of Cores | 32-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Processor Main Features | 64 Threads |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
