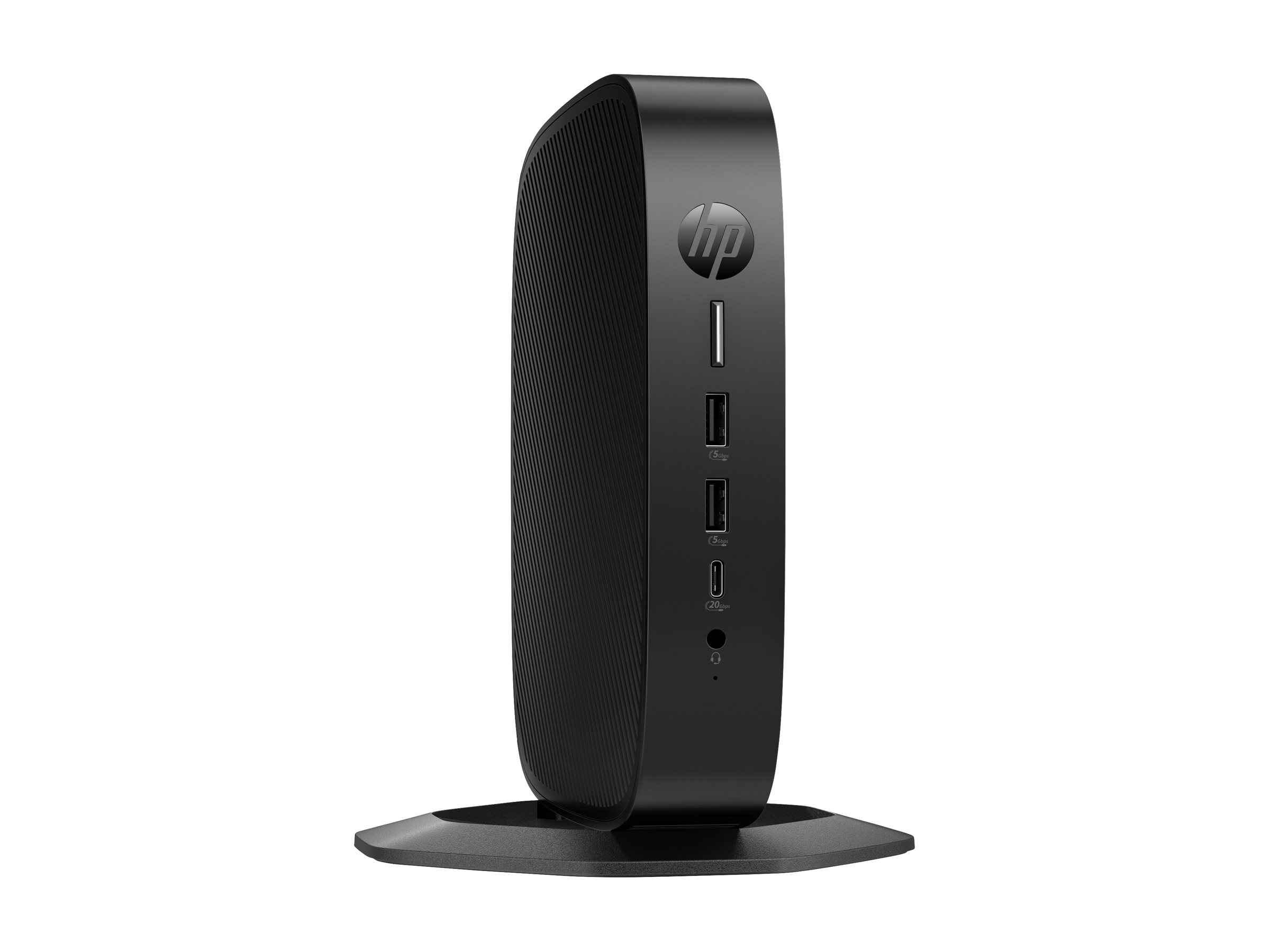

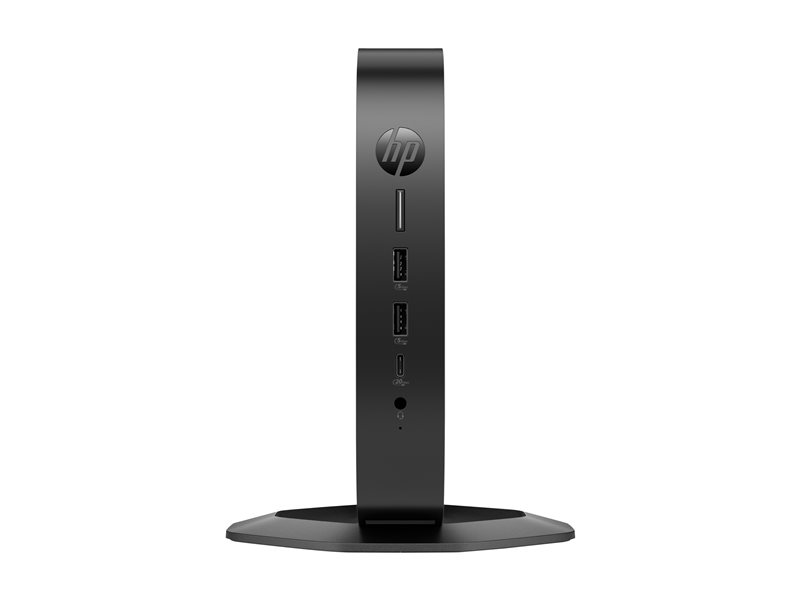

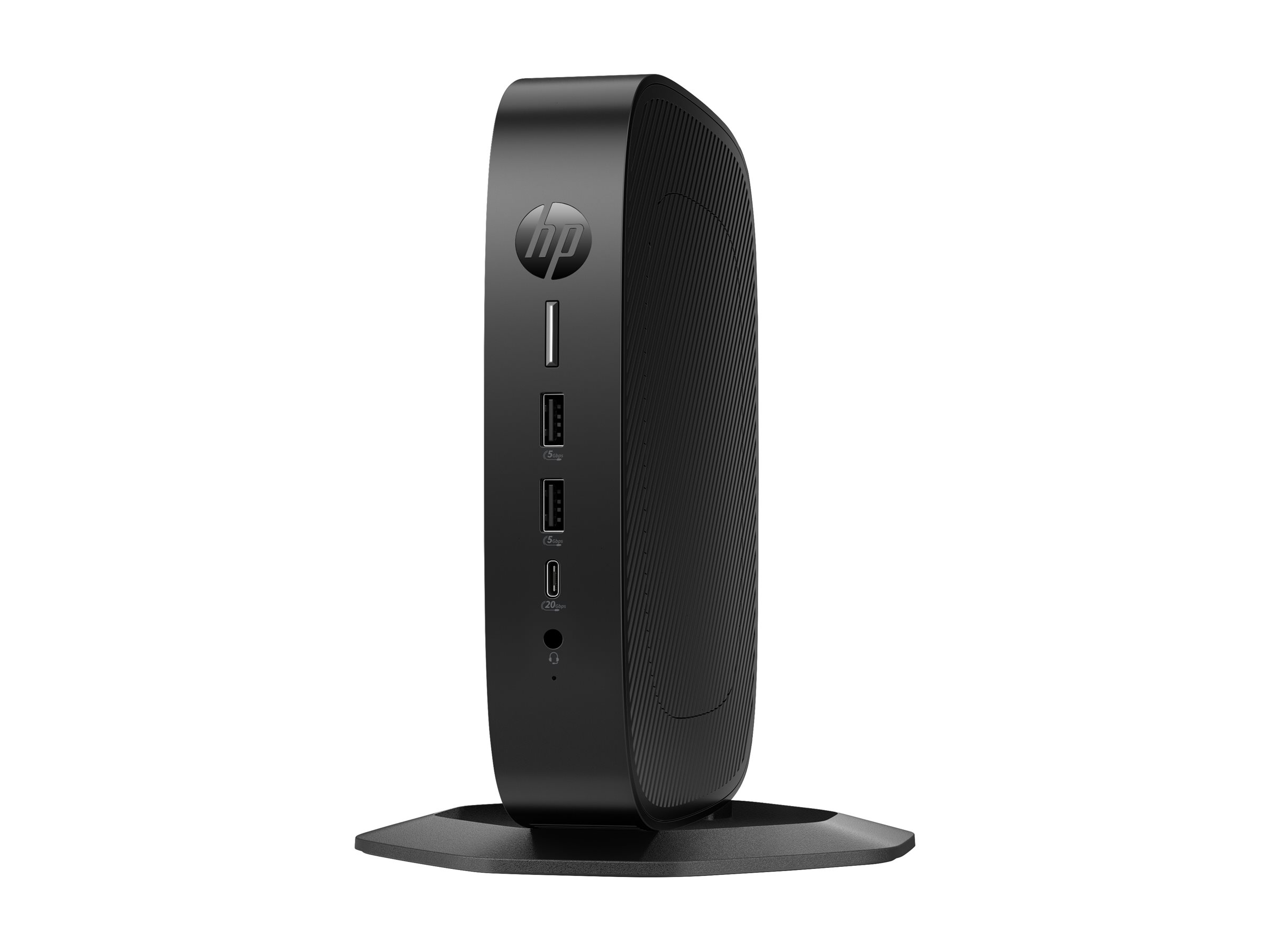

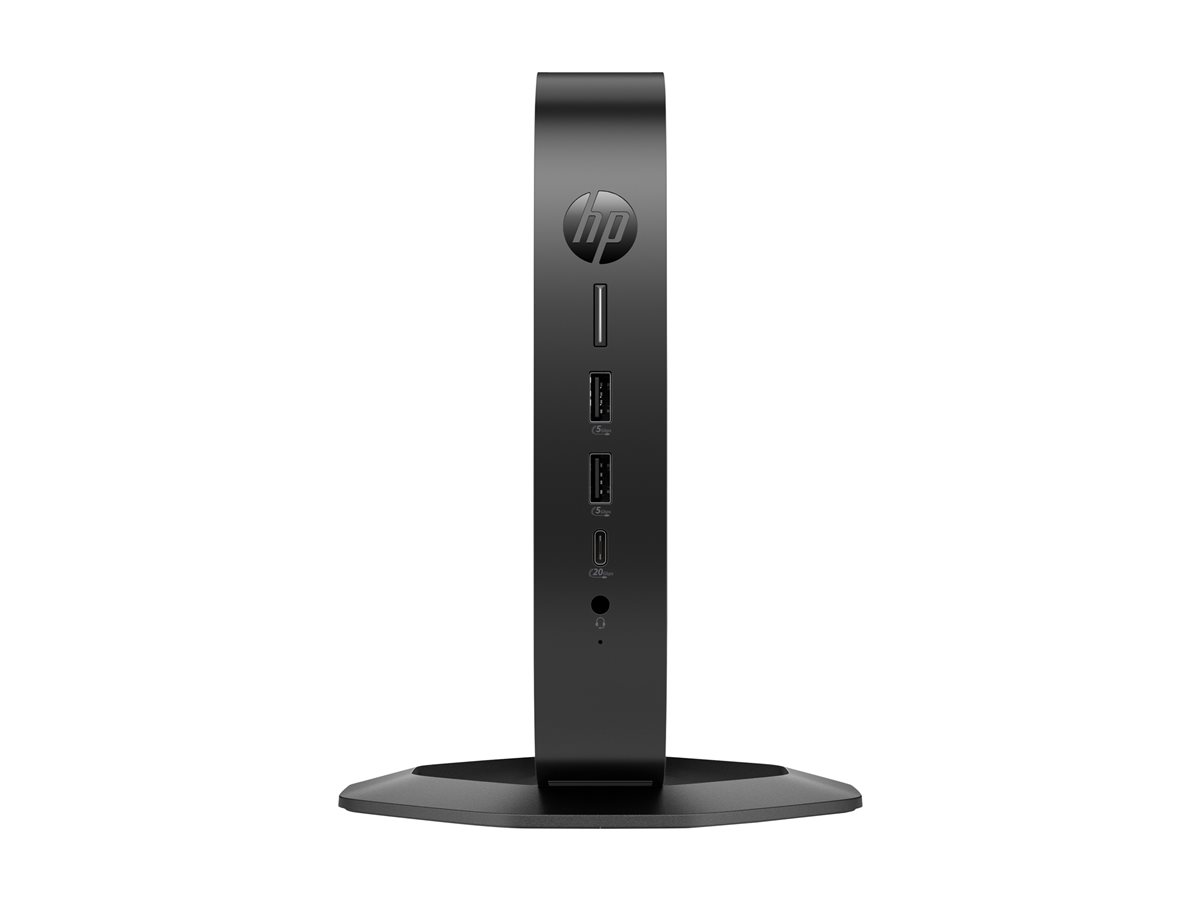

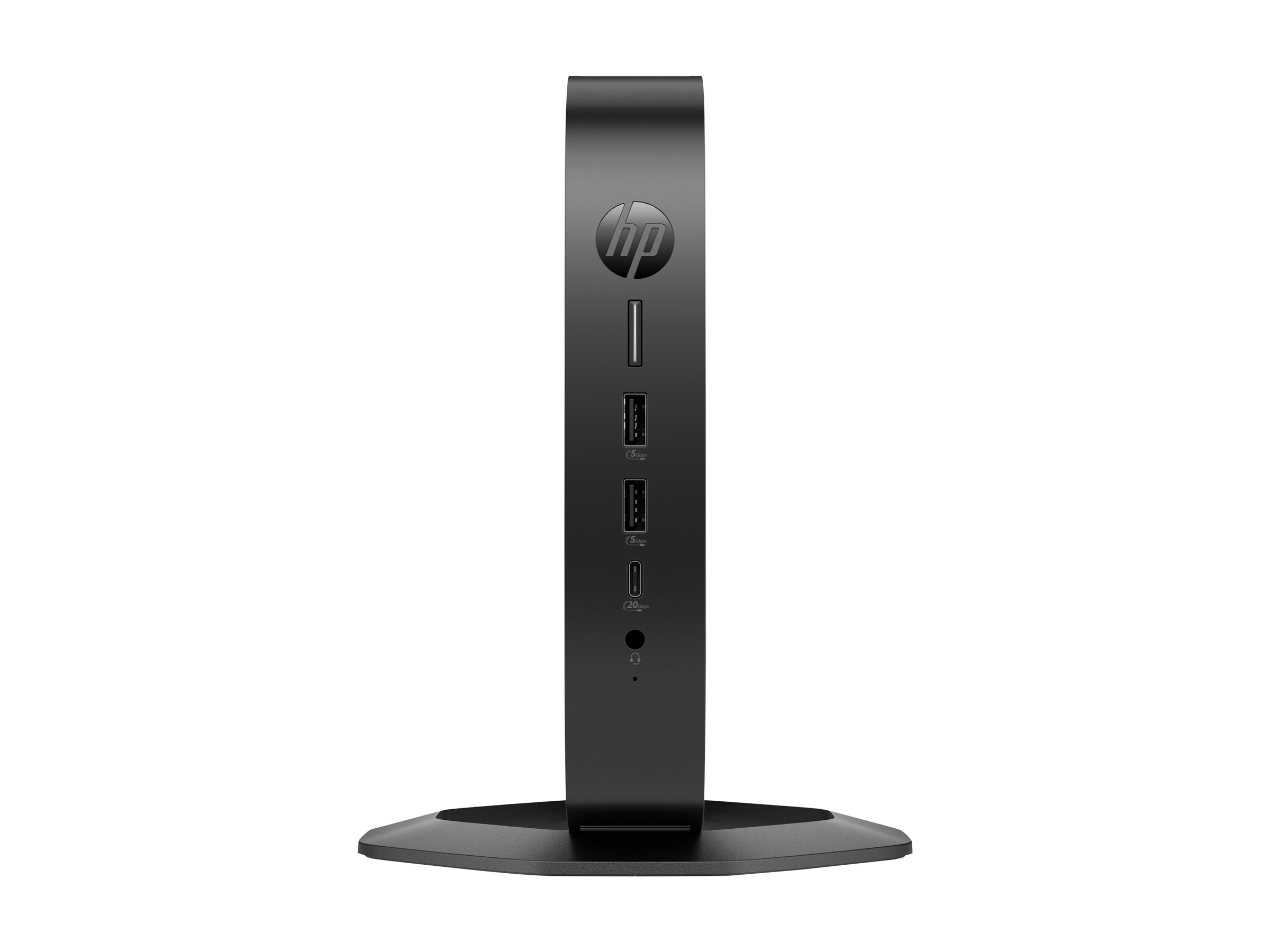

Thin client - SFF 1 x U-Series U300E / up to 4.3 GHz - RAM 8 GB - SSD 256 GB - NVMe - UHD Graphics - Gigabit Ethernet - 11 IoT Enterprise 2024 LTSC - monitor: none - keyboard: US - Smart Buy
| Main Specifications | |
|---|---|
| Product Description | HP Elite t660 - SFF U-Series U300E 1.1 GHz - 8 GB - SSD 256 GB - US |
| Type | Thin client - SFF |
| Localization | Language: English / region: United States |
| Processor | 1 x Intel U-Series U300E / 1.1 GHz (up to 4.3 GHz, (5-core) |
| Processor Main Features | Intel Turbo Boost Technology |
| Cache Memory | 8 MB L3 cache |
| Cache Per Processor | 8 MB |
| RAM | 8 GB (installed) / 32 GB (max) - DDR5 SDRAM |
| Hard Drive | SSD 256 GB - PCI Express (NVMe) - M.2 - NVM Express (NVMe) |
| Optical Storage | No optical drive |
| Graphics Controller | Intel UHD Graphics |
| Networking | 1GbE |
| Keyboard | US |
| Power | (50/60 Hz) |
| OS Provided | Windows 11 IoT Enterprise 2024 LTSC |
| Software Included | Citrix ICA, Microsoft RDP, Microsoft Windows Media Player, Microsoft Firewall, HP Remote Graphics Software, HP Easy Tools, HP Device Manager, LogOn Manager, Citrix HDX, HP Secure Erase, CyberLink Power Media Player, HP ThinUpdate, HP True Graphics, HP Easy Shell, Microsoft Edge, Microsoft SCCM/EDM-agent, HP USB Port Manager, HP Smart Zero Client Services, HP Write Manager, HP Sure Admin, Microsoft Unified Write Filter, HP Management Integration Kit for Microsoft System Center Configuration Manager Gen 4, Microsoft RFX, Microsoft Direct Access, HP User State Tool, HP Sure Start, Microsoft AVD |
| Dimensions (WxDxH) | 1.4 in x 7.9 in x 7.9 in |
| Weight | 2.65 lbs |
| Manufacturer Selling Program | HP Smart Buy |
| Environmental Standards | TCO Certified Desktops 9, ENERGY STAR Qualified EPEAT Gold |
| General | |
| Type | Thin client |
| Product Form Factor | SFF |
| Built-in Devices | Speaker |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Localization | Language: English / region: United States |
| Expansion / Connectivity | |
| Slots | 1 (total) / 0 (free) x M.2 Card (for internal storage) |
| Interfaces | 3 x USB 3.2 Gen 1 (2 front, 1 rear) ¦ 1 x USB 3.2 Gen 2 (1 rear) ¦ 1 x Thunderbolt 4/USB4/DisplayPort 1.4 (1 front) (Power Delivery, HP Sleep and Charge) ¦ 1 x audio line-out/line-in (1 rear) ¦ 1 x LAN (Gigabit Ethernet) - RJ-45 (1 rear) ¦ 2 x USB 2.0 (2 rear) ¦ 1 x audio line-in/headphones - mini-jack (1 front) ¦ 3 x DisplayPort 1.4 (3 rear) |
| Miscellaneous | |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| VESA Mounting Interface | 100 x 100 mm |
| Compliant Standards | FCC Class B certified, UL, BSMI, GS, CB, CCC, ICES Class B, WEEE, KCC Class B, AS/NZS, ERP, CECP, RoHS2, VCCI Class B, CISPR Class B, SEPA, low halogen, HP GSE, EN60601-1-2, CNS Class B |
| Manufacturer Selling Program | HP Smart Buy |
| RAM | |
| Installed Size | 8 GB (installed) / 32 GB (max) |
| Technology | DDR5 SDRAM |
| Effective Memory Speed | 2800 MHz |
| Rated Memory Speed | 2800 MHz |
| Form Factor | SO-DIMM 262-pin |
| Slots | 2 (total) / 1 (empty) |
| Configuration Features | 1 x 8 GB |
| Networking | |
| Ethernet Controller | Realtek RTL8111HSH-CG |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Features | Wake on LAN (WoL) |
| Power | |
| Device Type | Power adapter |
| Power Device Name | HP Smart AC Adapter |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Provided | 45 Watt |
| Efficiency | 87% |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Cache Memory | |
| Installed Size | L3 cache - 8 MB |
| Cache Per Processor | 8 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | Intel UHD Graphics |
| Video Interfaces | DisplayPort |
| Max Monitors Supported | 4 |
| Operating System / Software | |
| OS Provided | Windows 11 IoT Enterprise 2024 LTSC English |
| Software | Citrix ICA, Microsoft RDP, Microsoft Windows Media Player, Microsoft Firewall, HP Remote Graphics Software, HP Easy Tools, HP Device Manager, LogOn Manager, Citrix HDX, HP Secure Erase, CyberLink Power Media Player, HP ThinUpdate, HP True Graphics, HP Easy Shell, Microsoft Edge, Microsoft SCCM/EDM-agent, HP USB Port Manager, HP Smart Zero Client Services, HP Write Manager, HP Sure Admin, Microsoft Unified Write Filter, HP Management Integration Kit for Microsoft System Center Configuration Manager Gen 4, Microsoft RFX, Microsoft Direct Access, HP User State Tool, HP Sure Start, Microsoft AVD |
| Hard Drive | |
| Type | SSD - M.2 |
| Capacity | 1 x 256 GB |
| Interface Type | PCI Express (NVMe) |
| Features | NVM Express (NVMe) |
| Input Device | |
| Type | Mouse, keyboard |
| Dimensions & Weight | |
| Dimensions & Weight Details | 1.4 in - 7.9 in - 7.9 in - 2.6 lbs - with stand ¦ - 2.5 lbs - without stand |
| Width | 1.4 in |
| Depth | 7.9 in |
| Height | 7.9 in |
| Weight | 2.65 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 19.5 in |
| Shipping Depth | 5.2 in |
| Shipping Height | 10.2 in |
| Shipping Weight | 6.57 lbs |
| Keyboard | |
| Keyboard Name | HP 320K |
| Interface | USB |
| Localization & Layout | US |
| Mouse | |
| Mouse Name | HP 320M |
| Processor / Chipset | |
| CPU | Intel U-Series U300E |
| Clock Speed | 1.1 GHz |
| Max Turbo Speed | 4.3 GHz (P-core) / 3.2 GHz (E-core) |
| Number of Cores | 5-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| CPU Upgradability | Not upgradable |
| Processor Main Features | Intel Turbo Boost Technology |
| Sustainability Information | |
| TCO Certified | TCO Certified Desktops 9 |
| EPEAT Compliant | EPEAT Gold |
| ENERGY STAR Certified | Yes |
