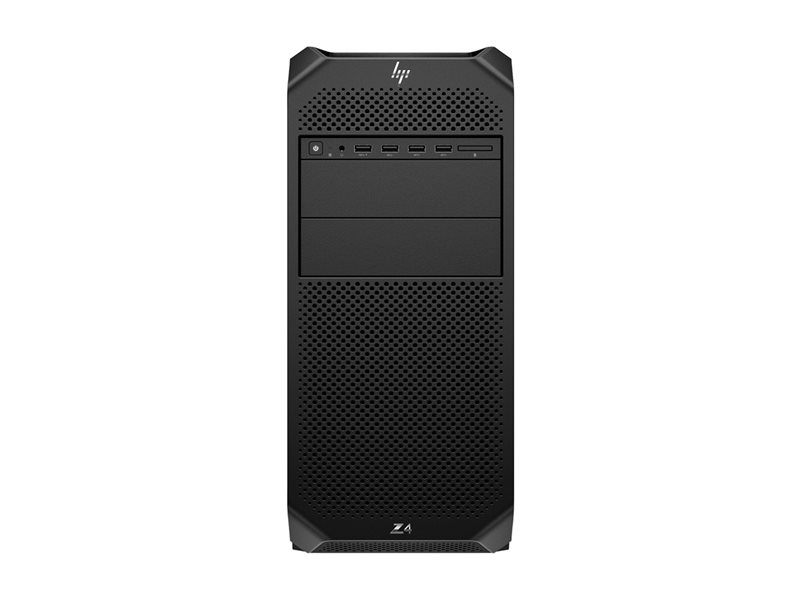

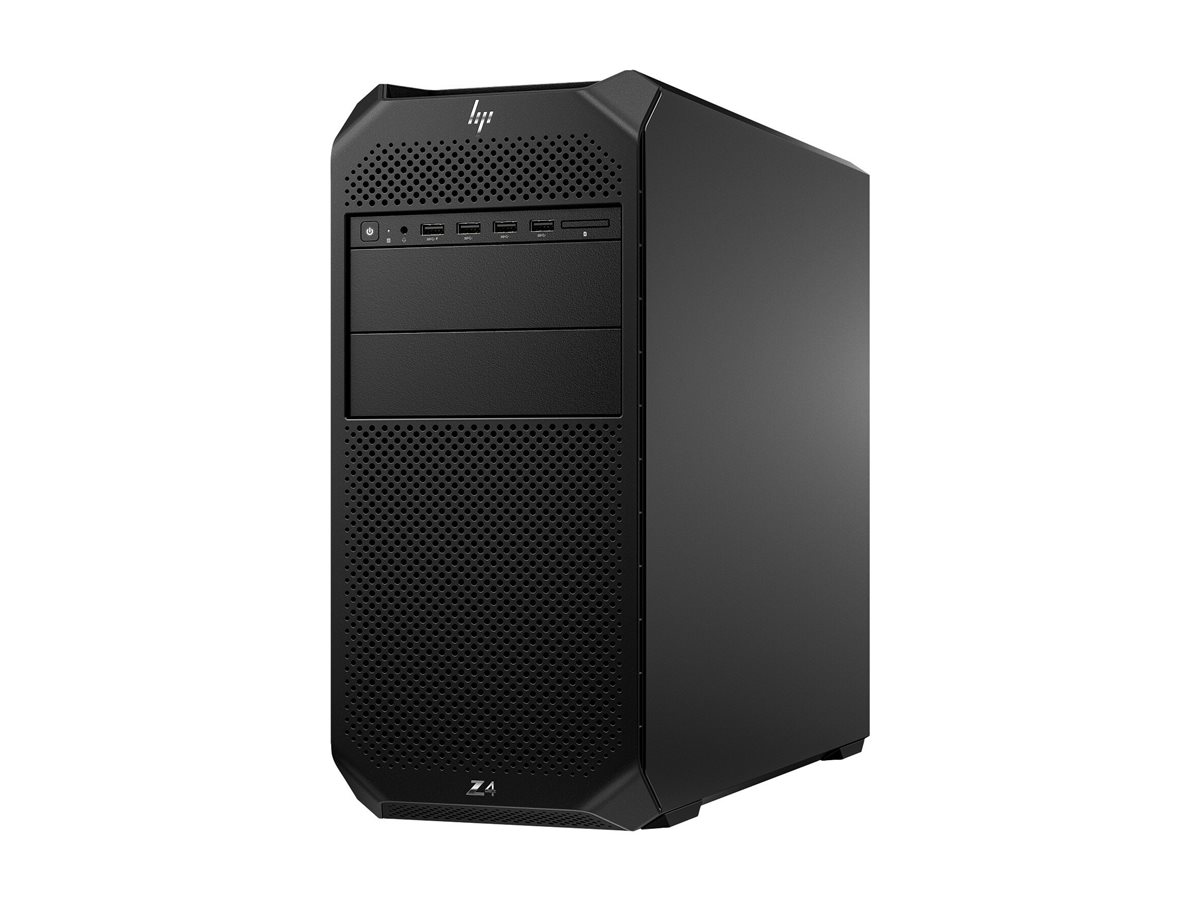

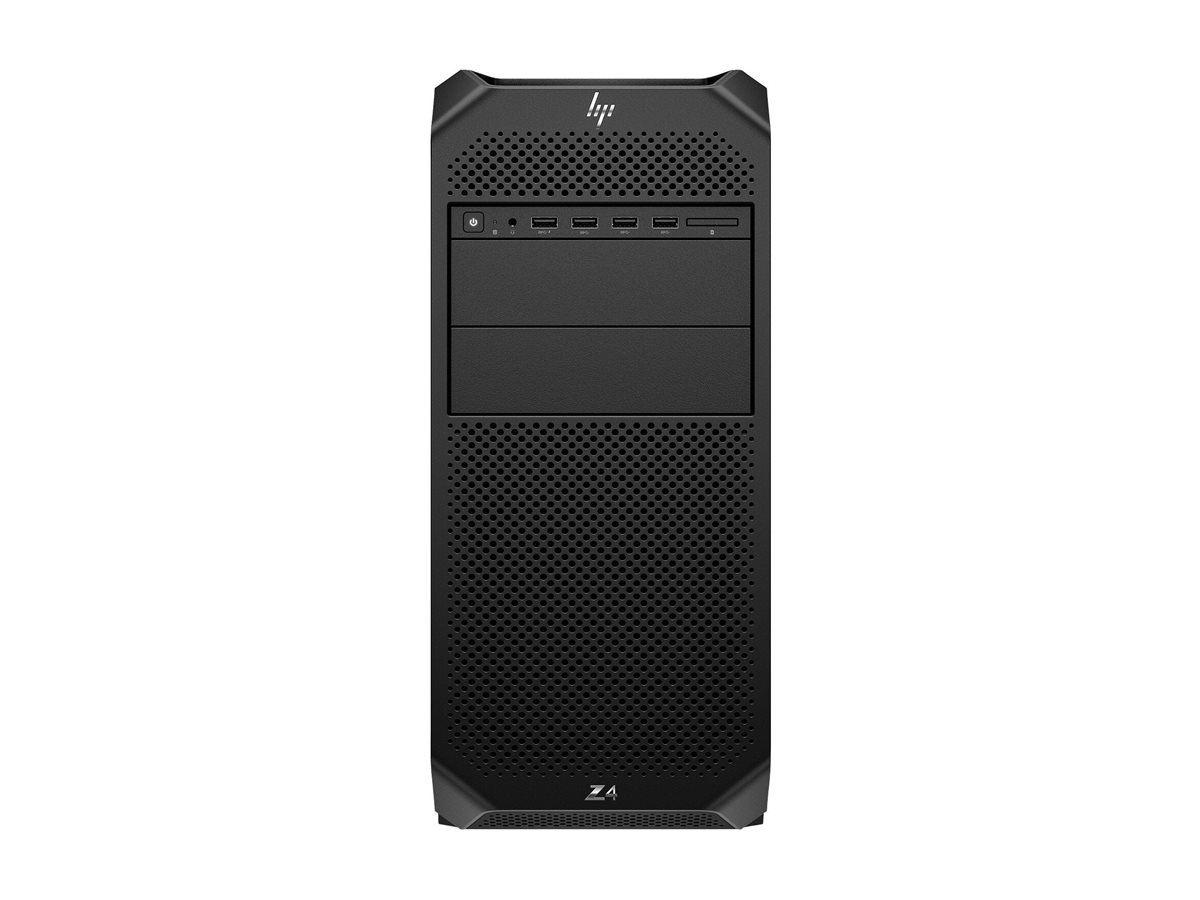

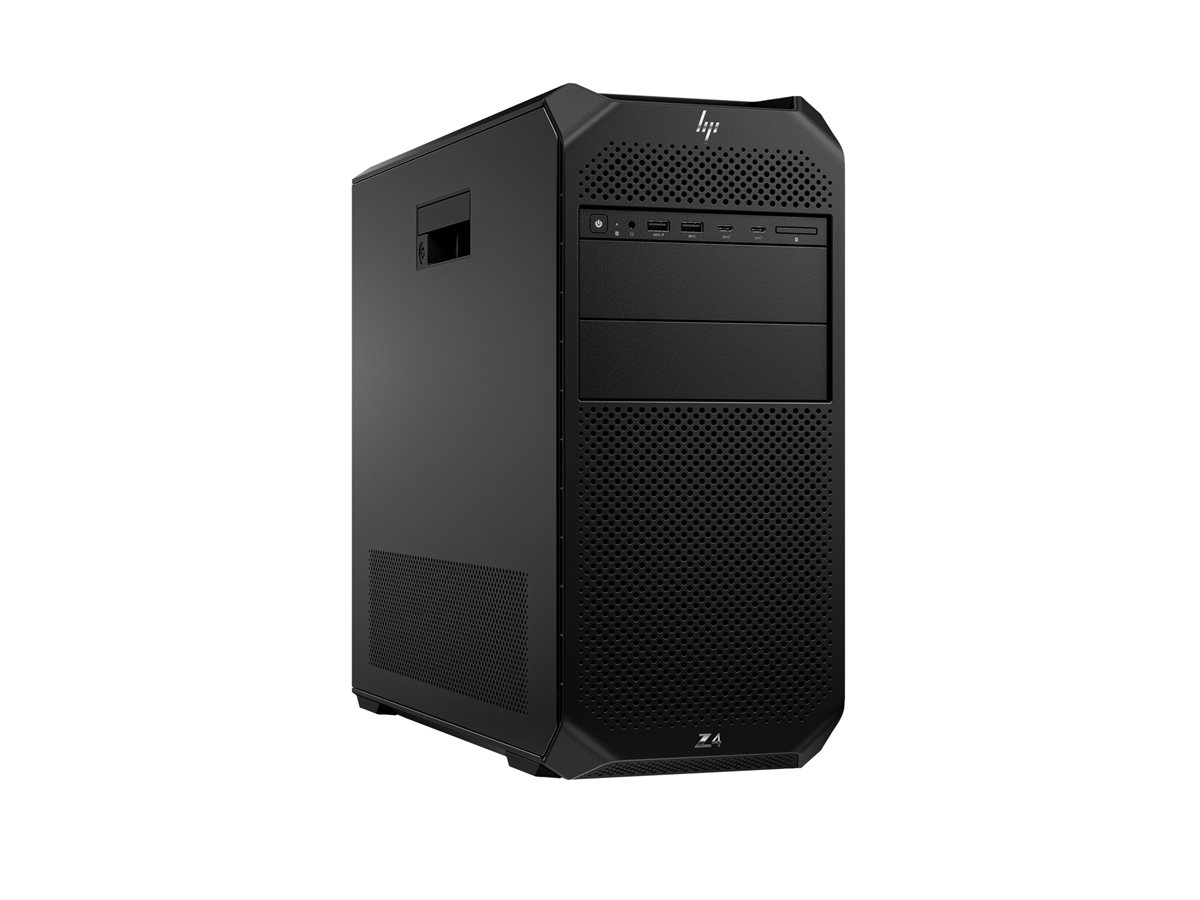

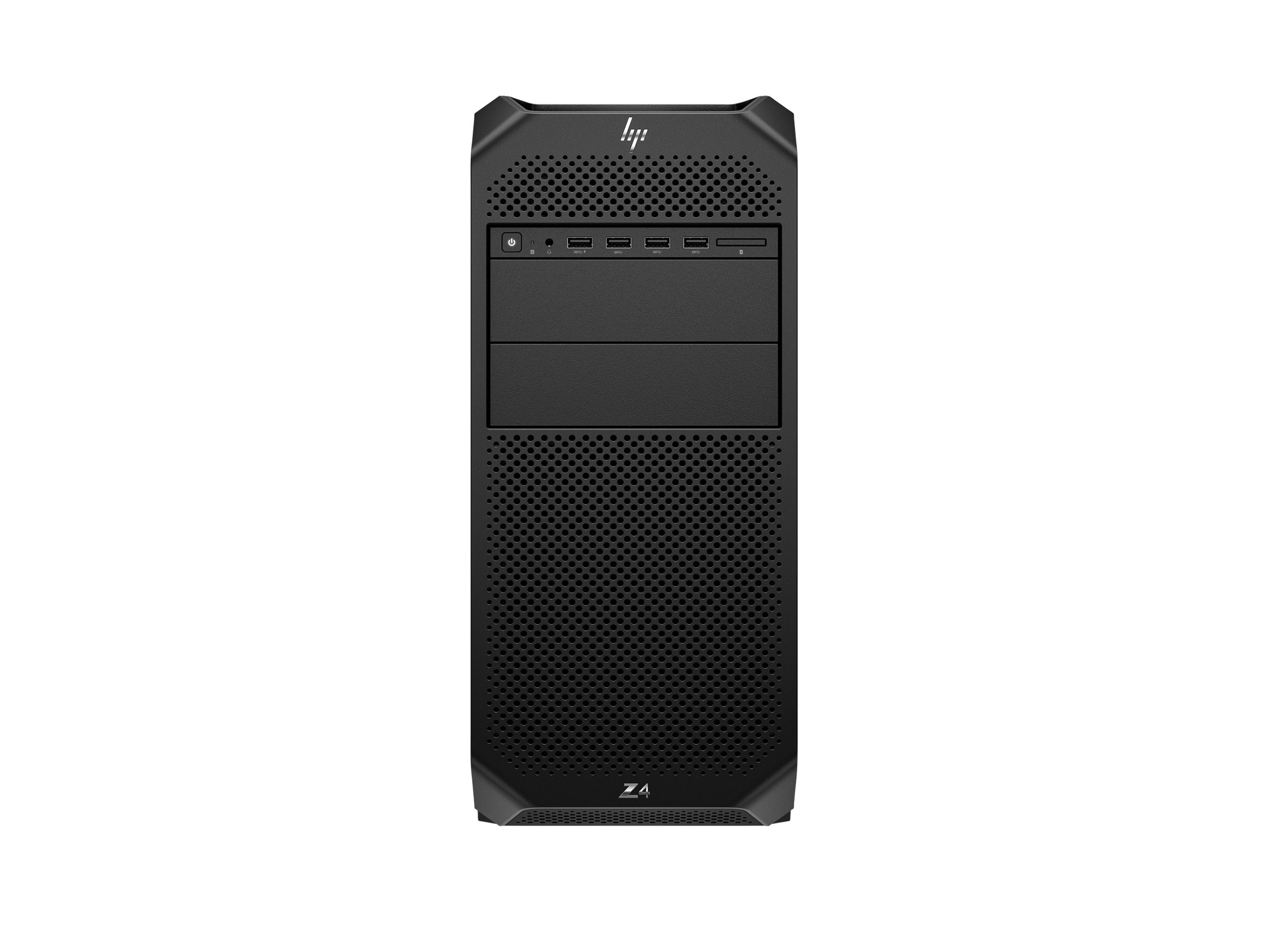

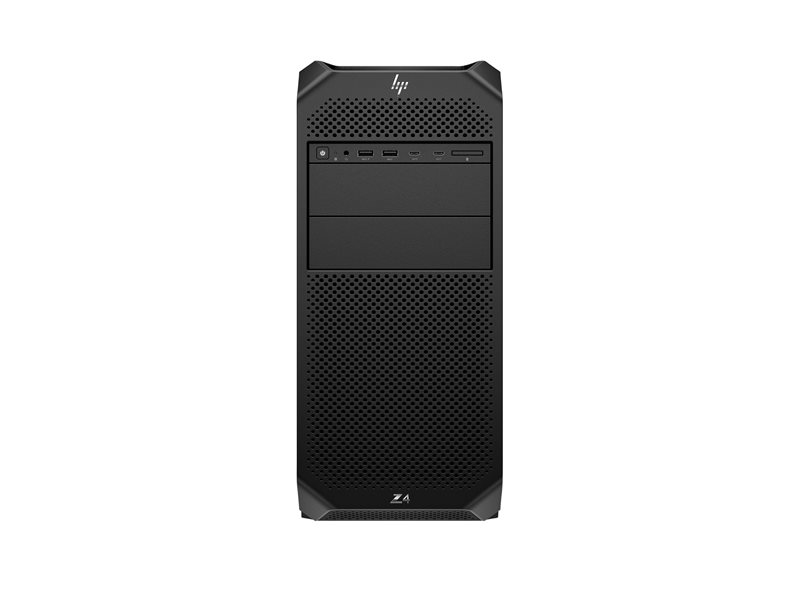

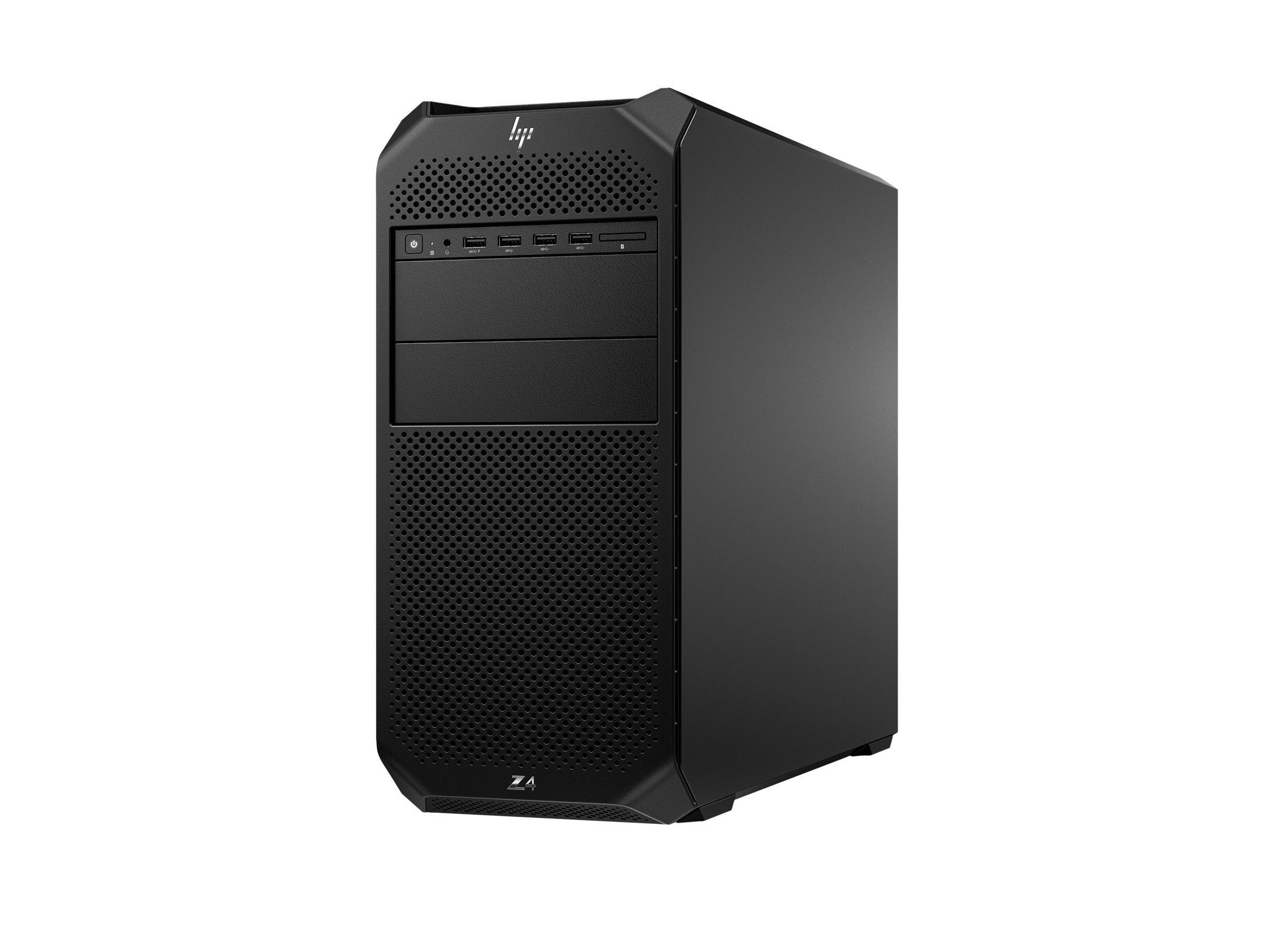

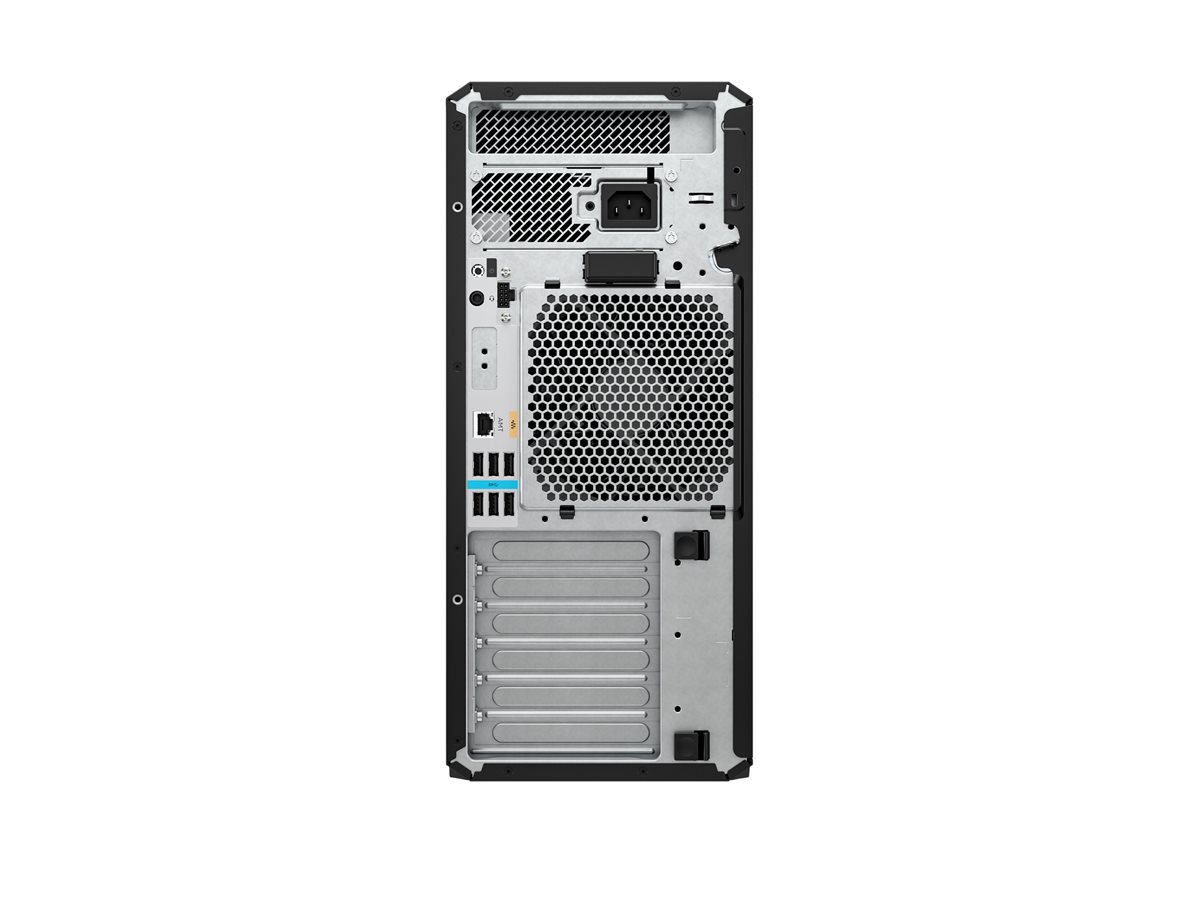

AI Workstation - tower 1 x Xeon W5-2545 / up to 4.7 GHz - RAM 16 GB - SSD 512 GB - SED, HP Z Turbo Drive, NVMe, TLC - RTX 4000 Ada - Gigabit Ethernet - Win 11 Pro - monitor: none - keyboard: US - Smart Buy - with HP 3 years Onsite Care Hardware Support for Workstations - with HP Wolf Pro Security Edition (1 year)
| Main Specifications | |
|---|---|
| Product Description | HP Workstation Z4 G5 - tower - AI Workstation - Xeon W5-2545 - 16 GB - SSD 512 GB - US - with HP Wolf Pro Security Edition (1 year) |
| Type | Workstation - tower - AI Workstation |
| Bundled Services | HP 3 years Onsite Care Hardware Support for Workstations |
| Localization | Language: English / region: United States |
| Processor | 1 x Intel Xeon W5-2545 (up to 4.7 GHz, (12-core) |
| Processor Main Features | Intel Turbo Boost Technology, 24 Threads |
| Cache Memory | 30 MB L3 cache |
| Cache Per Processor | 30 MB |
| RAM | 16 GB DDR5 SDRAM - non-ECC |
| Storage Controller | SATA (SATA 6Gb/s) |
| Hard Drive | SSD 512 GB - PCI Express 4.0 - M.2 - Self-Encrypting Drive, HP Z Turbo Drive, NVM Express (NVMe), triple-level cell (TLC) |
| Optical Storage | No optical drive |
| Graphics Controller | NVIDIA RTX 4000 Ada |
| Video Memory | 20 GB GDDR6 SDRAM |
| Networking | 1GbE |
| Keyboard | US |
| OS Provided | Windows 11 Pro |
| Software Included | HP Support Assistant, HP Performance Advisor, HP Secure Erase, HP BIOSphere, HP BIOS Configuration Utility (free download), HP Image Assistant (free download), HP System Software Manager (free download), HP Sure Click, HP Sure Run, HP Sure Recover, HP Manageability Integration Kit, HP Sure Sense, HP Sure Admin, HP Smart Support, HP Platform Certificate, HP PC Hardware Diagnostics Windows, HP Anyware, HP Data Science Stack, HP Services Scan, HP Sure Start, HP Driver Packs (free download), HP UEFI BIOS Certification level 2.7B |
| Dimensions (WxDxH) | 6.6 in x 17.5 in x 15.2 in |
| Weight | 23.15 lbs |
| Manufacturer Selling Program | HP Smart Buy |
| Environmental Standards | TCO Certified Desktops 9, ENERGY STAR Qualified |
| Carbon Footprint | 840 kg carbon emissions |
| Bundled with | HP Wolf Pro Security Edition (1 year) |
| General | |
| Type | Workstation |
| AI Level | AI Workstation |
| Bundled Services | HP 3 years Onsite Care Hardware Support for Workstations |
| Product Form Factor | Tower |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Localization | Language: English / region: United States |
| Bundled with | HP Wolf Pro Security Edition (1 year) |
| Expansion / Connectivity | |
| Bays | 4 internal 3.5" ¦ 2 external 3.5" ¦ 2 external 5.25" (9.5mm height) |
| Slots | 1 PCIe 5.0 x16 ¦ 2 PCIe 4.0 x16 ¦ 2 PCIe 4.0 x4 ¦ 4 M.2 Card - 2280 |
| Interfaces | 4 x USB 3.2 Gen 1 (4 front) ¦ 1 x headphones/microphone (1 front) ¦ 1 x LAN - RJ-45 (1 rear) ¦ 1 x audio line-out/line-in (1 rear) |
| Miscellaneous | |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| Compliant Standards | Low halogen |
| Manufacturer Selling Program | HP Smart Buy |
| RAM | |
| Installed Size | 16 GB |
| Technology | DDR5 SDRAM - non-ECC |
| Effective Memory Speed | 4800 MT/s |
| Form Factor | DIMM 288-pin |
| Slots | 8 (total) / 7 (empty) |
| Configuration Features | 1 x 16 GB |
| Networking | |
| Ethernet Controller | Intel I219-LM |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Power | |
| Device Type | Power supply |
| Power Provided | 775 Watt |
| Efficiency | 90% |
| Power Factor Correction | Yes (active) |
| Storage Controller | |
| Type | SATA |
| Controller Interface Type | SATA 6Gb/s |
| RAID Level | RAID 0, RAID 1 |
| Cache Memory | |
| Installed Size | L3 cache - 30 MB |
| Cache Per Processor | 30 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | NVIDIA RTX 4000 Ada |
| Video Memory | 20 GB GDDR6 SDRAM |
| Operating System / Software | |
| OS Provided | Windows 11 Pro English |
| Software | HP Support Assistant, HP Performance Advisor, HP Secure Erase, HP BIOSphere, HP BIOS Configuration Utility (free download), HP Image Assistant (free download), HP System Software Manager (free download), HP Sure Click, HP Sure Run, HP Sure Recover, HP Manageability Integration Kit, HP Sure Sense, HP Sure Admin, HP Smart Support, HP Platform Certificate, HP PC Hardware Diagnostics Windows, HP Anyware, HP Data Science Stack, HP Services Scan, HP Sure Start, HP Driver Packs (free download), HP UEFI BIOS Certification level 2.7B |
| Hard Drive | |
| Type | SSD - M.2 |
| Capacity | 1 x 512 GB |
| Interface Type | PCI Express 4.0 |
| Features | Self-Encrypting Drive, HP Z Turbo Drive, NVM Express (NVMe), triple-level cell (TLC) |
| Input Device | |
| Type | Mouse, keyboard |
| Dimensions & Weight | |
| Width | 6.6 in |
| Depth | 17.5 in |
| Height | 15.2 in |
| Weight | 23.15 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 12.4 in |
| Shipping Depth | 22.5 in |
| Shipping Height | 22.2 in |
| Shipping Weight | 31.64 lbs |
| Keyboard | |
| Keyboard Name | HP 320K |
| Interface | USB |
| Localization & Layout | US |
| Mouse | |
| Mouse Name | HP 320M |
| Interface | USB |
| Processor / Chipset | |
| CPU | Intel Xeon W5-2545 |
| Max Turbo Speed | 4.7 GHz |
| Number of Cores | 12-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Processor Main Features | Intel Turbo Boost Technology, 24 Threads |
| Chipset Type | Intel W790 |
| Sustainability Information | |
| TCO Certified | TCO Certified Desktops 9 |
| ENERGY STAR Certified | Yes |
| Carbon Footprint | 840 kg carbon emissions |
| Manufacturing (kg CO2e) | 290 |
| Logistics (kg CO2e) | 4 |
| Use (kg CO2e) | 542 |
| EOL (kg CO2e) | 2 |
| Total Carbon w/o Use Phase (kg CO2e) | 298 |
