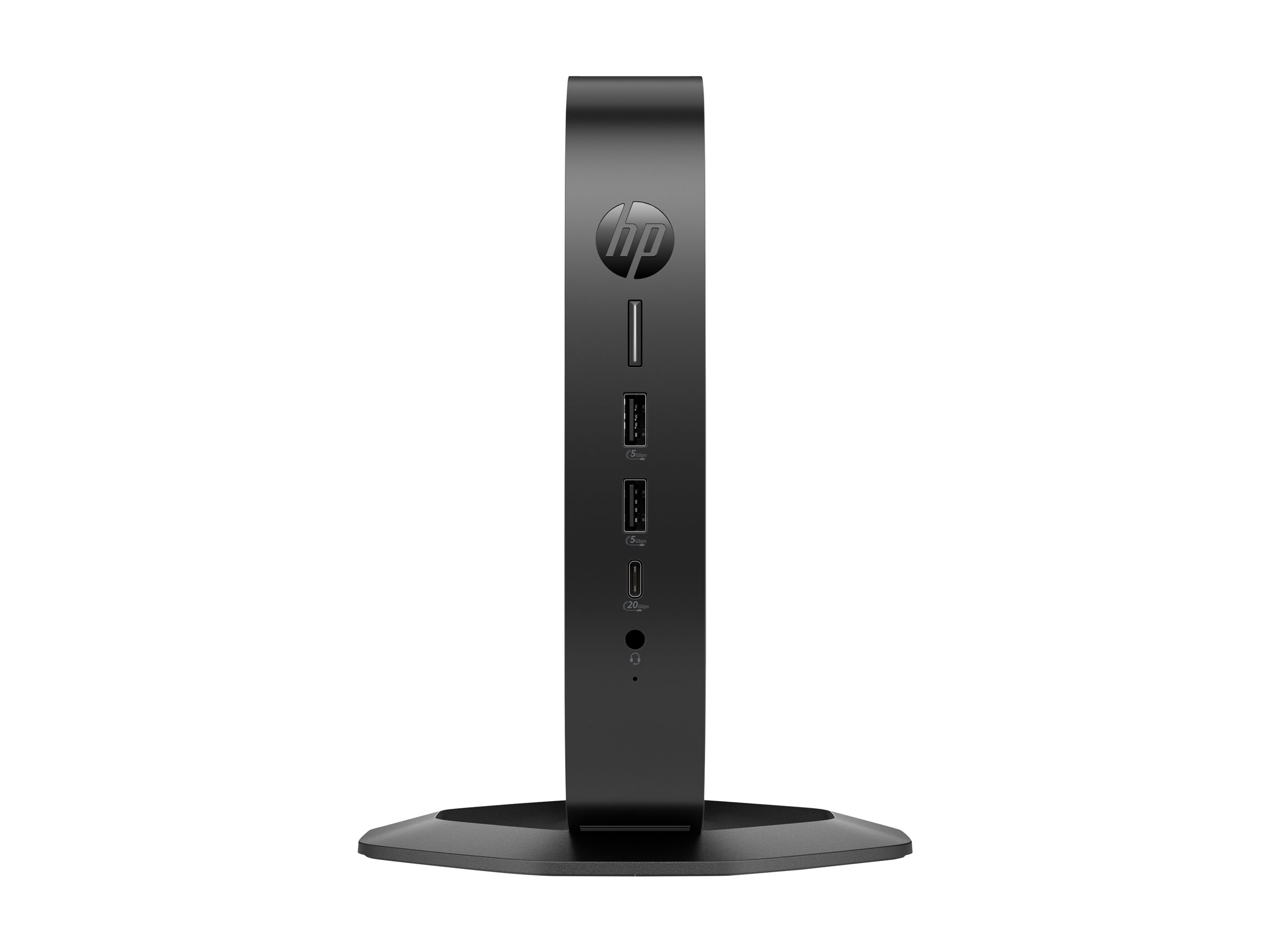

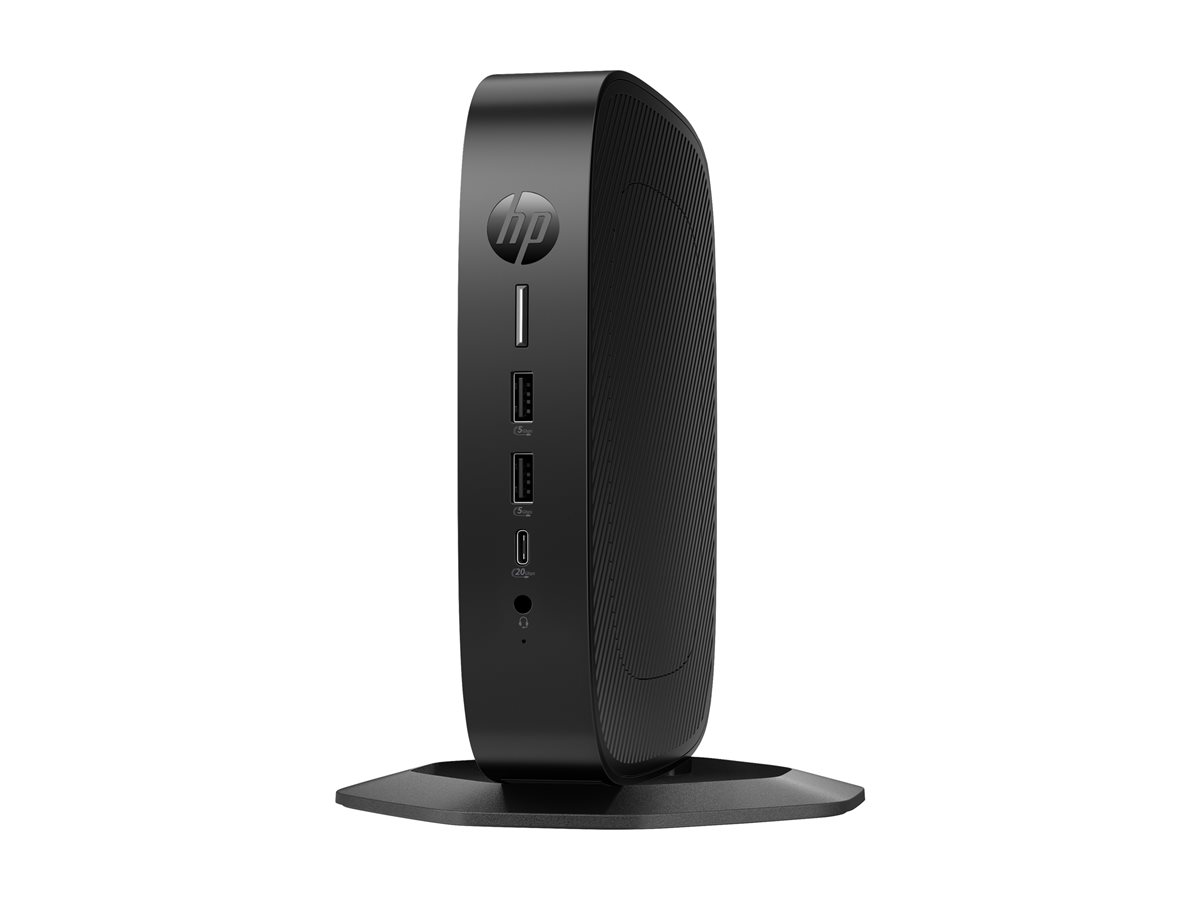

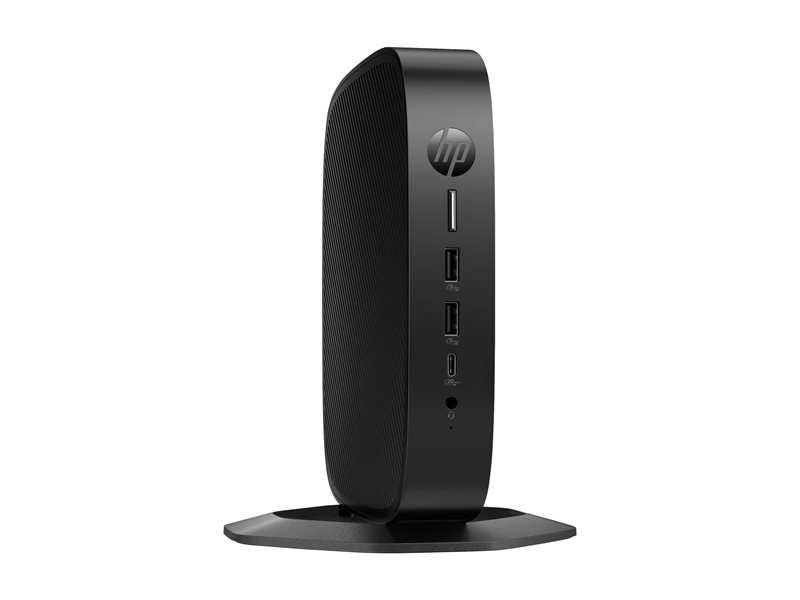

Thin client - SFF 1 x U-Series U300E / up to 4.3 GHz - RAM 8 GB - flash 32 GB - eMMC - UHD Graphics - Gigabit Ethernet - HP ThinPro - monitor: none - keyboard: US - Smart Buy - with HP 3 years Offsite Thin Client Support Bundling
| Main Specifications | |
|---|---|
| Product Description | HP Elite t660 - SFF U-Series U300E 1.1 GHz - 8 GB - flash 32 GB - US |
| Type | Thin client - SFF |
| Bundled Services | HP 3 years Offsite Thin Client Support Bundling |
| Localization | Language: English / region: United States |
| Processor | 1 x Intel U-Series U300E / 1.1 GHz (up to 4.3 GHz, (5-core) |
| Processor Main Features | Hyper-Threading Technology, Intel Smart Cache |
| Cache Memory | 8 MB L3 cache |
| Cache Per Processor | 8 MB |
| RAM | 8 GB (installed) / 32 GB (max) - DDR5 SDRAM |
| Hard Drive | Flash 32 GB - M.2 - eMMC |
| Optical Storage | No optical drive |
| Graphics Controller | Intel UHD Graphics |
| Networking | 1GbE |
| Keyboard | US |
| OS Provided | HP ThinPro |
| Software Included | Mozilla Firefox, HP Easy Tools, HP Device Manager, HP ThinUpdate, HP True Graphics, HP Easy Shell, HP Write Manager, Microsoft Azure Virtual Desktop |
| Dimensions (WxDxH) | 1.4 in x 7.9 in x 7.9 in |
| Weight | 2.65 lbs |
| Manufacturer Selling Program | HP Smart Buy |
| Environmental Standards | TCO Certified Desktops 9, ENERGY STAR Qualified |
| General | |
| Type | Thin client |
| Bundled Services | HP 3 years Offsite Thin Client Support Bundling |
| Product Form Factor | SFF |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Localization | Language: English / region: United States |
| Expansion / Connectivity | |
| Slots | 1 (total) / 0 (free) x M.2 Card (for internal storage) |
| Interfaces | 3 x USB 3.2 Gen 1 (2 front, 1 rear) ¦ 1 x USB 3.2 Gen 2 ¦ 1 x Thunderbolt 4/USB4/DisplayPort 1.4 (Power Delivery, HP Sleep and Charge) ¦ 1 x audio line-out/line-in ¦ 1 x LAN (Gigabit Ethernet) ¦ 2 x USB 2.0 ¦ 1 x audio line-in/headphones - mini-jack ¦ 3 x DisplayPort 1.4 |
| Miscellaneous | |
| Manufacturer Selling Program | HP Smart Buy |
| RAM | |
| Installed Size | 8 GB (installed) / 32 GB (max) |
| Technology | DDR5 SDRAM |
| Effective Memory Speed | 2600 MHz |
| Rated Memory Speed | 2800 MHz |
| Form Factor | SO-DIMM 262-pin |
| Slots | 2 (total) / 1 (empty) |
| Configuration Features | 1 x 8 GB |
| Networking | |
| Ethernet Controller | Realtek RTL8111HSH-CG |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Features | Wake on LAN (WoL) |
| Compliant Standards | IEEE 802.3ab |
| Power | |
| Device Type | Power adapter |
| Power Device Name | HP Smart AC Adapter |
| Power Provided | 45 Watt |
| Efficiency | 87% |
| Cache Memory | |
| Installed Size | L3 cache - 8 MB |
| Cache Per Processor | 8 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | Intel UHD Graphics |
| Video Interfaces | DisplayPort |
| Max Monitors Supported | 4 |
| Operating System / Software | |
| OS Provided | HP ThinPro English |
| Software | Mozilla Firefox, HP Easy Tools, HP Device Manager, HP ThinUpdate, HP True Graphics, HP Easy Shell, HP Write Manager, Microsoft Azure Virtual Desktop |
| Hard Drive | |
| Type | Flash - M.2 |
| Capacity | 1 x 32 GB |
| Features | eMMC |
| Input Device | |
| Type | Mouse, keyboard |
| Dimensions & Weight | |
| Dimensions & Weight Details | 1.4 in - 7.9 in - 7.9 in - 2.6 lbs - with stand ¦ - 2.5 lbs - without stand |
| Width | 1.4 in |
| Depth | 7.9 in |
| Height | 7.9 in |
| Weight | 2.65 lbs |
| Keyboard | |
| Keyboard Name | HP 320K |
| Interface | USB |
| Localization & Layout | US |
| Mouse | |
| Mouse Name | HP 320M |
| Processor / Chipset | |
| CPU | Intel U-Series U300E |
| Clock Speed | 1.1 GHz |
| Max Turbo Speed | 4.3 GHz |
| Number of Cores | 5-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| CPU Upgradability | Not upgradable |
| Processor Main Features | Hyper-Threading Technology, Intel Smart Cache |
| Sustainability Information | |
| TCO Certified | TCO Certified Desktops 9 |
| ENERGY STAR Certified | Yes |
