2025 Edition - 24" large-format printer - color - ink-jet - A1, ANSI D - 2400 x 1200 dpi - up to 0.6 min/page (mono) / up to 0.6 min/page (color) - Gigabit LAN, USB 2.0, Wi-Fi
| Main Specifications | |
|---|---|

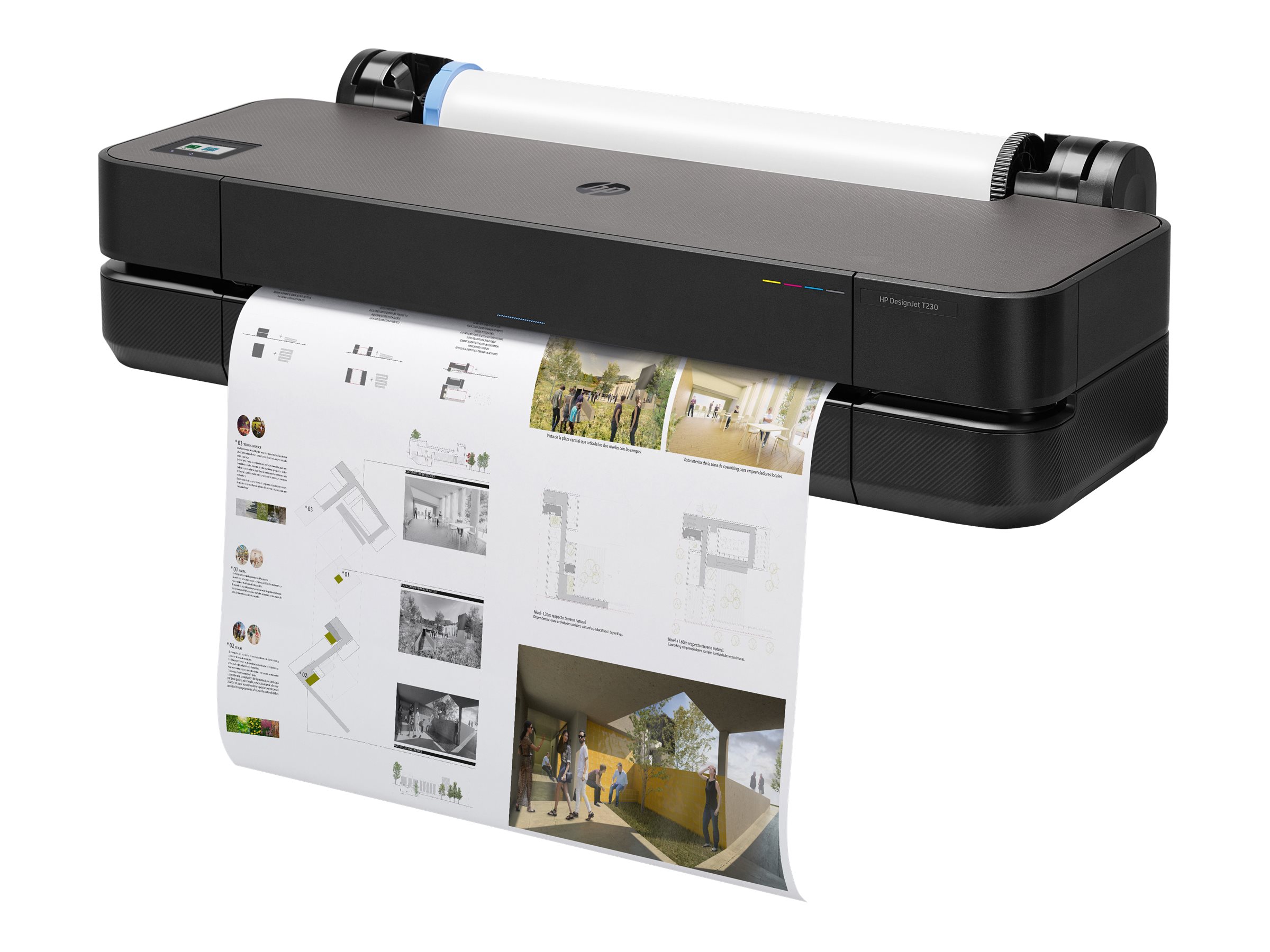

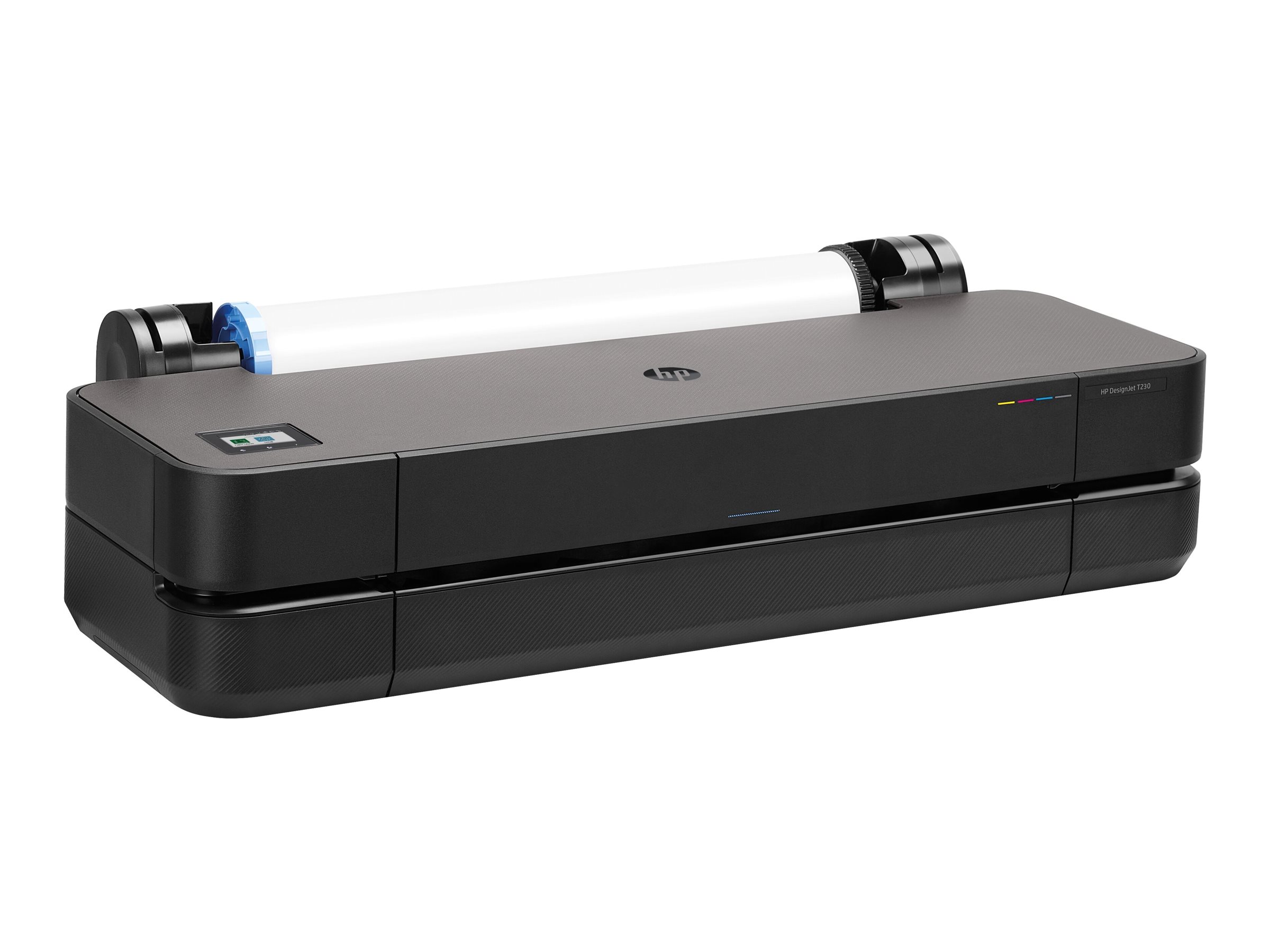

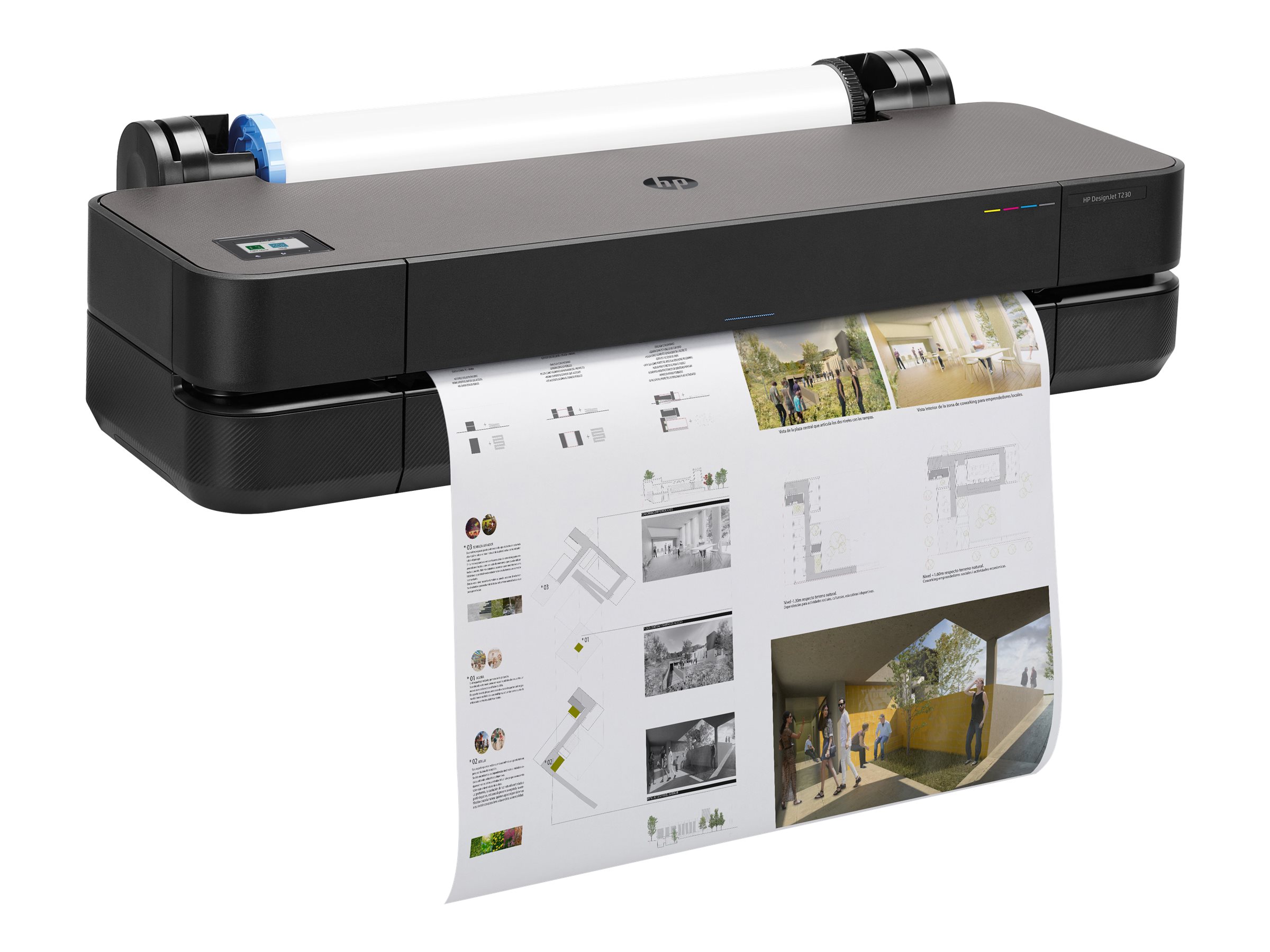

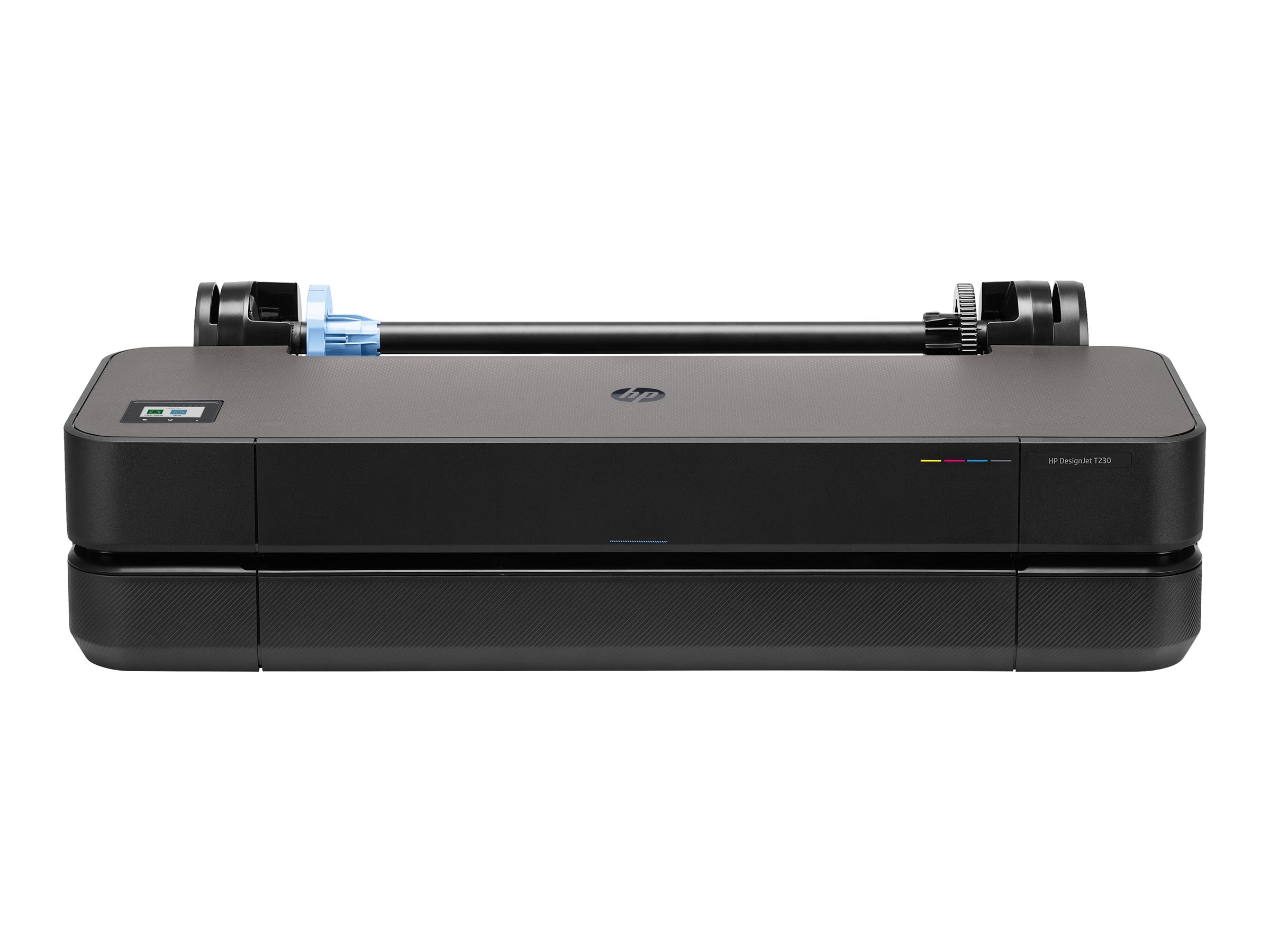

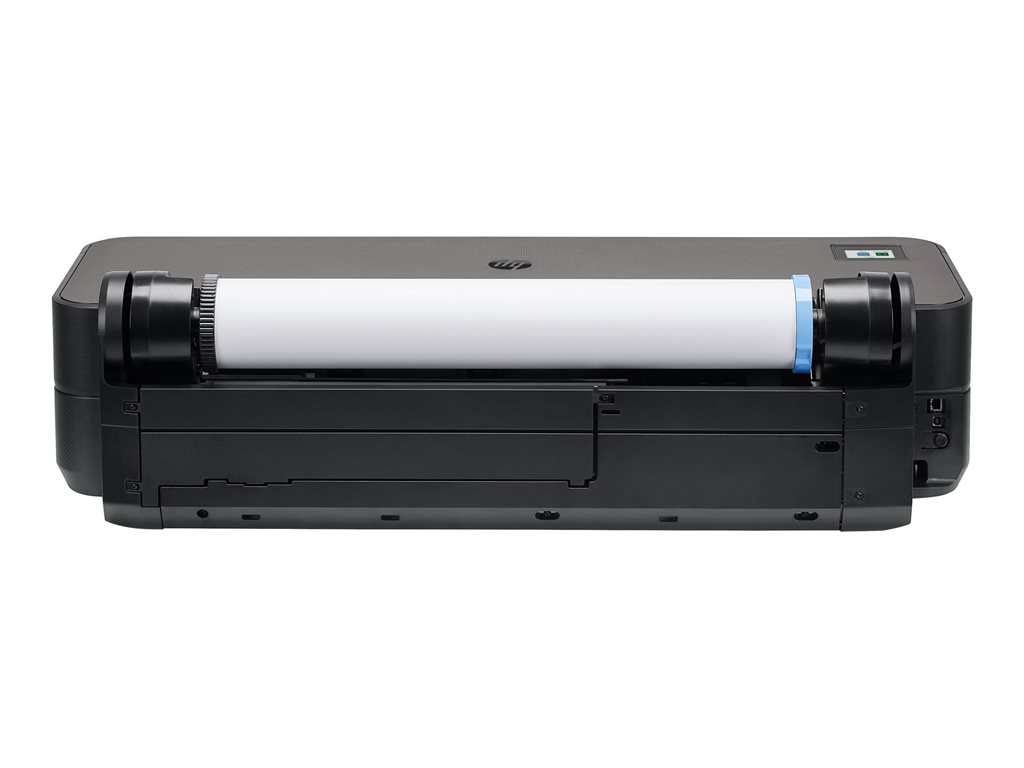

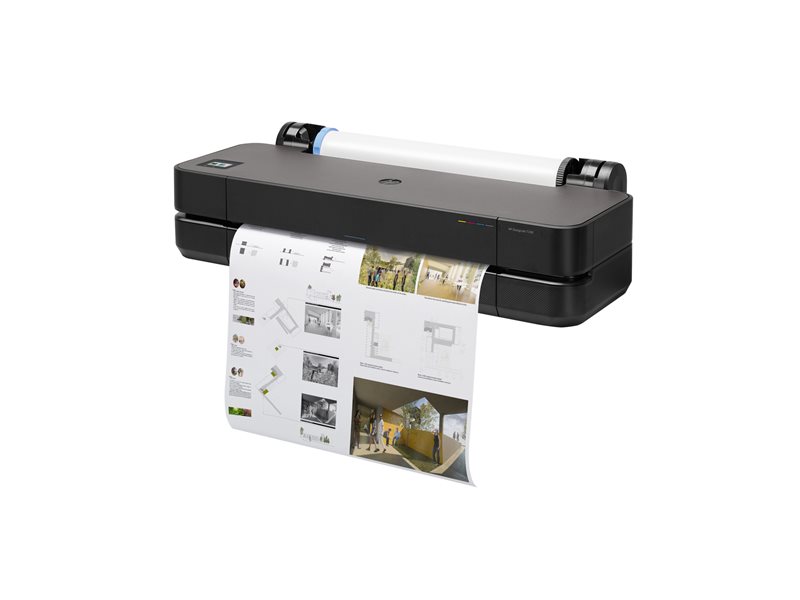

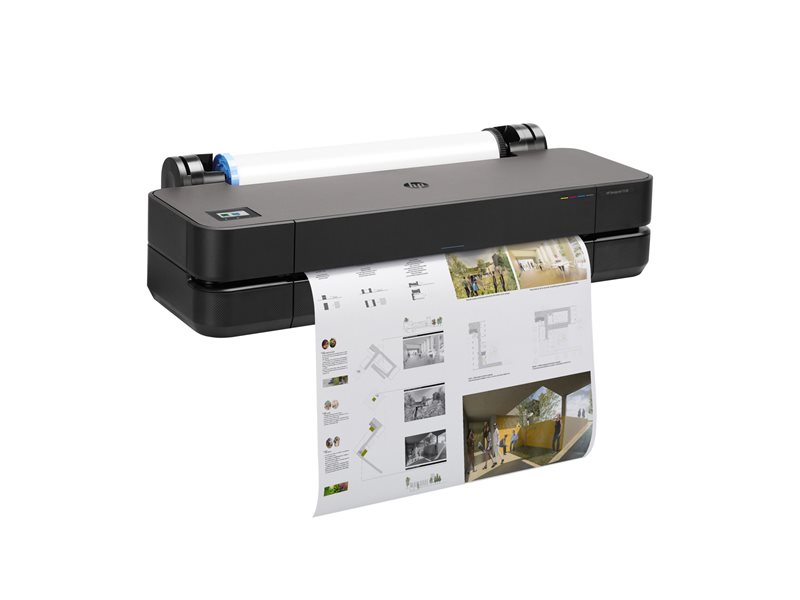

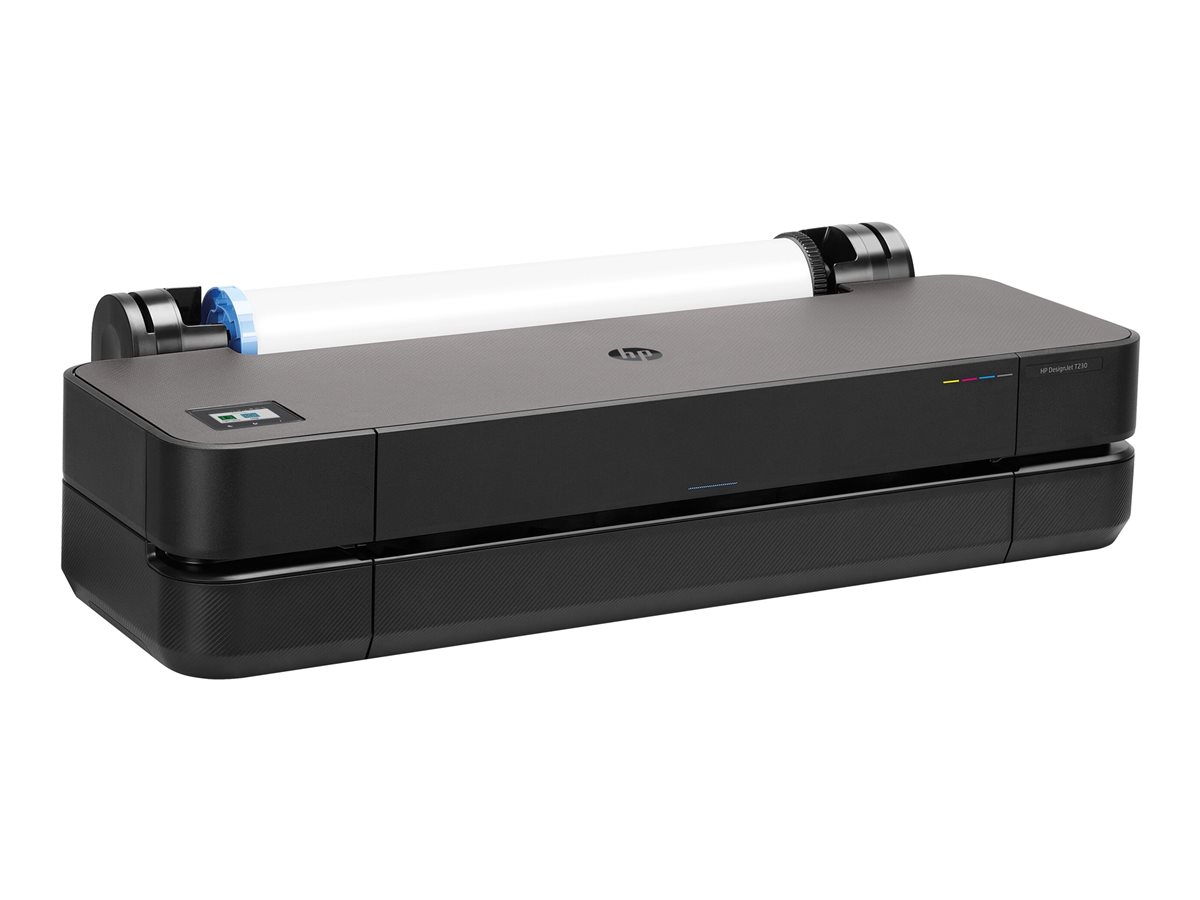

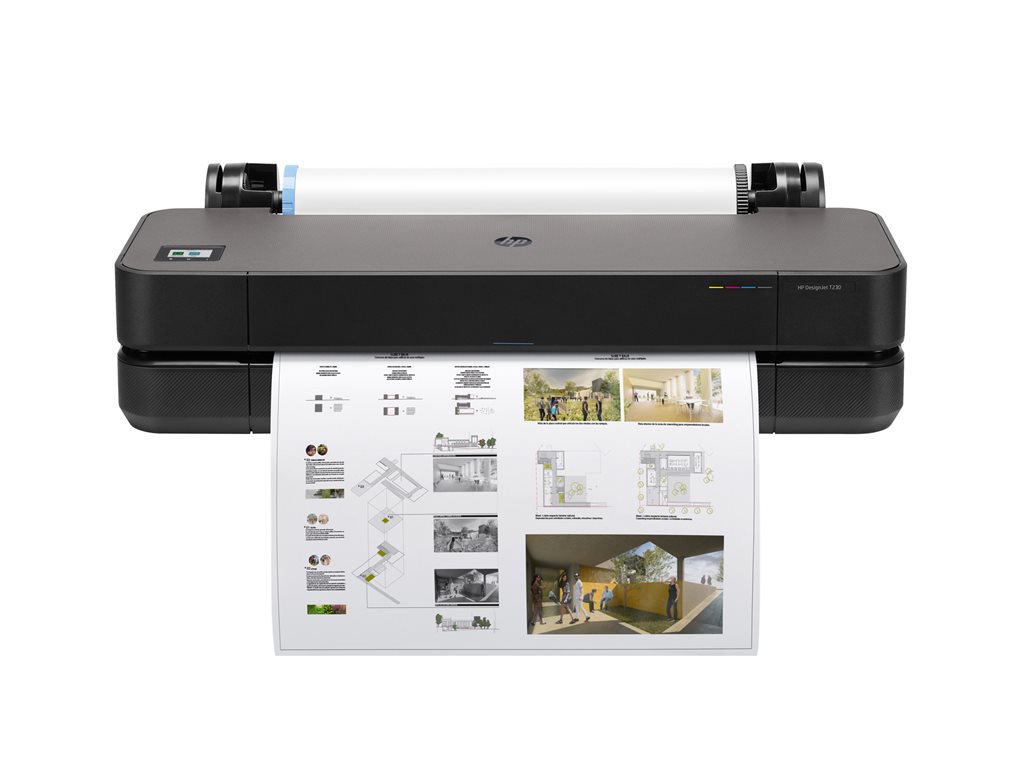

| Product Description | HP DesignJet T230 - 2025 Edition - large-format printer - color - ink-jet |
| Printer Type | 24" large-format printer - ink-jet - color |
| Weight | 47.4 lbs |
| Localization | English, French, Spanish, Portuguese / United States, Canada, Latin America |
| Inkjet Technology | HP Thermal Inkjet |
| Ink Palette Supported (Colors) | 4-ink - cyan, magenta, yellow, pigment black |
| Max Media Size | A1 (23.4 in x 33.1 in), ANSI D (22 in x 34 in) |
| Min Media Size (Custom) | 8.25 in x 11 in |
| Max Media Size (Custom) | 24 in |
| Print Speed | Up to 0.6 min/page - A1 (23.4 in x 33.1 in) ¦ Up to 0.6 min/page - ANSI D (22 in x 34 in) |
| Max Resolution (B&W) | 2400 x 1200 dpi |
| Max Resolution (Color) | 2400 x 1200 dpi |
| Interface | Gigabit LAN, USB 2.0, Wi-Fi |
| AirPrint Enabled | Yes |
| RAM Installed (Max) | 512 MB (512 MB) |
| Language Simulation | JPEG, URF |
| Media Type | Bond paper, film, technical paper, plain paper, photo paper, glossy paper, self-adhesive paper, semi-gloss paper |
| Networking | Print server |
| Printer Features | Print from mobile device, 4.1 kg max roll weight, remote print |
| Power | AC 100-240 V |
| Environmental Standards | EPEAT Gold |
| Manufacturer Warranty | 2-year warranty |
| Dimensions (WxDxH) | 39.9 in x 17.3 in x 11.2 in |
| General | |
| Printer Type | 24" large-format printer - ink-jet - color |
| Localization | English, French, Spanish, Portuguese / United States, Canada, Latin America |
| Expansion / Connectivity | |
| Connections | 1 x USB 2.0 ¦ 1 x Gigabit LAN - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited hardware warranty - 2 years |
| Miscellaneous | |
| Included Accessories | Spindle, setup poster |
| Compliant Standards | FCC Class B certified, ICES Class B, EMC Class B, RED, ACMA Class B, RSM Class B, CCC Class B, VCCI Class B, KCC Class B, EU RoHS, REACH, WEEE, ERP, UL ECOLOGO certified inks, EU Low Voltage Directive, EN 60950-1, EN 62368-1, EAC, Ukraine, PSB, CCC, IRAM, BIS, NYCE, TLS v1.2 |
| Printer | |
| Inkjet Technology | HP Thermal Inkjet |
| Ink Palette Supported (Colors) | 4-ink - cyan, magenta, yellow, pigment black |
| Nozzle Configuration | 1376 nozzles |
| Minimum Ink Droplet Size | 12 pl (black), 5.5 pl (color) |
| Ink Cartridge Configuration | 4 cartridges (1 each: cyan, magenta, yellow, pigment black) |
| Print Speed | Up to 0.6 min/page - A1 (23.4 in x 33.1 in) ¦ Up to 0.6 min/page - ANSI D (22 in x 34 in) |
| Connectivity Technology | Wireless |
| Interface | Gigabit LAN, USB 2.0, Wi-Fi |
| AirPrint Enabled | Yes |
| Max Resolution (B&W) | 2400 x 1200 dpi |
| Max Resolution (Color) | 2400 x 1200 dpi |
| Language Simulation | JPEG, URF |
| Printer Features | Print from mobile device, 4.1 kg max roll weight, remote print |
| RAM | |
| RAM Installed (Max) | 512 MB / 512 MB (max) |
| Media Handling | |
| Media Type | Bond paper, film, technical paper, plain paper, photo paper, glossy paper, self-adhesive paper, semi-gloss paper |
| Max Media Size | A1 (23.4 in x 33.1 in), ANSI D (22 in x 34 in) |
| Min Media Size (Custom) | 8.25 in x 11 in |
| Max Media Size (Custom) | 24 in |
| Media Sizes | A4 (8.25 in x 11.7 in), A3 (11.7 in x 16.5 in), A2 (16.5 in x 23.4 in), A1 (23.4 in x 33.1 in), Letter A Size (8.5 in x 11 in), Ledger B Size (11 in x 17 in), ANSI C (17 in x 22 in), ANSI D (22 in x 34 in) |
| Media Thickness Range | Up to 0.012 in |
| Media Weight | 60 g/m² - 280 g/m² |
| Networking | |
| Networking | Print server |
| Security Protocols & Features | SNMP 1, SNMP 2, 802.1x |
| Power | |
| Power Device | Power supply - internal |
| Voltage Required | AC 100-240 V |
| Frequency Required | 50/60 Hz |
| Power Consumption Operational | 35 Watt |
| Power Consumption Stand by | 0.2 Watt |
| Power Consumption Sleep | 2.1 Watt |
| Software / System Requirements | |
| Software Included | HP Click |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 80% RH |
| Sound Emission (Idle) | 16 dBA |
| Sound Emission (Operating) | 42 dBA |
| Dimensions & Weight | |
| Width | 39.9 in |
| Depth | 17.3 in |
| Height | 11.2 in |
| Weight | 47.4 lbs |

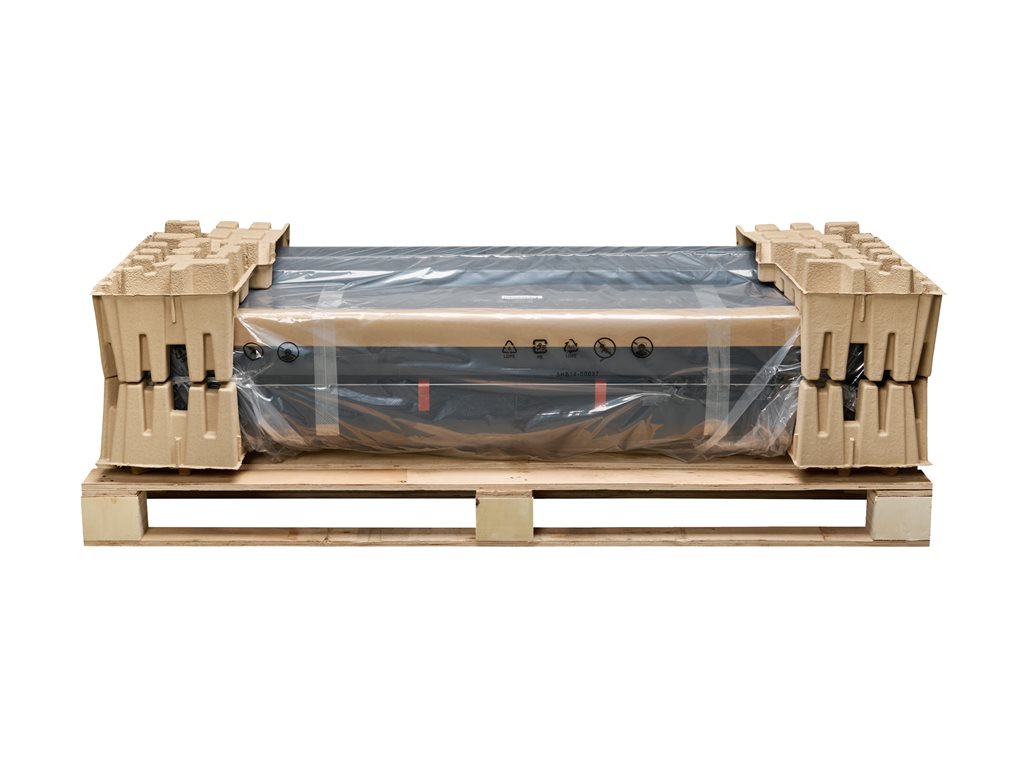

| Dimensions & Weight (Shipping) | |
| Width (Shipping) | 45.5 in |
| Depth (Shipping) | 22.6 in |
| Height (Shipping) | 15.9 in |
| Weight (Shipping) | 59.52 lbs |
| Environmental Standards | |
| EPEAT Compliant | EPEAT Gold |
| ENERGY STAR | Yes |
