AI PC - 177-degree hinge design - Intel Core Ultra 7 - 155U / up to 4.8 GHz - no OS - Intel Graphics - 0 GB RAM - 13.3" - Gigabit Ethernet - CTO
| Main Specifications | |
|---|---|
| Product Description | HP EliteBook 630 G11 Notebook - AI PC - 13.3" - Intel Core Ultra 7 - 155U - 0 GB RAM |
| Product Type | Notebook - AI PC - 177-degree hinge design |
| Operating System | No OS |
| Processor | Intel Core Ultra 7 (Series 1) - 155U / 1.7 GHz, up to 4.8 GHz / 12 MB Cache |
| Neural Processor Unit (NPU) | Intel AI Boost |
| Memory | 0 GB DDR4 |
| Display | 13.3" WLED @ 60 Hz |
| Graphics | Intel Graphics |
| Input Device | ClickPad |
| Networking | Gigabit Ethernet |
| Battery | 3-cell |
| Features | HP Tamper Lock |
| Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Dimensions (WxDxH) | 11.9 in x 8.5 in x 0.7 in |
| Weight | 2.89 lbs |
| Pricing Type | CTO |
| Environmental Standards | TCO Certified Notebooks 9, ENERGY STAR Qualified EPEAT Gold |
| General | |
| Product Type | Notebook - 177-degree hinge design |
| AI Level | AI PC |
| Operating System | No operating system |
| Memory | |
| RAM | 0 GB |
| Max RAM Supported | 64 GB |
| Technology | DDR4 SDRAM |
| Form Factor | SO-DIMM 260-pin |
| Slots Qty | 2 |
| Empty Slots | 2 |
| Miscellaneous | |
| Integrated Options | HP Tamper Lock |
| Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Features | BIOS Absolute Persistence, HP Automatic Drive Lock, HP DriveLock, HP Fast Charge, BIOS Update via Network, Secured-core PC enabled |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately), chassis intrusion sensor |
| Security Slot Type | Kensington nano security slot |
| Compliant Standards | CSA, VCCI, BSMI, GS, ISO 9241, CCC, FIPS 140-2 Level 2, FCC, RoHS, KCC, CISPR, ICES, KC, SRRC, NCC, low halogen, UL 62368-1, TEC, KES, Low Blue Light certified (LBL), Ukraine NSoC, EAEU Compliance, Saudi Arabian Compliance |
| Pricing Type | CTO |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Shock Tolerance (operating) | 40 g @ 2 ms half-sine |
| Shock Tolerance (non-operating) | 240 g @ 2 ms half-sine |
| Vibration Tolerance (operating) | 1.043 g @ RMS (random) |
| Vibration Tolerance (non-operating) | 3.5 g @ RMS (random) |
| Battery | |
| Technology | 3-cell lithium polymer |
| Display | |
| Type | 13.3" |
| LCD Backlight Technology | WLED backlight |
| V-Sync Rate at Max Res. | 60 Hz |
| Widescreen | Yes |
| Features | Anti-glare, narrow bezel bent |
| Communications | |
| Network Interface | Gigabit Ethernet |
| Dimensions & Weight | |
| Dimensions (WxDxH) | 11.9 in x 8.5 in x 0.7 in |
| Weight | 2.89 lbs |
| Shipping Dimensions (WxDxH) / Weight | 2.7 in x 17.7 in x 12 in |
| Processor / Chipset | |
| CPU | Intel Core Ultra 7 (Series 1) 155U / 1.7 GHz |
| Max Turbo Speed | 4.8 GHz |
| Number of Cores | 12-core |
| Performance Cores | 2 |
| Efficient Cores | 10 |
| Cache | L3 - 12 MB |
| Features | Hyper-Threading Technology, Intel Turbo Boost Technology, Intel Smart Cache |
| Audio & Video | |
| Graphics Processor | Intel Graphics |
| Sound | Dual stereo speakers, dual array microphone |
| Codec | Realtek ALC3247 |
| Audio Features | Output: discrete amplifiers, Poly Studio |
| Input | |
| Type | Keyboard, ClickPad |
| Features | Volume control, multi-touch clickpad, gesture function, precision touchpad |
| Connections & Expansion | |

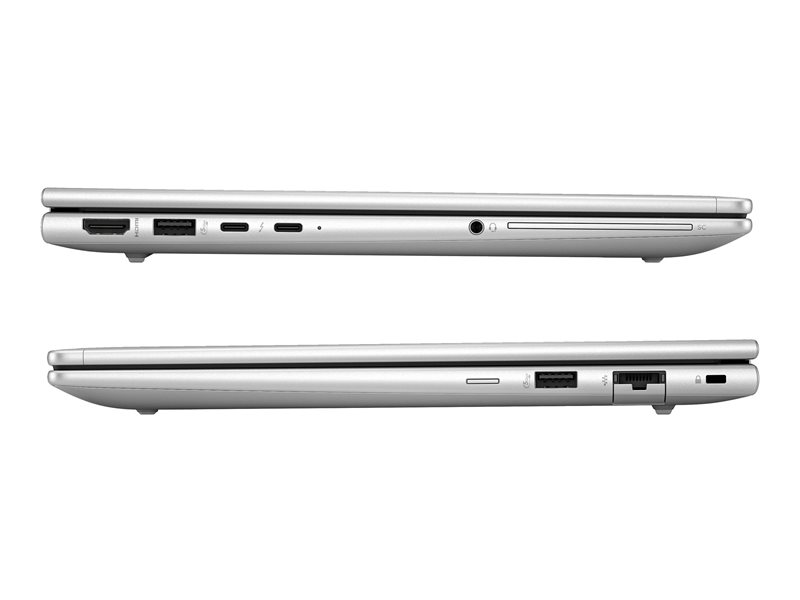

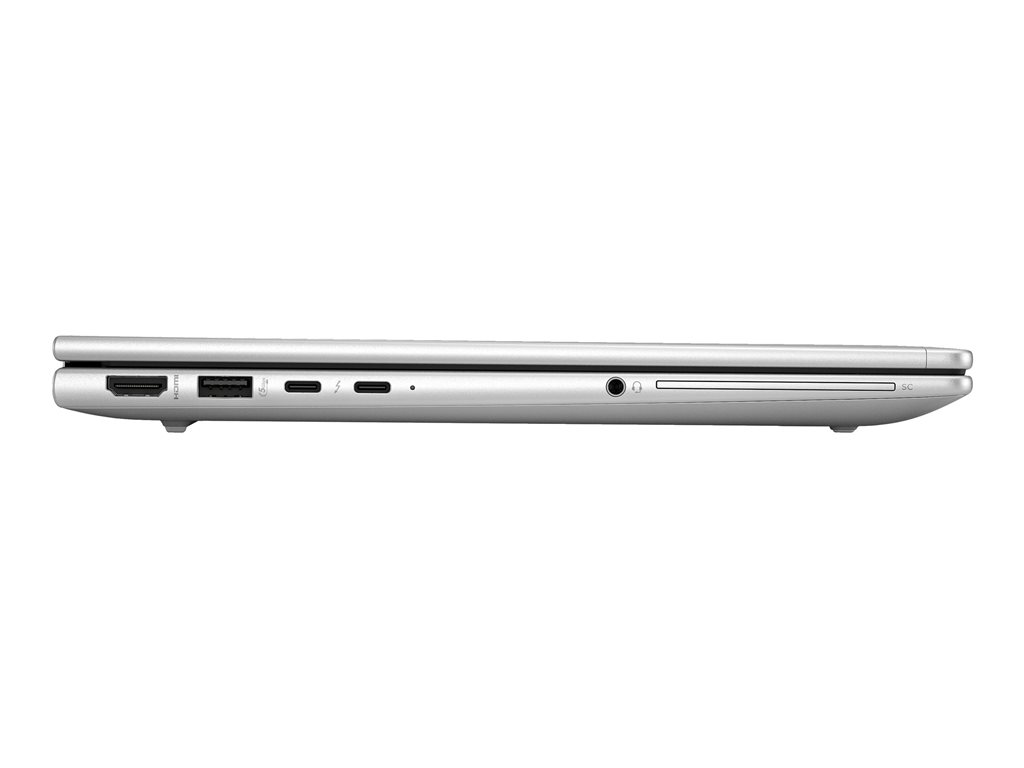

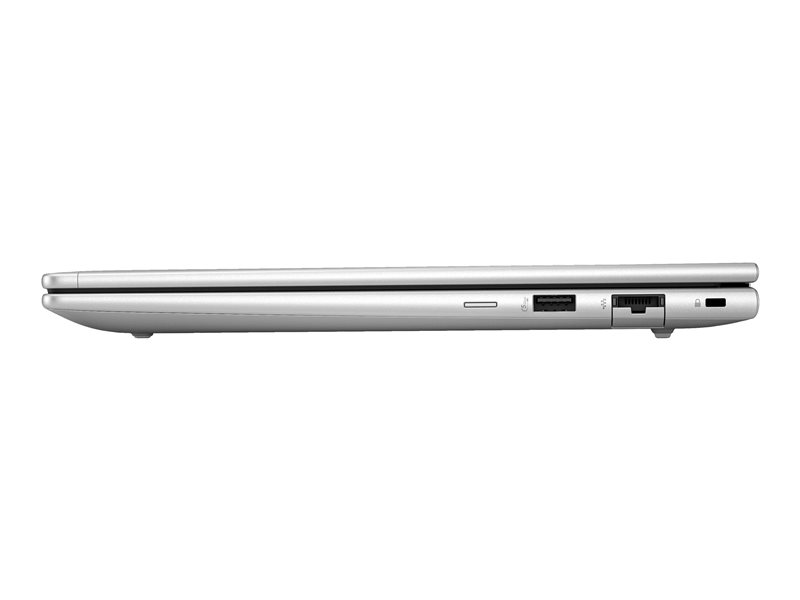

| Interfaces Details | 2 x USB4 (supports Thunderbolt 4, DisplayPort 1.4 Alt Mode) (Power Delivery) ¦ USB 3.2 Gen 1 (charging) ¦ USB 3.2 Gen 1 (powered) ¦ HDMI ¦ Headphone/microphone combo jack ¦ LAN (RJ-45) |
| Sustainability Information | |
| TCO Certified | - TCO Certified Notebooks 9 |
| EPEAT Compliant | EPEAT Gold |
| ENERGY STAR Certified | Yes |
| Product Recycled Content | Post-consumer recycled plastic, ocean-bound plastics, recycled metal |
| Neural Processor Unit (NPU) | |
| Neural Processor Unit (NPU) | Intel AI Boost |
| Sparsity Support | Yes |
| AI Software Frameworks Supported by NPU | DirectML, OpenVINO, WindowsML, ONNX RT |
| Windows Studio Effects Support | Yes |
