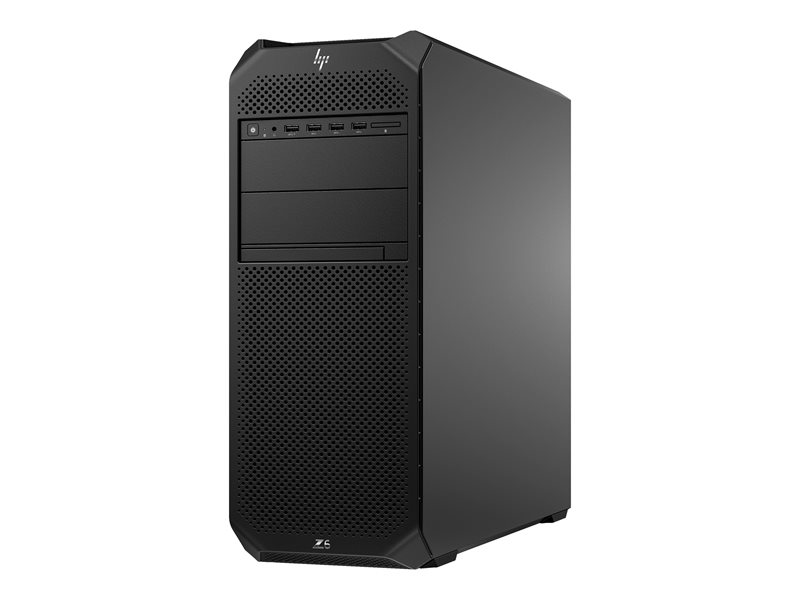

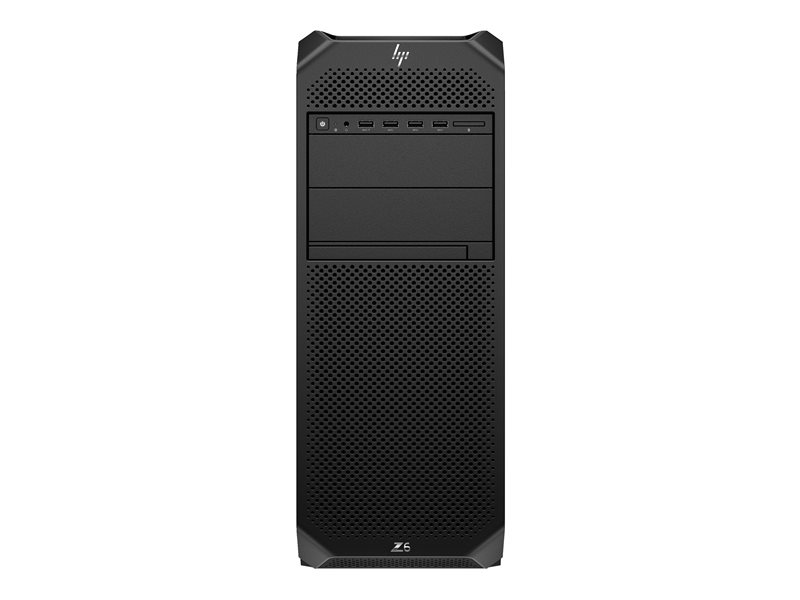

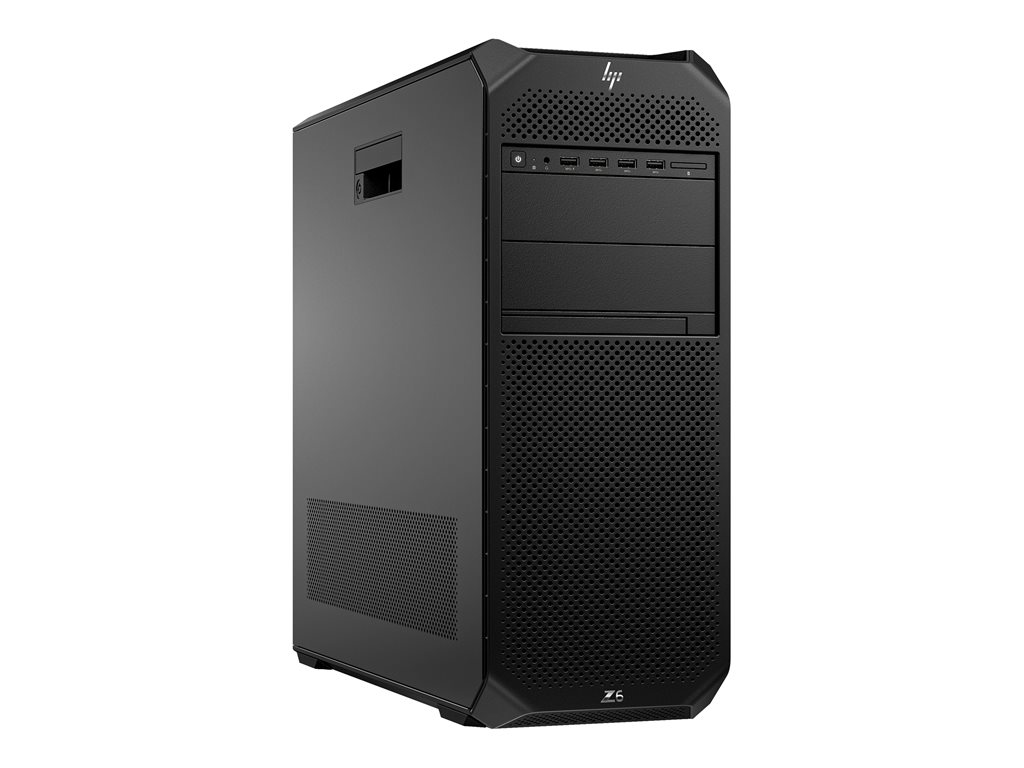

AI Workstation - tower 4U - 1 x Ryzen ThreadRipper PRO 7965WX / up to 5.3 GHz - RAM 64 GB - SSD 1 TB - HP Z Turbo Drive, TLC - DVD-Writer - T400 - Gigabit Ethernet - Win 11 Pro - monitor: none - keyboard: US - black
| Main Specifications | |
|---|---|
| Product Description | HP Workstation Z6 G5 A - tower - AI Workstation - Ryzen ThreadRipper PRO 7965WX 4.2 GHz - 64 GB - SSD 1 TB - US |
| Type | Workstation - tower - AI Workstation |
| Height (Rack Units) | 4U |
| Localization | Language: English / region: United States |
| Processor | 1 x AMD Ryzen ThreadRipper PRO 7965WX / 4.2 GHz (up to 5.3 GHz, (24-core) |
| Processor Socket | Socket SP6 |
| Cache Memory | 128 MB L3 cache |
| Cache Per Processor | 128 MB |
| RAM | 64 GB (installed) / 1 TB (max) - DDR5 SDRAM - ECC |
| Storage Controller | SATA (SATA 6Gb/s) |
| Hard Drive | SSD 1 TB - PCI Express 4.0 - M.2 - HP Z Turbo Drive, triple-level cell (TLC) |
| Optical Storage | DVD-Writer |
| Graphics Controller | PCIe 3.0 x16 - NVIDIA T400 |
| Video Memory | 4 GB GDDR6 SDRAM |
| Networking | 1GbE |
| Keyboard | US |
| OS Provided | Windows 11 Pro |
| Software Included | HP Support Assistant, HP Performance Advisor, HP PC Hardware Diagnostics UEFI, HP Secure Erase, HP BIOSphere, HP BIOS Configuration Utility (free download), HP Image Assistant, HP Documentation, HP Notifications, HP System Software Manager (free download), HP Sure Click, HP Sure Run, HP Sure Recover, HP Manageability Integration Kit, HP Privacy Settings, HP Sure Sense, HP Sure Admin, myHP, HP Easy Clean, HP Smart Support, HP PC Hardware Diagnostics Windows, HP Anyware, HP Services Scan, HP Data Science Stack Manager, HP Sure Start |
| Color | Black |
| Dimensions (WxDxH) | 6.7 in x 18.3 in x 17.5 in |
| Weight | 29.1 lbs |
| Environmental Standards | TCO Certified Desktops 9 EPEAT Gold |
| General | |
| Type | Workstation |
| AI Level | AI Workstation |
| Product Form Factor | Tower - 4U |
| Sensors | HP Tamper Lock |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Color | Black |
| Localization | Language: English / region: United States |
| Expansion / Connectivity | |
| Bays | 1 (total) / 0 (free) x external 5.25" ¦ 1 (total) / 1 (free) x internal 5.25" |
| Slots | 4 (total) / 3 (free) x PCIe 5.0 x16 ¦ 2 (total) / 2 (free) x PCIe 5.0 x4 ¦ 1 (total) / 1 (free) x PCIe 4.0 x16 ¦ 3 (total) / 3 (free) x PCIe 4.0 x4 ¦ 2 (total) / 2 (free) x M.2 Card (PCIe 5.0 x4 mode) ¦ 2 (total) / 1 (free) x M.2 Card (PCIe 4.0 x4 mode) |
| Interfaces | 1 x headphones/microphone (1 in front) (CTIA headset support) ¦ 10 x USB 3.2 Gen 1 - Type A (4 front, 6 rear) (one of them is charging) ¦ 1 x audio line-out/line-in (1 rear) ¦ 1 x LAN (Gigabit Ethernet) (1 rear) ¦ 3 x Mini DisplayPort 1.4a |
| Miscellaneous | |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately), chassis intrusion sensor |
| Security Slot Type | Kensington security slot |
| Compliant Standards | RoHS, Green Mark, Common Criteria EAL4+, CECP, CEL, SEPA, low halogen, ACPI 6.0, Korea Eco-Label |
| RAM | |
| Installed Size | 64 GB (installed) / 1 TB (max) |
| Technology | DDR5 SDRAM - ECC |
| Effective Memory Speed | 2600 MHz |
| Rated Memory Speed | 2800 MHz |
| Form Factor | DIMM 288-pin |
| Slots | 8 (total) / 6 (empty) |
| Configuration Features | 2 x 32 GB |
| Networking | |
| Ethernet Controller | Realtek RTL8111EPP |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Features | Wake on LAN (WoL), PXE 2.1 support |
| Compliant Standards | DASH |
| Power | |
| Device Type | Power supply |
| Installed Qty | 1 |
| Power Provided | 775 watt |
| Efficiency | 90% |
| Power Factor Correction | Yes (active) |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 8 - 85% RH (non-condensing) |
| Storage Controller | |
| Type | 1 x SATA |
| Controller Interface Type | SATA 6Gb/s |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 10 |
| Cache Memory | |
| Installed Size | L3 cache - 128 MB |
| Cache Per Processor | 128 MB |
| Optical Storage | |
| Type | DVD-Writer |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Interface Type | PCIe 3.0 x16 |
| Graphics Processor | NVIDIA T400 |
| Video Memory | 4 GB GDDR6 SDRAM |
| Bandwidth | 80 GBps |
| Video Interfaces | DisplayPort |
| Audio Output | |
| Compliant Standards | High Definition Audio |
| Operating System / Software | |
| OS Provided | Windows 11 Pro English |
| Software | HP Support Assistant, HP Performance Advisor, HP PC Hardware Diagnostics UEFI, HP Secure Erase, HP BIOSphere, HP BIOS Configuration Utility (free download), HP Image Assistant, HP Documentation, HP Notifications, HP System Software Manager (free download), HP Sure Click, HP Sure Run, HP Sure Recover, HP Manageability Integration Kit, HP Privacy Settings, HP Sure Sense, HP Sure Admin, myHP, HP Easy Clean, HP Smart Support, HP PC Hardware Diagnostics Windows, HP Anyware, HP Services Scan, HP Data Science Stack Manager, HP Sure Start |
| Hard Drive | |
| Type | SSD - M.2 |
| Capacity | 1 x 1 TB |
| Interface Type | PCI Express 4.0 |
| Features | HP Z Turbo Drive, triple-level cell (TLC) |
| Input Device | |
| Type | Mouse, keyboard |
| Dimensions & Weight | |
| Width | 6.7 in |
| Depth | 18.3 in |
| Height | 17.5 in |
| Weight | 29.1 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 12.3 in |
| Shipping Depth | 23.3 in |
| Shipping Height | 24.8 in |
| Keyboard | |
| Keyboard Name | HP Business Slim Smart Card CCID Keyboard |
| Interface | USB |
| Localization & Layout | US |
| Mouse | |
| Mouse Name | HP 320M |
| Processor / Chipset | |
| CPU | AMD Ryzen ThreadRipper PRO 7965WX |
| Clock Speed | 4.2 GHz |
| Max Turbo Speed | 5.3 GHz |
| Number of Cores | 24-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| CPU Upgradability | Upgradable |
| CPU Socket | Socket SP6 |
| Chipset Type | AMD PRO 695 |
| Sustainability Information | |
| TCO Certified | TCO Certified Desktops 9 |
| EPEAT Compliant | EPEAT Gold |
