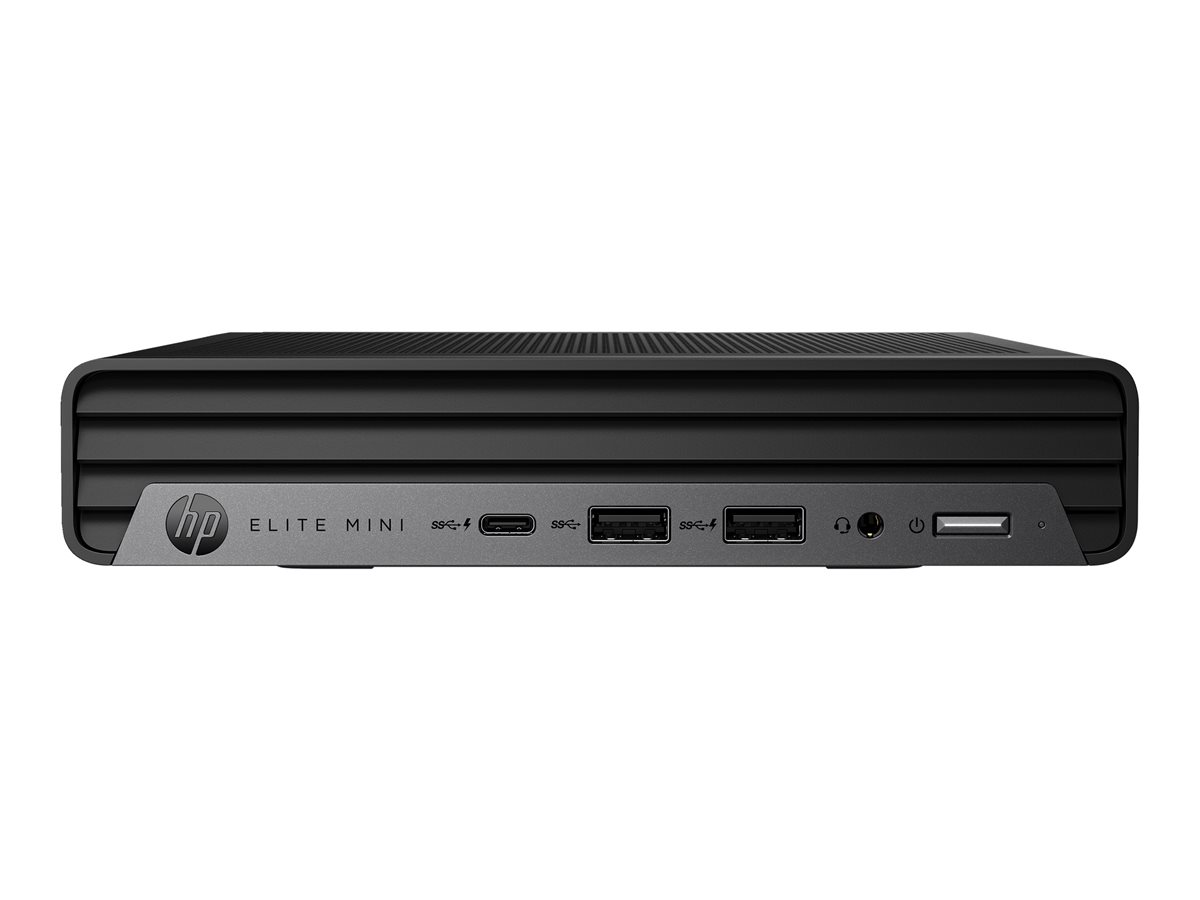

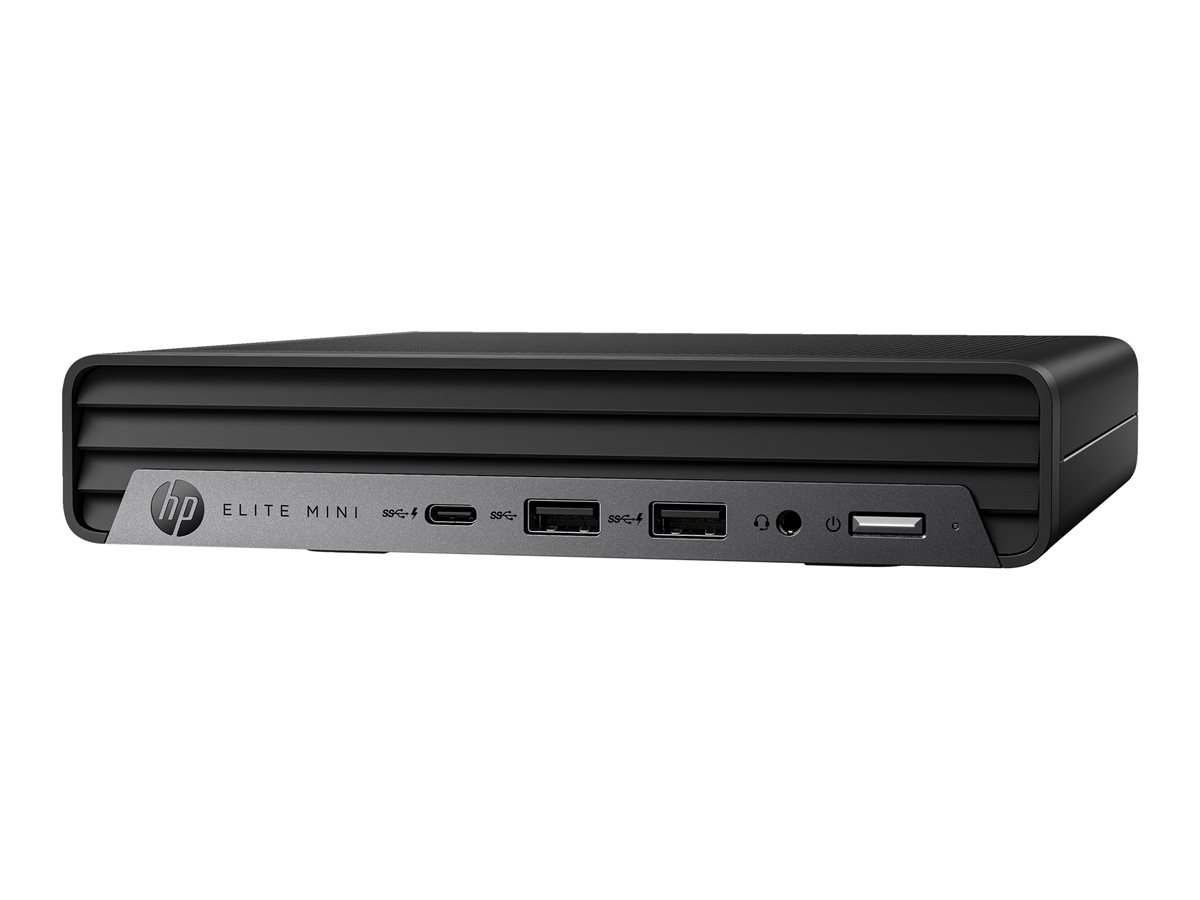

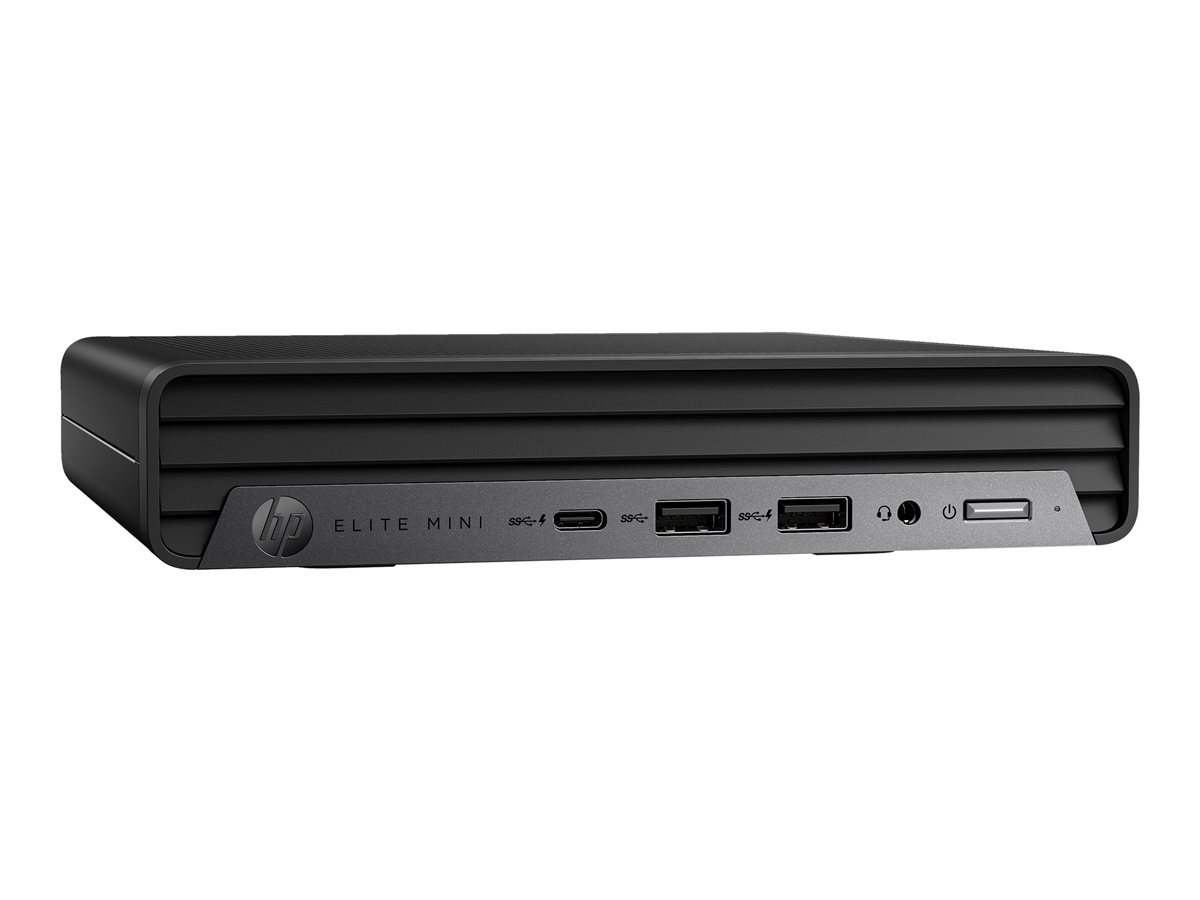

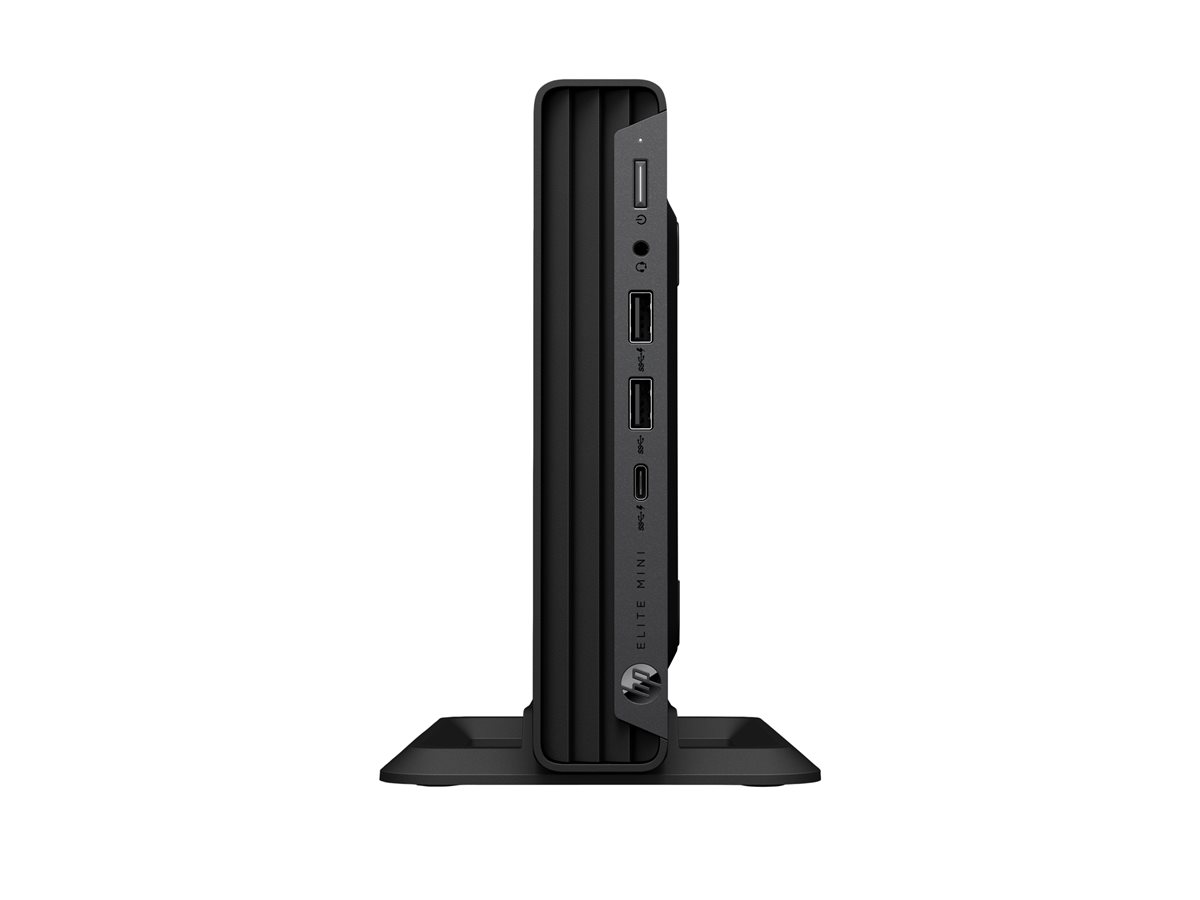

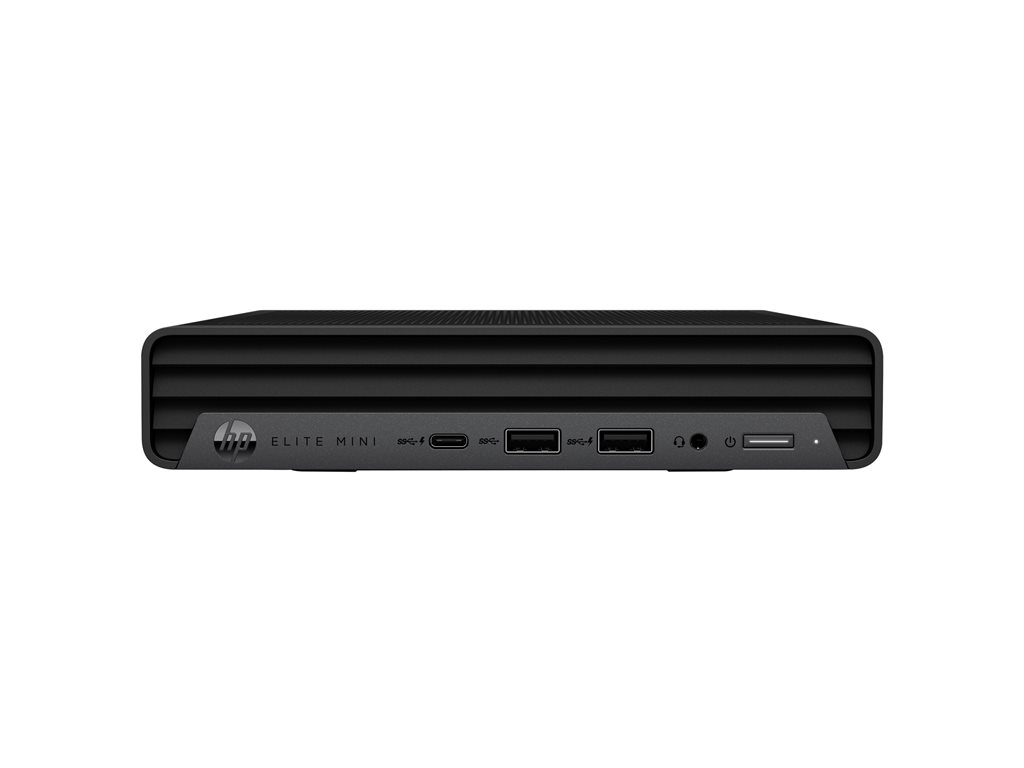

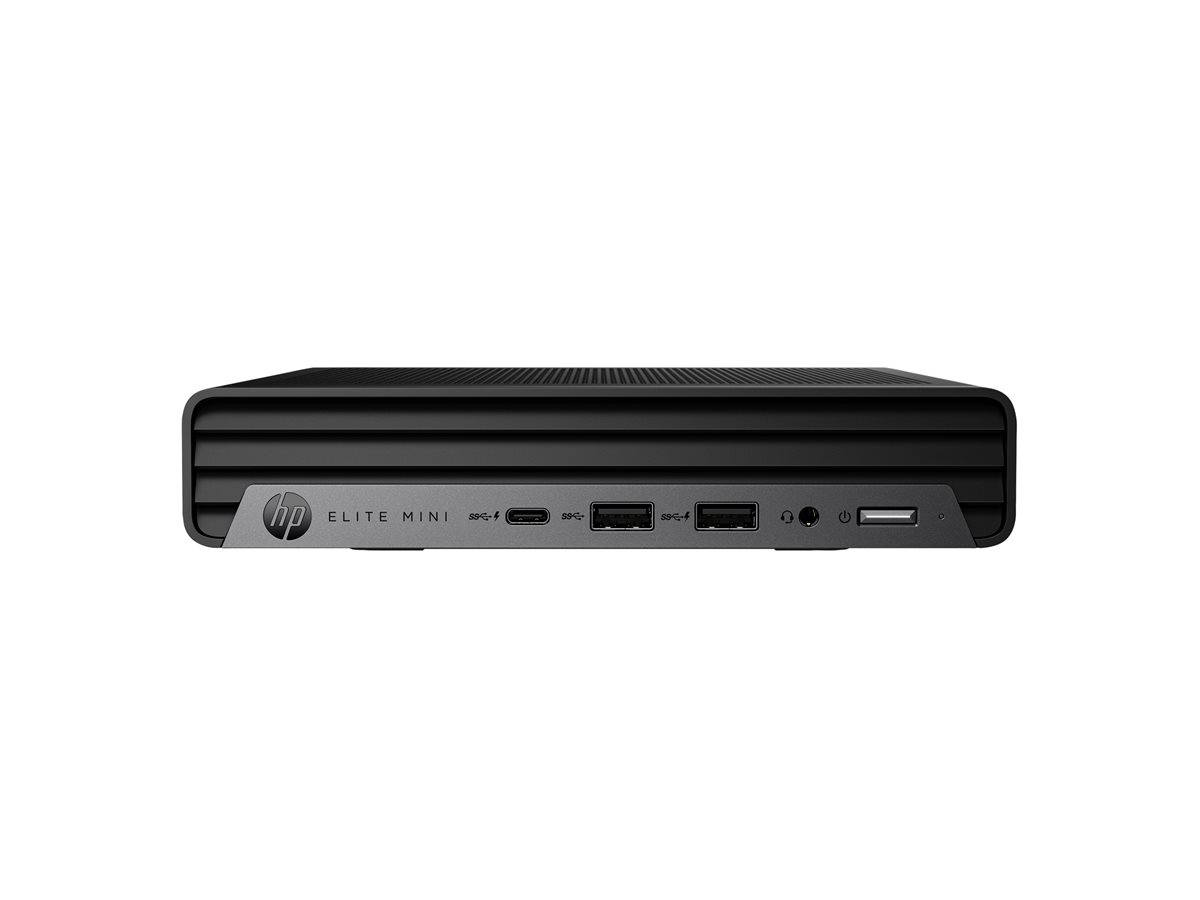

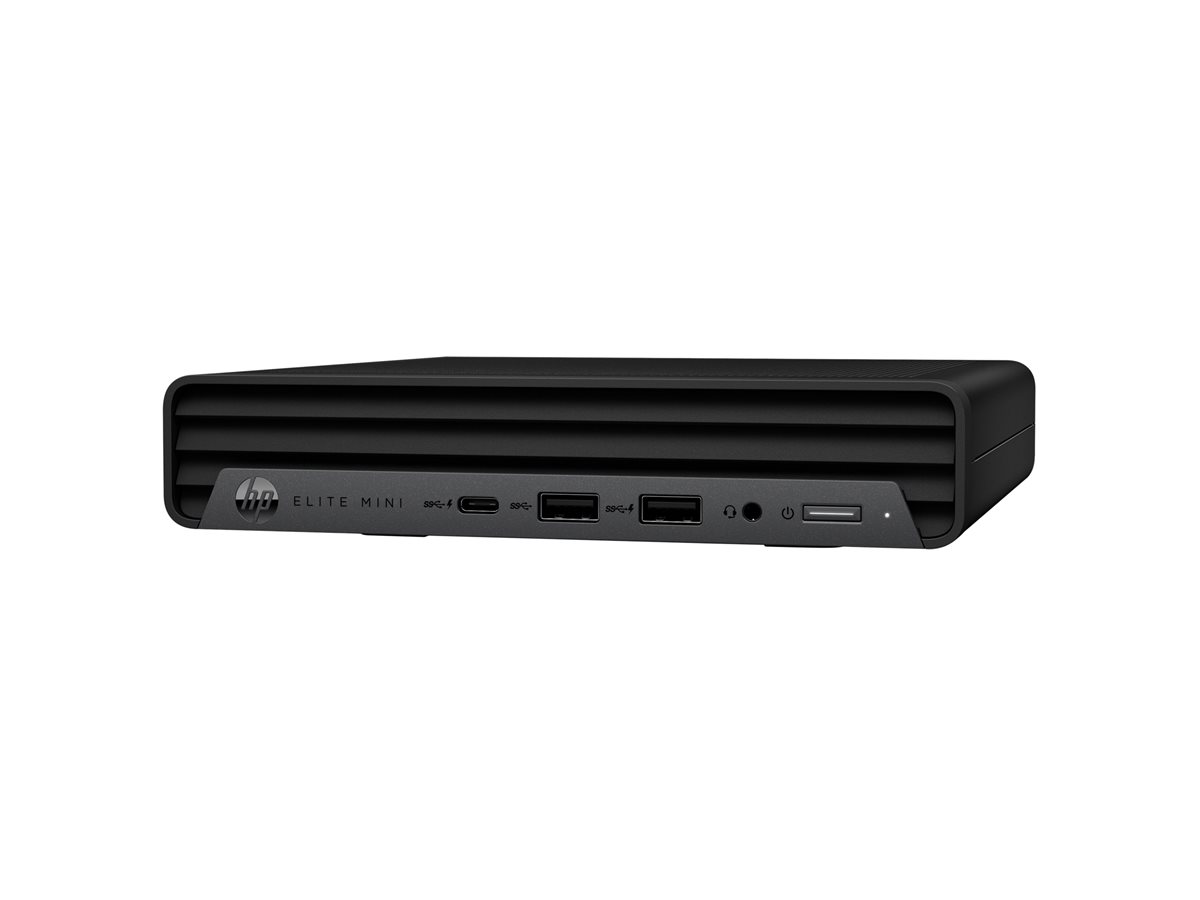

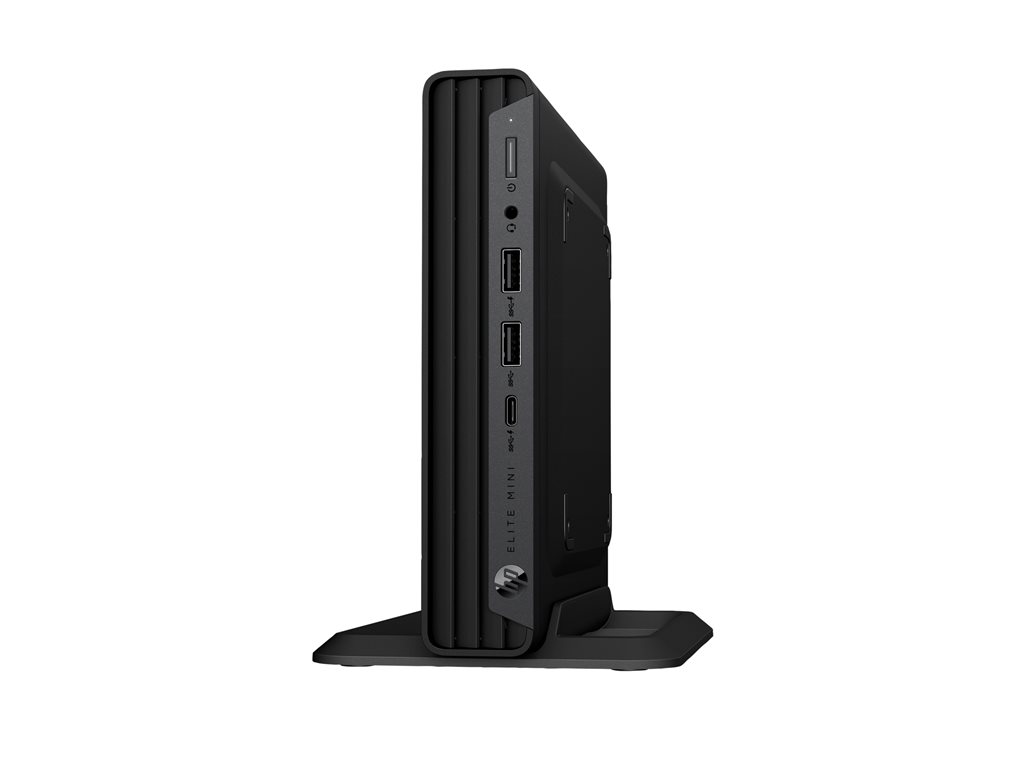

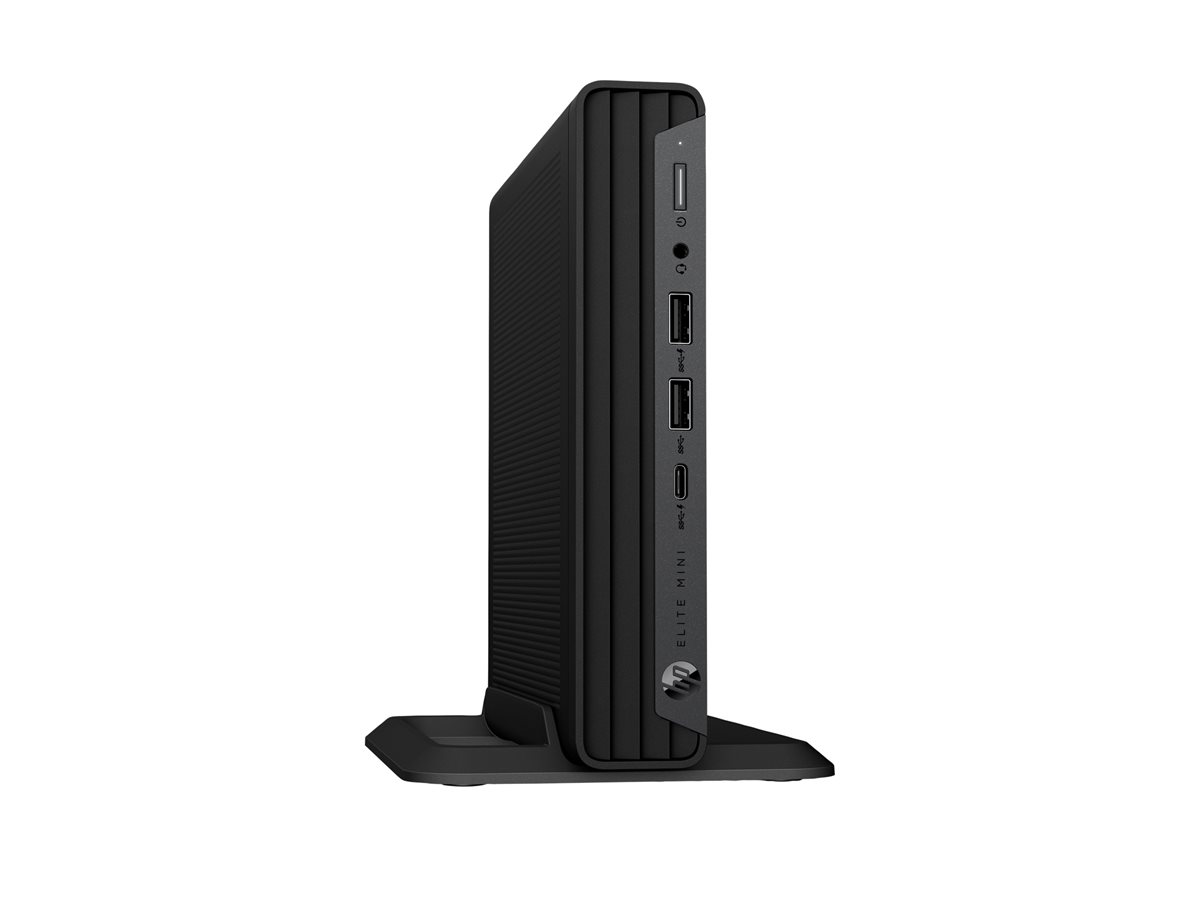

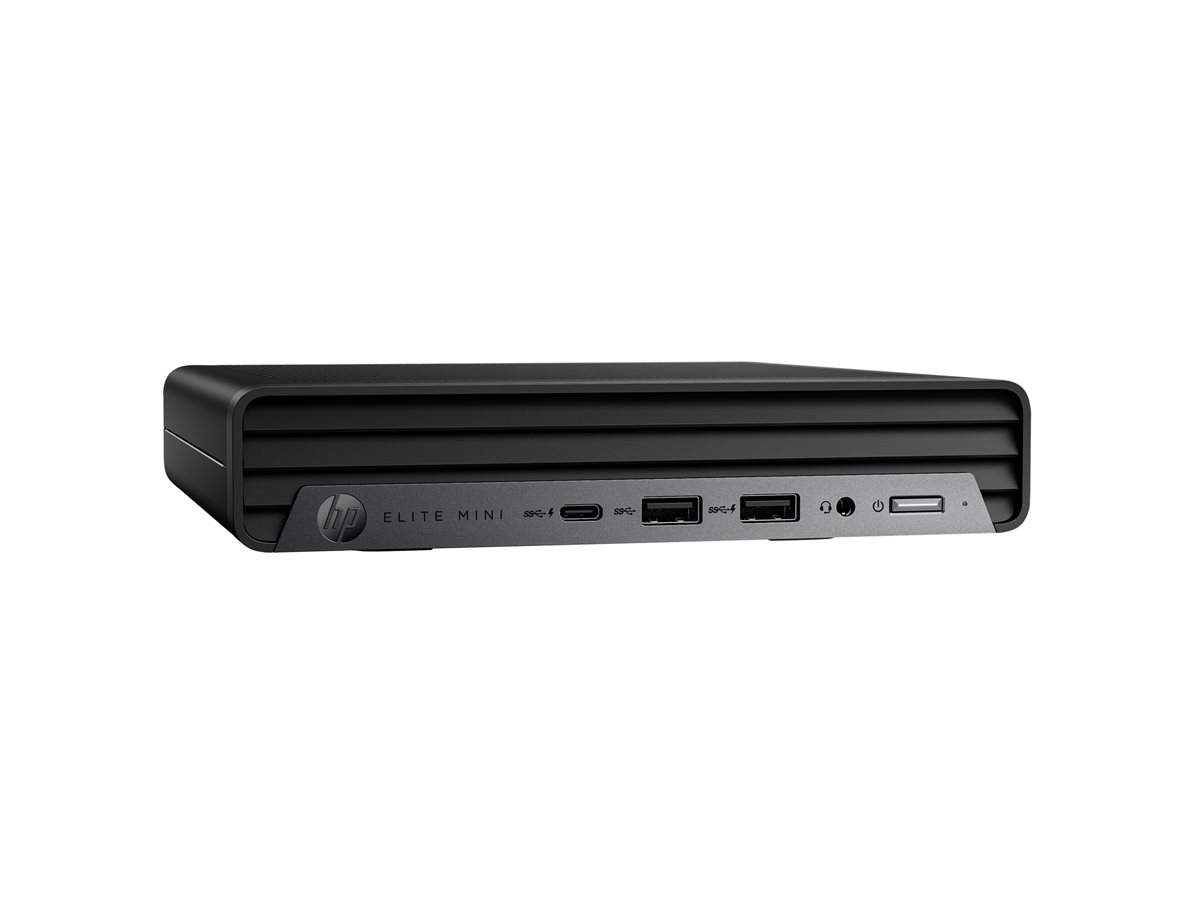

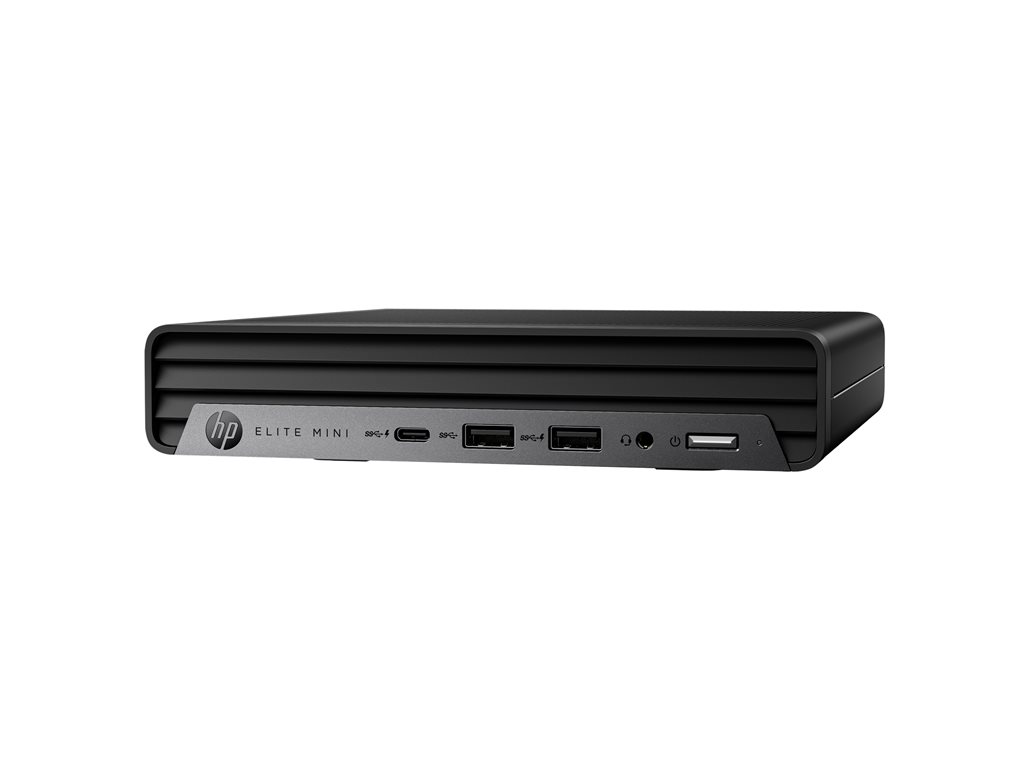

Mini desktop Core i5 i5-14500T / up to 4.8 GHz - RAM 8 GB - SSD 256 GB - NVMe - UHD Graphics 770 - IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3 - Win 11 Pro - monitor: none - keyboard: US - jack black - Smart Buy - with HP Wolf Pro Security Edition (1 year)
| Main Specifications | |
|---|---|
| Product Description | HP Elite 800 G9 - mini desktop Core i5 i5-14500T - 8 GB - SSD 256 GB - US - with HP Wolf Pro Security Edition (1 year) |
| Type | Personal computer - mini desktop |
| Localization | Language: English / region: United States |
| Processor | Intel Core i5 (14th Gen) i5-14500T (up to 4.8 GHz, (14-core) |
| Processor Main Features | Intel Turbo Boost Technology, 20 Threads |
| Cache Memory | 24 MB L3 cache |
| Cache Per Processor | 24 MB |
| RAM | 8 GB DDR5 SDRAM |
| Hard Drive | SSD 256 GB - PCI Express - M.2 - NVM Express (NVMe) |
| Optical Storage | No optical drive |
| Graphics Controller | Intel UHD Graphics 770 |
| Networking | 10Mb LAN, 802.11a, 802.11b/g/n, Wi-Fi 5, Wi-Fi 6E, Bluetooth 5.3 |
| Keyboard | US |
| OS Provided | Windows 11 Pro |
| Software Included | HP Support Assistant, HP PC Hardware Diagnostics UEFI, HP Secure Erase, HP Client Catalog (free download), HP Image Assistant (free download), HP Notifications, HP Connection Optimizer, HP Sure Click, HP Manageability Integration Kit, HP Privacy Settings, HP Sure Sense, HP Sure Admin, HP Client Management Script Library (free download), HP BIOSphere Gen6, myHP, Touchpoint Customizer for Commercial, HSA Fusion for Commercial, HSA Telemetry for Commercial, HP Desktop Support Utilities, HP Client Security Manager Gen7, HP Easy Clean, Absolute Persistence Module, HP Smart Support, HP Connect for Microsoft Endpoint Manager, HP Patch Assistant (free download), HP Sure Recover Gen5, HP Sure Run Gen5, HP PC Hardware Diagnostics Windows, HP Easy Clean Keyboard Driver, HP Sure Start Gen7, HP Driver Packs (free download), HP UEFI BIOS Certification level 2.7B |
| Color | Jack black |
| Dimensions (WxDxH) | 7 in x 6.9 in x 1.3 in |
| Weight | 3.13 lbs |
| Manufacturer Selling Program | HP Smart Buy |
| Environmental Standards | ENERGY STAR Qualified |
| Carbon Footprint | 160 kg carbon emissions |
| Bundled with | HP Wolf Pro Security Edition (1 year) |
| General | |
| Type | Personal computer |
| Product Form Factor | Mini desktop |
| Sensors | HP Tamper Lock |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Color | Jack black |
| Localization | Language: English / region: United States |
| Bundled with | HP Wolf Pro Security Edition (1 year) |
| Expansion / Connectivity | |
| Bays | 1 internal 2.5" |
| Slots | 2 M.2 Card - 2280 (for internal storage) ¦ 1 M.2 Card - 2230 (for WLAN) |
| Interfaces | 1 x headphones (1 front) ¦ 5 x USB 3.2 Gen 2 (2 front, 3 rear) ¦ 1 x USB-C 3.2 Gen 2x2 (1 front) ¦ 1 x antenna (1 rear) ¦ 1 x LAN - RJ-45 (1 rear) ¦ 2 x DisplayPort (2 rear) ¦ 1 x HDMI (1 rear) |
| Miscellaneous | |
| Theft/Intrusion Protection | Chassis intrusion sensor |
| Compliant Standards | FIPS 140-2 Level 2, Common Criteria EAL4+ |
| Manufacturer Selling Program | HP Smart Buy |
| RAM | |
| Installed Size | 8 GB |
| Technology | DDR5 SDRAM |
| Effective Memory Speed | 4800 MT/s |
| Form Factor | SO-DIMM 262-pin |
| Slots | 2 (total) / 1 (empty) |
| Configuration Features | 1 x 8 GB |
| Networking | |
| Wireless LAN Supported | Yes |
| Wireless NIC | Intel Wi-Fi 6E AX 211 |
| Data Link Protocol | Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3 |
| Features | Dual stream (2x2) |
| Power | |
| Device Type | Power adapter |
| Power Provided | 90 Watt |
| Efficiency | 89% |
| Power Factor Correction | Yes (active) |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 10 - 90% RH |
| Cache Memory | |
| Installed Size | L3 cache - 24 MB |
| Cache Per Processor | 24 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | Intel UHD Graphics 770 |
| Video Interfaces | HDMI, DisplayPort |
| Operating System / Software | |
| OS Provided | Windows 11 Pro English |
| Software | HP Support Assistant, HP PC Hardware Diagnostics UEFI, HP Secure Erase, HP Client Catalog (free download), HP Image Assistant (free download), HP Notifications, HP Connection Optimizer, HP Sure Click, HP Manageability Integration Kit, HP Privacy Settings, HP Sure Sense, HP Sure Admin, HP Client Management Script Library (free download), HP BIOSphere Gen6, myHP, Touchpoint Customizer for Commercial, HSA Fusion for Commercial, HSA Telemetry for Commercial, HP Desktop Support Utilities, HP Client Security Manager Gen7, HP Easy Clean, Absolute Persistence Module, HP Smart Support, HP Connect for Microsoft Endpoint Manager, HP Patch Assistant (free download), HP Sure Recover Gen5, HP Sure Run Gen5, HP PC Hardware Diagnostics Windows, HP Easy Clean Keyboard Driver, HP Sure Start Gen7, HP Driver Packs (free download), HP UEFI BIOS Certification level 2.7B |
| Hard Drive | |
| Type | SSD - M.2 |
| Capacity | 1 x 256 GB |
| Interface Type | PCI Express |
| Features | NVM Express (NVMe) |
| Input Device | |
| Type | Mouse, keyboard |
| Dimensions & Weight | |
| Width | 7 in |
| Depth | 6.9 in |
| Height | 1.3 in |
| Weight | 3.13 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 19.6 in |
| Shipping Depth | 5.2 in |
| Shipping Height | 9.3 in |
| Shipping Weight | 6.5 lbs |
| Keyboard | |
| Keyboard Name | HP 320K |
| Interface | USB |
| Localization & Layout | US |
| Mouse | |
| Mouse Name | HP 125 |
| Interface | USB |
| Processor / Chipset | |
| CPU | Intel Core i5 (14th Gen) i5-14500T |
| Max Turbo Speed | 4.8 GHz |
| Number of Cores | 14-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Processor Main Features | Intel Turbo Boost Technology, 20 Threads |
| Chipset Type | Intel Q670 |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
| Carbon Footprint | 160 kg carbon emissions |
| Manufacturing (kg CO2e) | 107 |
| Logistics (kg CO2e) | 0.8 |
| Use (kg CO2e) | 46 |
| EOL (kg CO2e) | 2 |
| Total Carbon w/o Use Phase (kg CO2e) | 114 |
