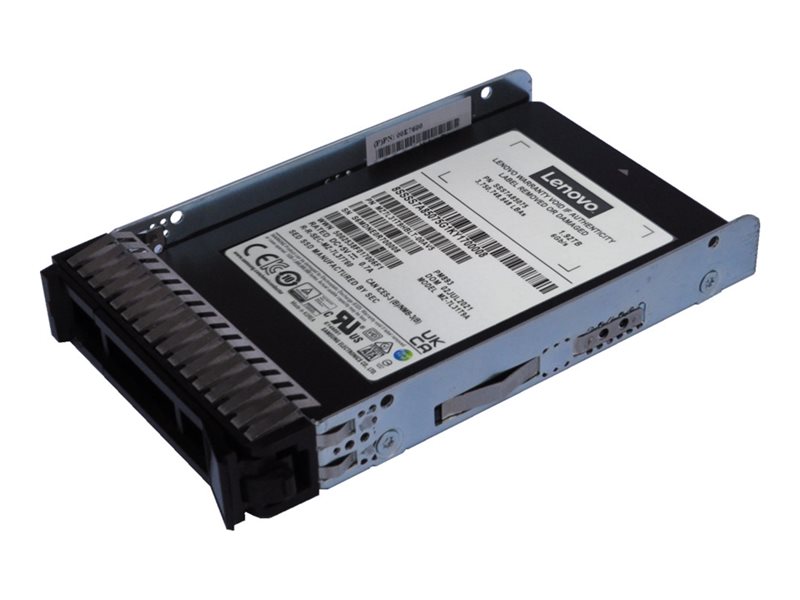

SSD - Read Intensive - encrypted - 1.92 TB - Vendor Agnostic - hot-swap - 2.5" - U.2 PCIe 4.0 x4 (NVMe) - Self-Encrypting Drive (SED), TCG Opal Encryption
| Main Specifications | |
|---|---|
| Product Description | Lenovo - SSD - Read Intensive - 1.92 TB - Vendor Agnostic - U.2 PCIe 4.0 x4 (NVMe) |
| Type | Solid state drive - hot-swap |
| Capacity | 1.92 TB |
| Hardware Encryption | Yes |
| NAND Flash Memory Type | Triple-level cell (TLC) |
| Form Factor | 2.5" |
| Interface | U.2 PCIe 4.0 x4 (NVMe) |
| Drive Class | Read Intensive |
| Features | V-NAND Technology, Power Loss Protection (PLP), NVM Express (NVMe), End-to-end data protection, Advanced ECC Engine, S.M.A.R.T. |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Solid state drive - hot-swap |
| Capacity | 1.92 TB |
| Hardware Encryption | Yes |
| NAND Flash Memory Type | Triple-level cell (TLC) |
| Form Factor | 2.5" |
| Interface | U.2 PCIe 4.0 x4 (NVMe) |
| Features | V-NAND Technology, Power Loss Protection (PLP), NVM Express (NVMe), End-to-end data protection, Advanced ECC Engine, S.M.A.R.T. |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - 1 year |
| Miscellaneous | |
| Compliant Standards | UL, TUV, FCC, C-Tick, BSMI, KCC |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 185 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Shock Tolerance (non-operating) | 1500 g @ 0.5 ms |
| Vibration Tolerance (non-operating) | 2.17 g @ 5-700 Hz |
| Performance | |
| Drive Writes Per Day (DWPD) | 1 |
| SSD Endurance | 3504 TB |
| Drive Class | Read Intensive |
| Internal Data Rate | 4750 MBps (read) / 1700 MBps (write) |
| 4KB Random Read | 630000 IOPS |
| 4KB Random Write | 102600 IOPS |
| Reliability | |
| MTBF | 2,000,000 hours |
| Recoverable Errors | 1 per 10^17 |
| Expansion & Connectivity | |
| Interfaces | 1 x U.2 PCIe 4.0 x4 (NVMe) |
| Compatible Bay | 2.5" |
