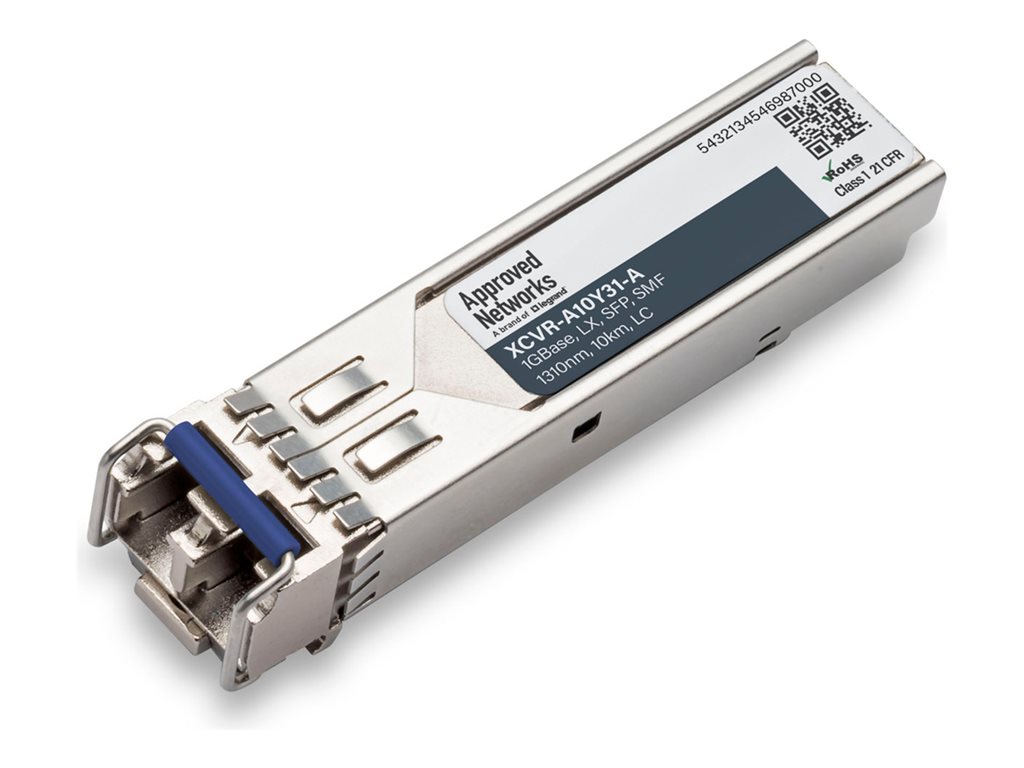

SFP (mini-GBIC) transceiver module (equivalent to: Ciena XCVR-A10Y31) - 1GbE - 1000Base-LX - LC single-mode - up to 6.2 miles - 1310 nm
| Main Specifications | |
|---|---|
| Product Description | Approved Networks - SFP (mini-GBIC) transceiver module - 1GbE |
| Device Type | SFP (mini-GBIC) transceiver module - LC single-mode |
| Form Factor | Plug-in module |
| Cabling Type | 1000Base-LX |
| Data Transfer Rate | 1.25 Gbps |
| Optical Wave Length | 1310 nm |
| Data Link Protocol | 1GbE |
| Max Transfer Distance | 6.2 miles |
| OEM Manufacturer Equivalent Part Number | Ciena XCVR-A10Y31 |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | SFP (mini-GBIC) transceiver module |
| Form Factor | Plug-in module |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 1000Base-LX (duplex) - LC single-mode female x 2 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | RoHS, MSA |
| OEM Manufacturer Equivalent Part Number | Ciena XCVR-A10Y31 |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 1000Base-LX |
| Data Link Protocol | 1GbE |
| Data Transfer Rate | 1.25 Gbps |
| Optical Wave Length | 1310 nm |
| Max Transfer Distance | 6.2 miles |
| Features | Digital Optical Monitoring (DOM) support, Digital Diagnostics Monitoring (DDM), 9 dB power budget, Fabry Perot (FP) laser, transmit min -9 dBm / max -3 dBm, -24 dBm sensivity |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 185 °F |
