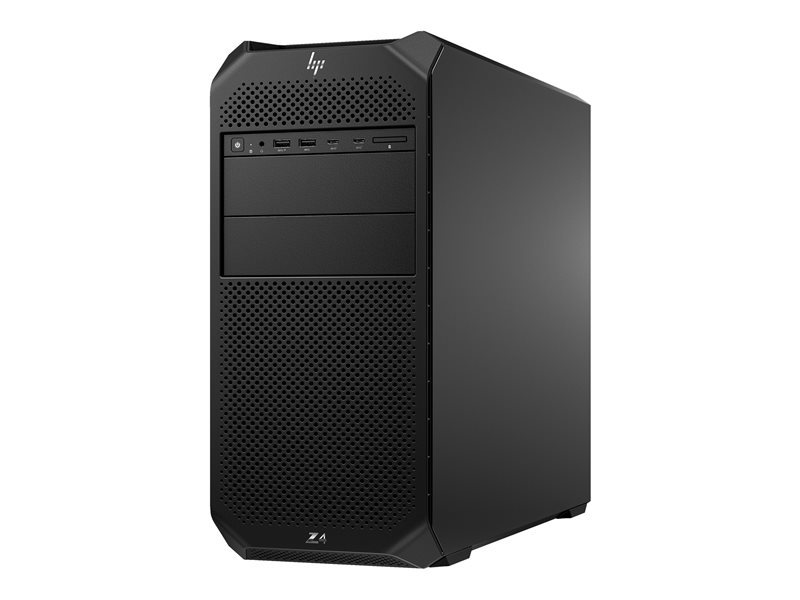

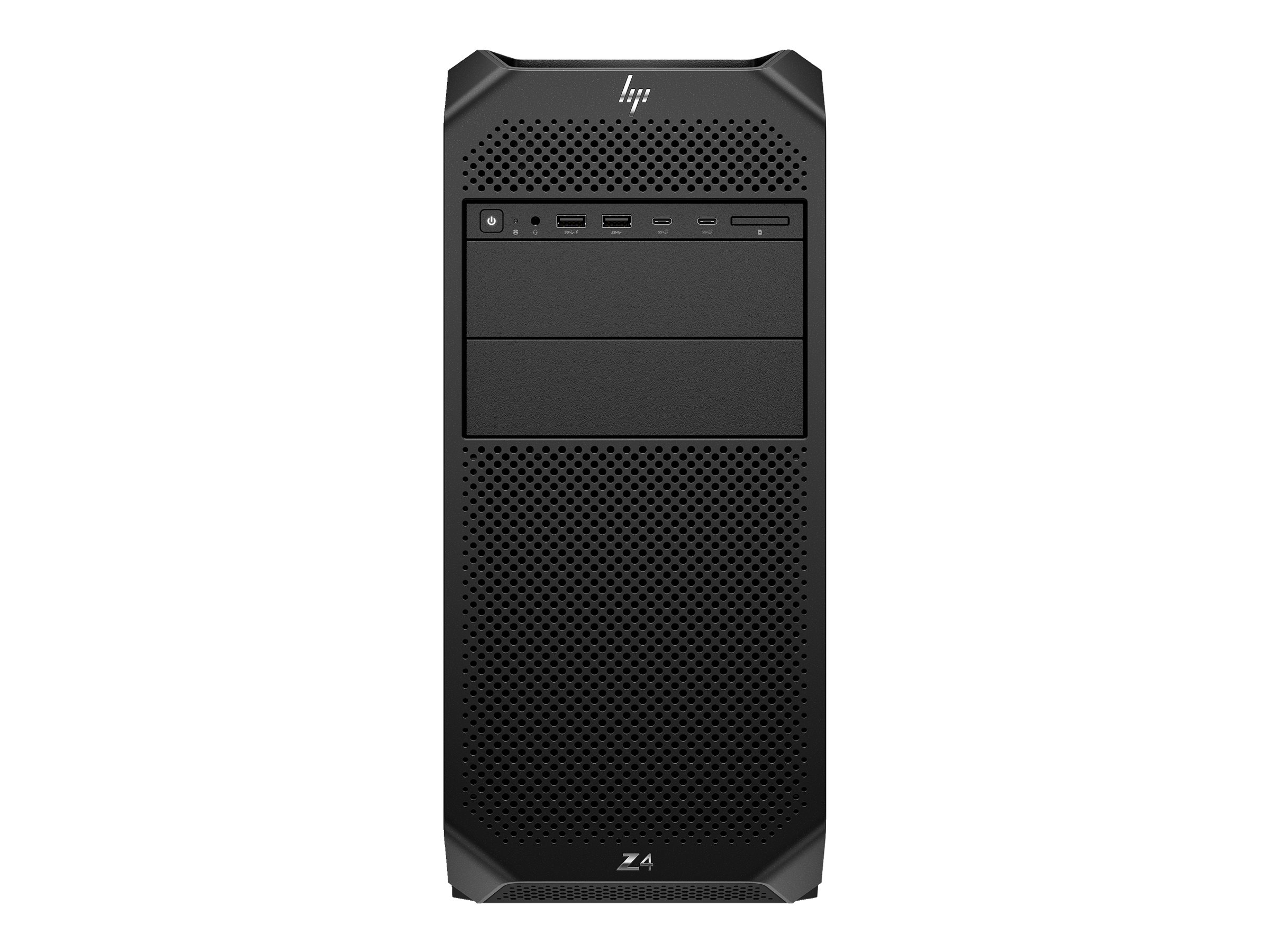

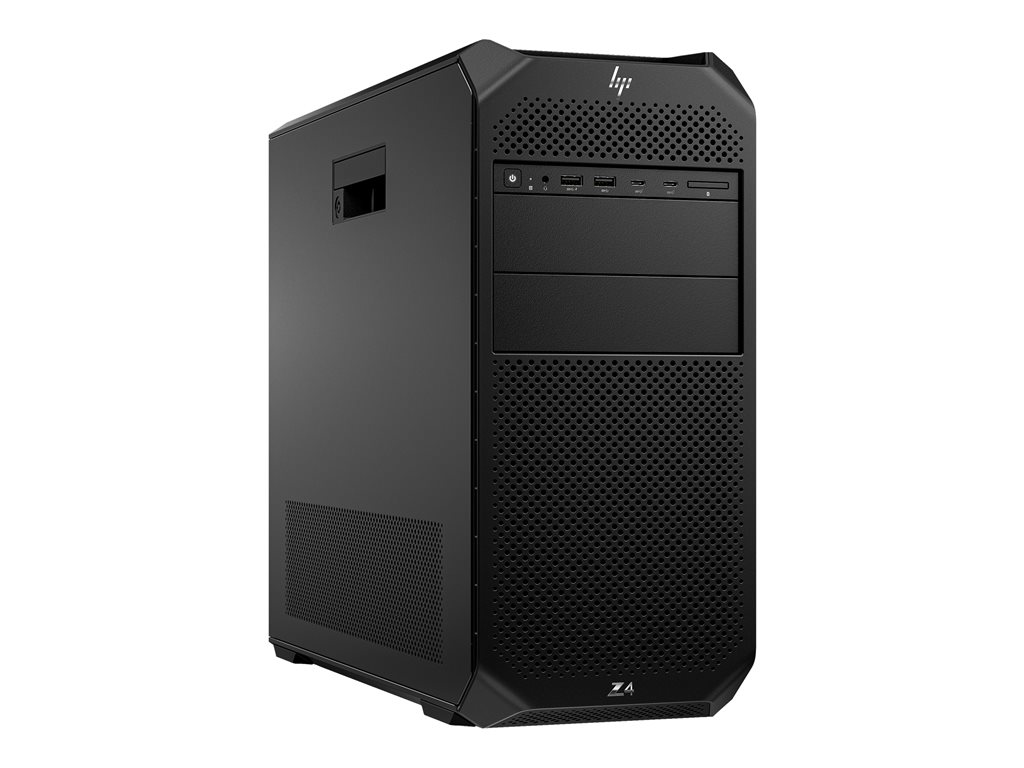

HP Inc. - HP Workstation Z4 G5

Wolf Pro Security - tower - 4U - 1 x Xeon W W5-2445 / up to 4.6 GHz - RAM 16 GB - SSD 512 GB - HP Z Turbo Drive, NVMe, TLC - T1000 - Gigabit Ethernet - Win 11 Pro - monitor: none - keyboard: US - black - Smart Buy - with HP Wolf Pro Security Edition (1 year)

HP Inc.
805C5UT#ABA
0197497173536
N/A
New

Price: $3,379.00

MSRP: $3,379.00
Total Available: 0

Product Description

Additional Details

What's Included

Specifications

Main Specifications
Product Description HP Workstation Z4 G5 - Wolf Pro Security - tower - Xeon W W5-2445 3.1 GHz - 16 GB - SSD 512 GB - US - with HP Wolf Pro Security Edition (1 year)
Type Workstation - tower
Height (Rack Units) 4U
Localization Language: English / region: United States
Processor 1 x Intel Xeon W W5-2445 / 3.1 GHz (, up to 4.6 GHz, (10-core)
Processor Socket LGA4677 Socket-E
Processor Main Features Hyper-Threading Technology, Intel Turbo Boost Technology 2, Intel Smart Cache, Intel Turbo Boost Max 3.0
Cache Memory 26.25 MB L3 cache
Cache Per Processor 26.25 MB
RAM 16 GB (installed) / 512 GB (max) - DDR5 SDRAM - non-ECC
Storage Controller SATA (SATA 6Gb/s)
Hard Drive SSD 512 GB - PCI Express 4.0 x4 - M.2 2280 - HP Z Turbo Drive, NVM Express (NVMe), triple-level cell (TLC)
Optical Storage No optical drive
Graphics Controller PCIe 3.0 x16 - NVIDIA T1000
Video Memory 4 GB GDDR6 SDRAM
Networking 1GbE
Keyboard US
Power (50/60 Hz)
OS Provided Windows 11 Pro
Software Included HP Support Assistant, HP Performance Advisor, HP PC Hardware Diagnostics UEFI, HP BIOSphere, HP BIOS Configuration Utility (free download), HP Driver Packs, HP Image Assistant, HP System Software Manager (free download), HP Sure Click, HP Manageability Integration Kit, HP Sure Sense, HP Sure Admin, HP Tamper Lock, HP Client Security Manager Gen7, HP Sure Recover Gen4, HP SureStart Gen7, HP Smart Support, HP Sure Run Gen5, HP Platform Certificate, HP PC Hardware Diagnostics Windows, HP Anyware, HP Data Science Stack
Color Black
Dimensions (WxDxH) 6.6 in x 17.5 in x 15.2 in
Weight 23.15 lbs
Manufacturer Selling Program HP Smart Buy
Environmental Standards TCO Certified Desktops 9
Bundled with HP Wolf Pro Security Edition (1 year)
General
Type Workstation
Product Form Factor Tower - 4U
Sensors HP Tamper Lock
Embedded Security Trusted Platform Module (TPM 2.0) Security Chip
Color Black
Localization Language: English / region: United States
Bundled with HP Wolf Pro Security Edition (1 year)
Expansion / Connectivity
Bays 2 (total) / 2 (free) x external 5.25" ¦ 2 (total) / 2 (free) x internal 3.5"
Slots 1 (total) / 0 (free) x PCIe 5.0 x16 ¦ 2 (total) / 2 (free) x PCIe 4.0 x4 ¦ 2 (total) / 2 (free) x PCIe 4.0 x16 ¦ 2 (total) / 1 (free) x M.2 Card - 2280 (PCIe 4.0 x4 mode (for internal storage))
Interfaces 2 x USB-C 3.2 Gen 2x2 (2 in front) (Power Delivery 3.0) ¦ 2 x USB 3.2 Gen 1 (2 in front) (one of them is Battery Charging 1.2) ¦ 1 x headphones/microphone (1 in front) ¦ 1 x audio line-out/line-in (1 rear) ¦ 1 x LAN (Gigabit Ethernet) ¦ 6 x USB 3.2 Gen 1 (6 rear) ¦ 4 x Mini DisplayPort 1.4a
Miscellaneous
Theft/Intrusion Protection Security lock slot (cable lock sold separately), padlock loop
Security Slot Type Kensington security slot
Compliant Standards RoHS, FIPS 140-2, Common Criteria EAL4+, ERP, CECP, CEL, WEEE 2002/96/EC, TCO Certified Edge, IT ECO Declaration, JEDEC JESD 300-5, DASH 1.2
Manufacturer Selling Program HP Smart Buy
RAM
Installed Size 16 GB / 512 GB (max)
Technology DDR5 SDRAM - non-ECC
Effective Memory Speed 4800 MHz
Rated Memory Speed 4800 MHz
Form Factor DIMM 288-pin
Slots 8 (total) / 7 (empty)
Configuration Features 1 x 16 GB
Networking
Ethernet Controller Intel I219-LM
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Features Wake on LAN (WoL), PXE 2.1 support, Intel Active Management Technology (AMT) 16.10
Power
Device Type Power supply
Voltage Required AC 90-269 V (50/60 Hz)
Efficiency 90%
Power Factor Correction Yes (active)
Environmental Parameters
Min Operating Temperature 41 °F
Max Operating Temperature 104 °F
Humidity Range Operating 10 - 85% RH (non-condensing)
Storage Controller
Type 1 x SATA
Controller Interface Type SATA 6Gb/s
Channel Qty 5
RAID Level RAID 0, RAID 1
Cache Memory
Installed Size L3 cache - 26.25 MB
Cache Per Processor 26.25 MB
Optical Storage
Type No optical drive
Monitor
Monitor Type None.
Graphics Controller
Interface Type PCIe 3.0 x16
Graphics Processor NVIDIA T1000
Video Memory 4 GB GDDR6 SDRAM
Bandwidth 160 GBps
Video Interfaces DisplayPort
Audio Output
Compliant Standards High Definition Audio
Operating System / Software
OS Provided Windows 11 Pro English
Software HP Support Assistant, HP Performance Advisor, HP PC Hardware Diagnostics UEFI, HP BIOSphere, HP BIOS Configuration Utility (free download), HP Driver Packs, HP Image Assistant, HP System Software Manager (free download), HP Sure Click, HP Manageability Integration Kit, HP Sure Sense, HP Sure Admin, HP Tamper Lock, HP Client Security Manager Gen7, HP Sure Recover Gen4, HP SureStart Gen7, HP Smart Support, HP Sure Run Gen5, HP Platform Certificate, HP PC Hardware Diagnostics Windows, HP Anyware, HP Data Science Stack
Hard Drive
Type SSD - M.2 2280
Capacity 1 x 512 GB
Interface Type PCI Express 4.0 x4
Features HP Z Turbo Drive, NVM Express (NVMe), triple-level cell (TLC)
Input Device
Type Mouse, keyboard
Dimensions & Weight
Width 6.6 in
Depth 17.5 in
Height 15.2 in
Weight 23.15 lbs
Dimensions & Weight (Shipping)
Shipping Width 12.4 in
Shipping Depth 22.5 in
Shipping Height 22.2 in
Shipping Weight 31.64 lbs
Keyboard
Keyboard Name HP 320K
Interface USB
Localization & Layout US
Mouse
Mouse Name HP 320M
Processor / Chipset
CPU Intel Xeon W W5-2445
Clock Speed 3.1 GHz
Max Turbo Speed 4.6 GHz
Number of Cores 10-core
CPU Qty 1
Max CPU Qty 1
CPU Upgradability Upgradable
Processor Main Features Hyper-Threading Technology, Intel Turbo Boost Technology 2, Intel Smart Cache, Intel Turbo Boost Max 3.0
CPU Socket LGA4677 Socket-E
Chipset Type Intel W790
Sustainability Information
TCO Certified TCO Certified Desktops 9
