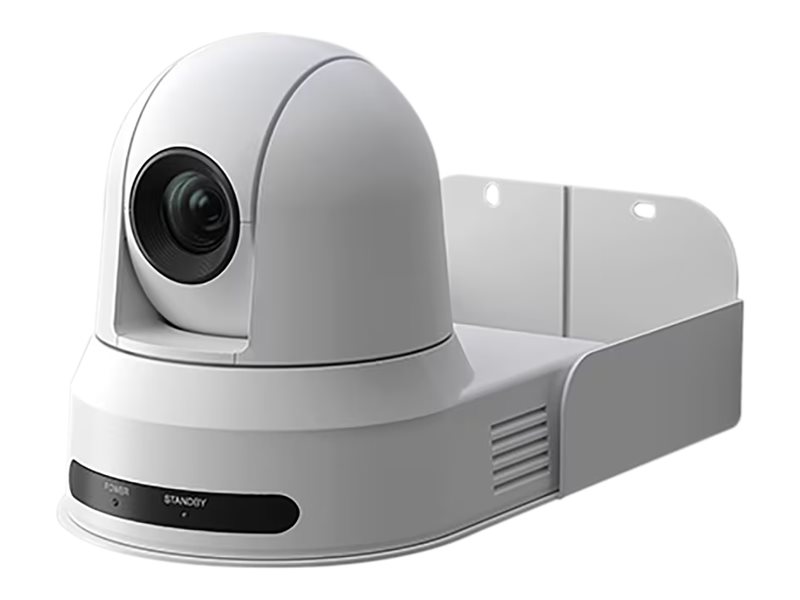

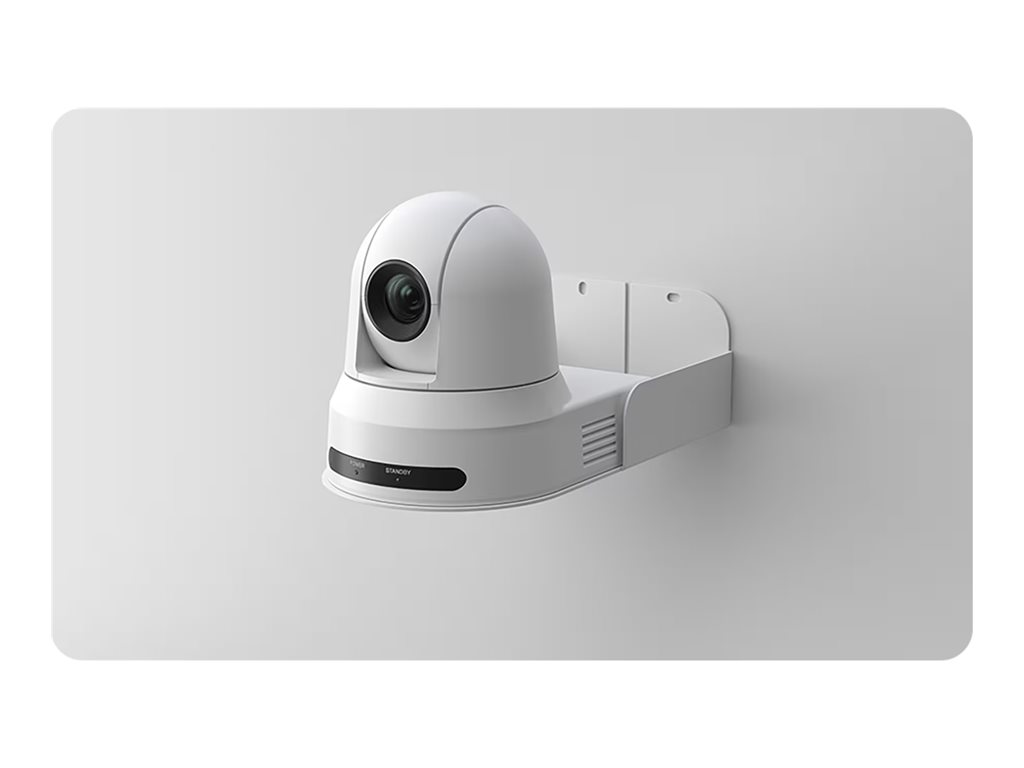

Conference camera - PTZ - color - 3840 x 2160 - 4K - motorized - HDMI - LAN 10/100 - DC 12 V
| Main Specifications | |
|---|---|
| Product Description | Cisco PTZ - conference camera |
| Device Type | Conference camera - pan / tilt / zoom |
| Camera Mount Type | Wall mount, ceiling mount |
| Dimensions (WxDxH) | 6.2 in x 7.9 in x 7 in |
| Weight | 3.75 lbs |
| Color | White |
| Connectivity Technology | Wired |
| Camera | Color |
| Optical Zoom | 20 x |
| Max Resolution | 3840 x 2160 |
| Frame Rate (max) | 60 frames per second |
| Video Modes | 4K |
| Focal Length Control | Motorized zoom |
| Focus Adjustment | Automatic, manual (min distance 3.3 ft) |
| Lens Iris | F/2.0-3.8 |
| Panning Range (degree) | -170 to +170 |
| Tilting Range (degree) | -20 to +90 |
| Interfaces | HDMI, Ethernet 10Base-T/100Base-TX |
| Control Interface | RJ-45 |
| Voltage | DC 12 V |
| Features | AI-powered, presenter tracking, automatic brightness adjustment, auto white balance, Auto Focus, auto framing, PoE+ support |
| Manufacturer Warranty | 90-day warranty |
| Environmental Parameters (operating) | 32 °F - 104 °F; 20 - 80% relative humidity |
| General | |
| Device Type | Conference camera |
| Camera Mount Type | Wall mount, ceiling mount |
| Connectivity Technology | Wired |
| Width | 6.2 in |
| Depth | 7.9 in |
| Height | 7 in |
| Weight | 3.75 lbs |
| Localization | India |
| Expansion / Connectivity | |
| Ports | HDMI ¦ LAN |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 90 days |
| Miscellaneous | |
| Compliant Standards | 2011/65/EU, Directive 2002/96/EU, Directive 2014/30/EU, EMC, EN 55032 Class A, EN 55035, EN 62368-1, FCC 47 CFR part 15 B class B, NRTL, RoHS, WEEE |
| Color | White |
| Power | |
| Power Requirements | DC 12 V - 3 A |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Relative Humidity (operating) | 20 - 80% |
| Camera | |
| Type | Color - pan / tilt / zoom |
| Max Digital Video Resolution | 3840 x 2160 |
| Video Modes | 4K |
| Digital Zoom | 12 |
| Video Capture | 3840 x 2160 @ 30 fps ¦ 1920 x 1080 @ 60 fps |
| Features | AI-powered, presenter tracking, automatic brightness adjustment, auto white balance, Auto Focus, auto framing, PoE+ support |
| Lens Construction | |
| Type | Motorized zoom |
| Optical Zoom | 20 x |
| Lens Iris | F/2.0-3.8 |
| Focus Adjustment | Automatic, manual |
| Min Focus Distance | 3.3 ft |
| Horizontal Field of View (degree) | 70 |
| Interfaces | |
| Video | HDMI |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Control Interface | RJ-45 |
| Panning | |
| Range (degree) | -170 to +170 |
| Tilting | |
| Range (degree) | -20 to +90 |
