Docking station - USB-C / Thunderbolt 4 - 2 x DP, Thunderbolt, USB-C, HDMI - 1GbE, 2.5GbE - 280 Watt - with combo cable - United States - for Elite Mobile Thin Client mt645 G7; Pro x360; ZBook Firefly 14 G9, 16 G9; ZBook Fury 16 G9
| Main Specifications | |
|---|---|
| Product Description | HP Thunderbolt Dock G4 - docking station - USB-C / Thunderbolt 4 - 2 x DP, Thunderbolt, USB-C, HDMI - 1GbE, 2.5GbE |
| Product Type | Docking station |
| Docking Interface | USB-C / Thunderbolt 4 |
| Video Interfaces | 2 x DP, Thunderbolt, USB-C, HDMI |
| Bundled with | Combo cable |
| Dimensions (WxDxH) | 3.9 in x 3.9 in x 2.7 in |
| Weight | 26.81 oz |
| Localization | English / United States |
| Networking | Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Power | Power adapter AC 100-240 V (50/60 Hz) 280 Watt Power Provided |
| Manufacturer Warranty | 1-year warranty |
| Designed For | Elite Mobile Thin Client mt645 G7; EliteBook 640 G9, 645 G9, 650 G9, 655 G9; Pro x360; ProBook 440 G9, 445 G9, 450 G9, 455 G9; ZBook Power G9, Studio G9; ZBook Firefly 14 G9, 16 G9; ZBook Fury 16 G9 |
| General | |
| Product Type | Docking station |
| Bundled with | Combo cable |
| Width | 3.9 in |
| Depth | 3.9 in |
| Height | 2.7 in |
| Weight | 26.81 oz |
| Localization | English / United States |
| Expansion / Connectivity | |

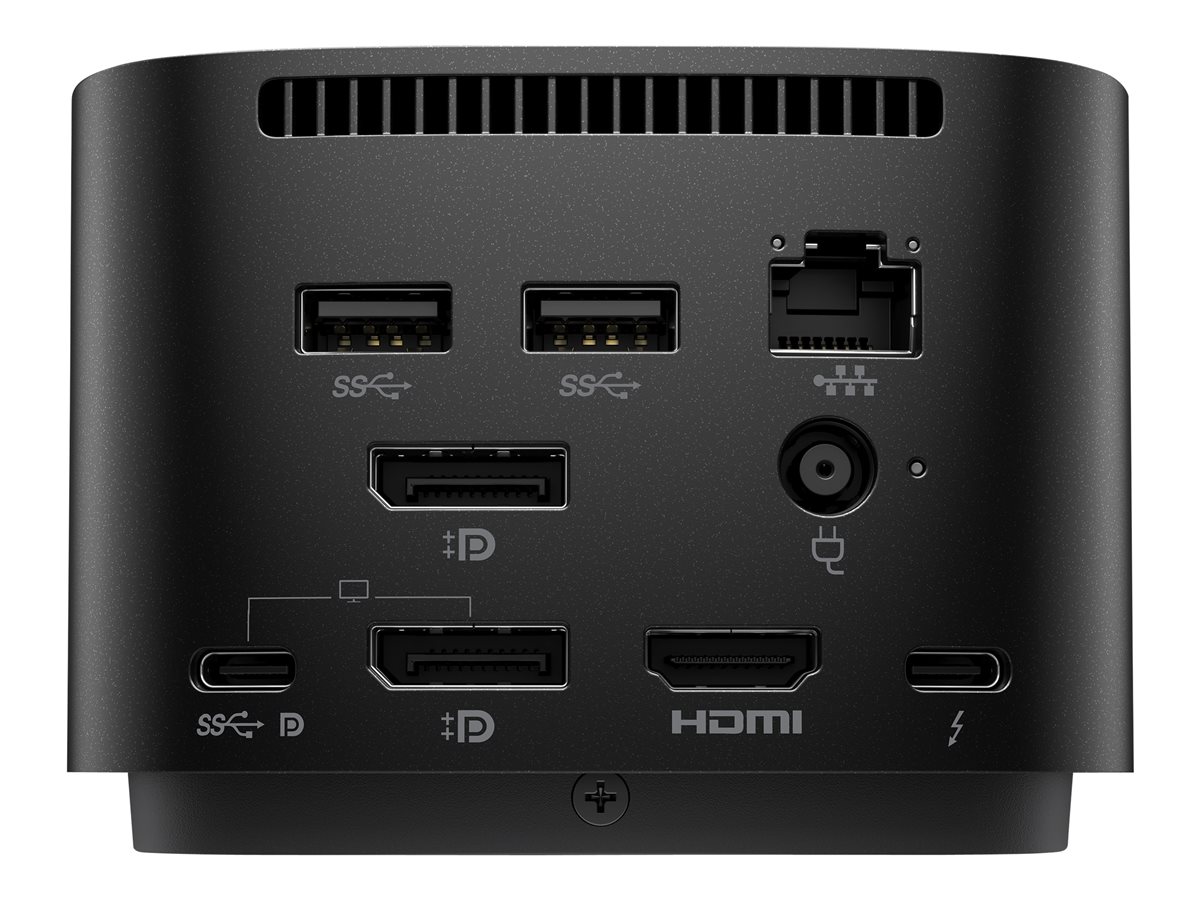

| Interfaces | 4 x USB 3.2 Gen 1 ¦ 1 x USB-C 3.2 Gen 2 ¦ 1 x Thunderbolt 4 ¦ 1 x network - 2.5GBase-T - RJ-45 ¦ 1 x USB-C / DisplayPort ¦ 1 x audio / video - HDMI - 19 pin HDMI Type A ¦ 2 x audio / video - DisplayPort - 20 pin DisplayPort |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Cables Included | 1 x Thunderbolt 4 cable - 2.6 ft |
| Features | Security lock slot (cable lock sold separately), wired vPRO, wireless vPro, wake on LAN, Preboot Execution Environment (PXE) support, MAC address pass-through |
| Security Slot Type | Kensington security slot |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Power | |
| Power Device | Power adapter |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Provided | 280 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 95 °F |
| System Requirements | |
| OS Required | Apple MacOS, Google Chrome OS, Microsoft Windows 10 / 11 |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 10.8 in |
| Shipping Depth | 5.6 in |
| Shipping Height | 5.8 in |
| Compatibility Information | |
| Designed For | HP Elite Mobile Thin Client mt645 G7 ¦ HP EliteBook 640 G9 Notebook, 645 G9 Notebook, 650 G9 Notebook, 655 G9 Notebook ¦ HP Pro x360 435 G10 Notebook, 435 G9 Notebook ¦ HP ProBook 440 G9 Notebook, 445 G9 Notebook, 450 G9 Notebook, 455 G9 Notebook ¦ HP ZBook Power G9 Mobile Workstation, Studio G9 Mobile Workstation ¦ HP ZBook Firefly 14 G9 Mobile Workstation, 16 G9 Mobile Workstation ¦ HP ZBook Fury 16 G9 Mobile Workstation |
