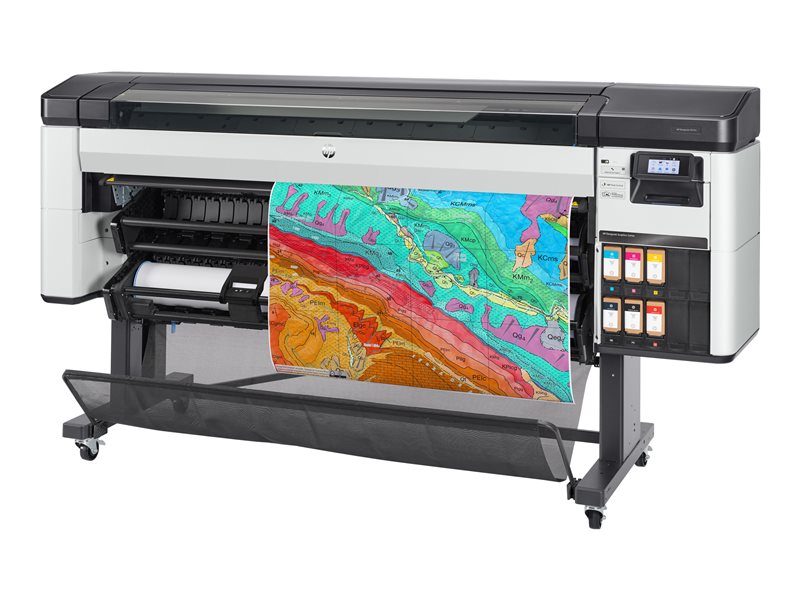

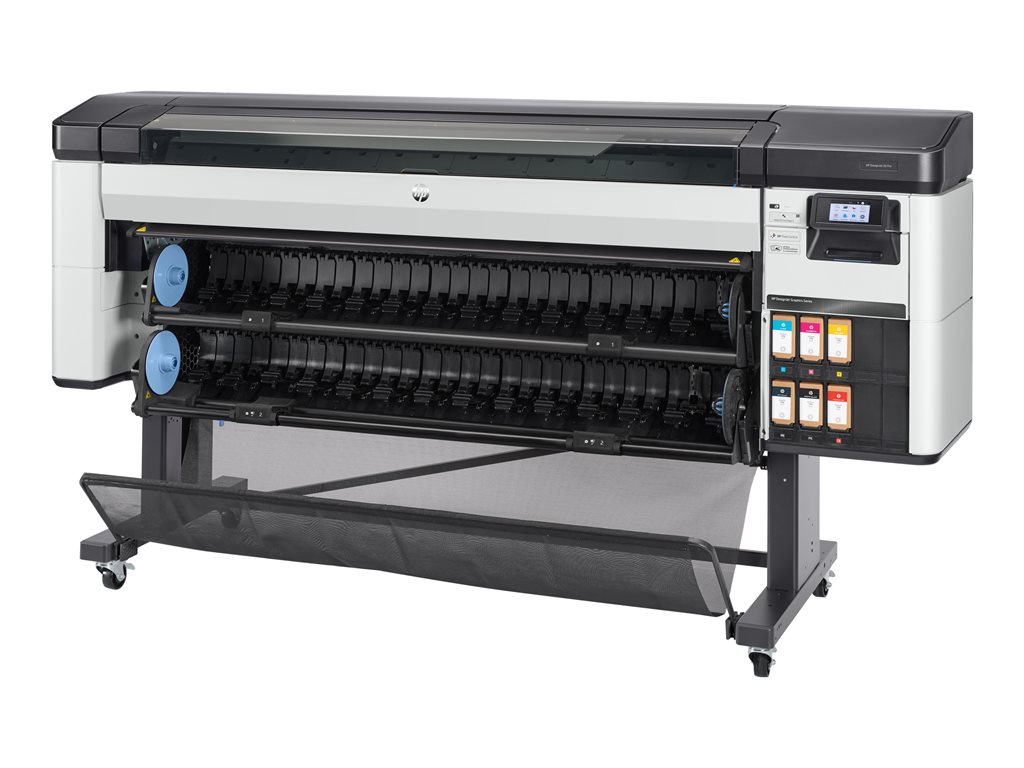

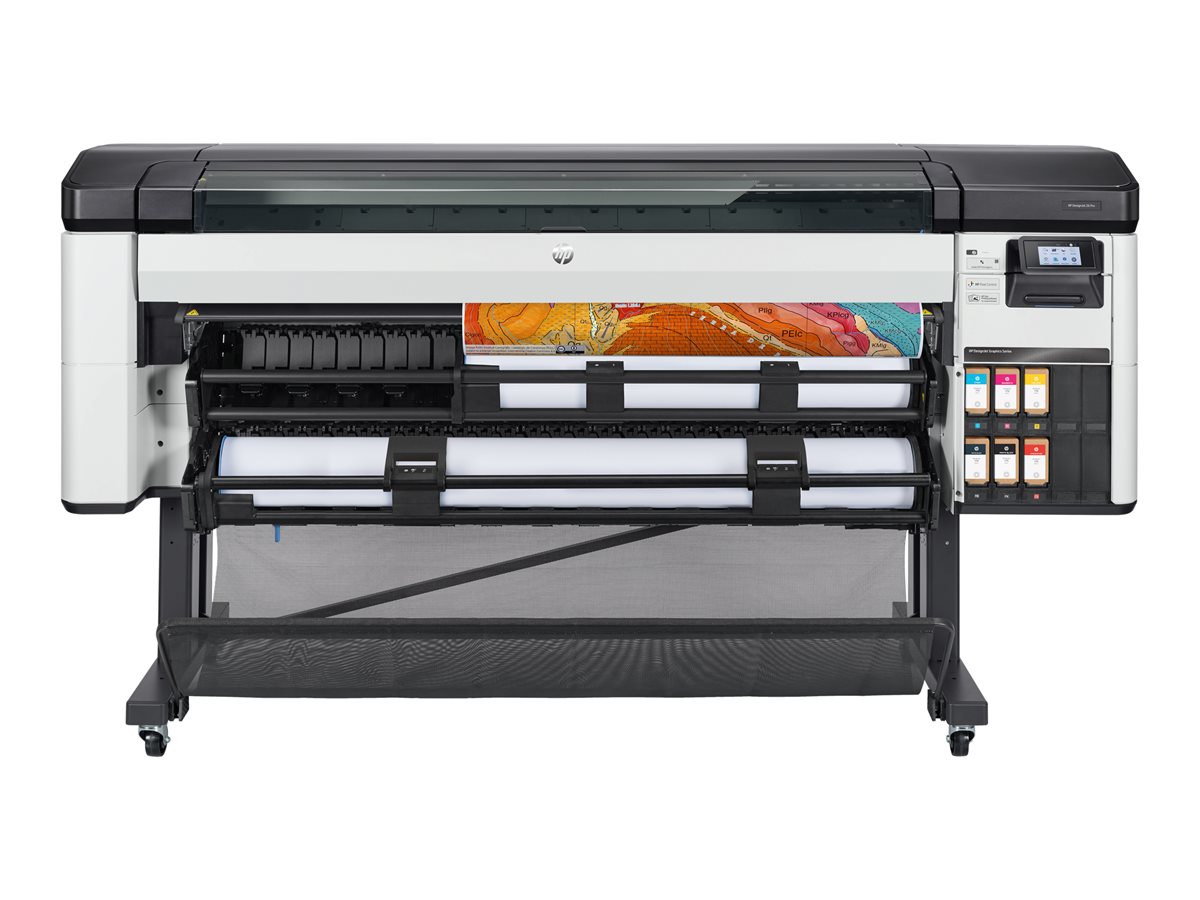

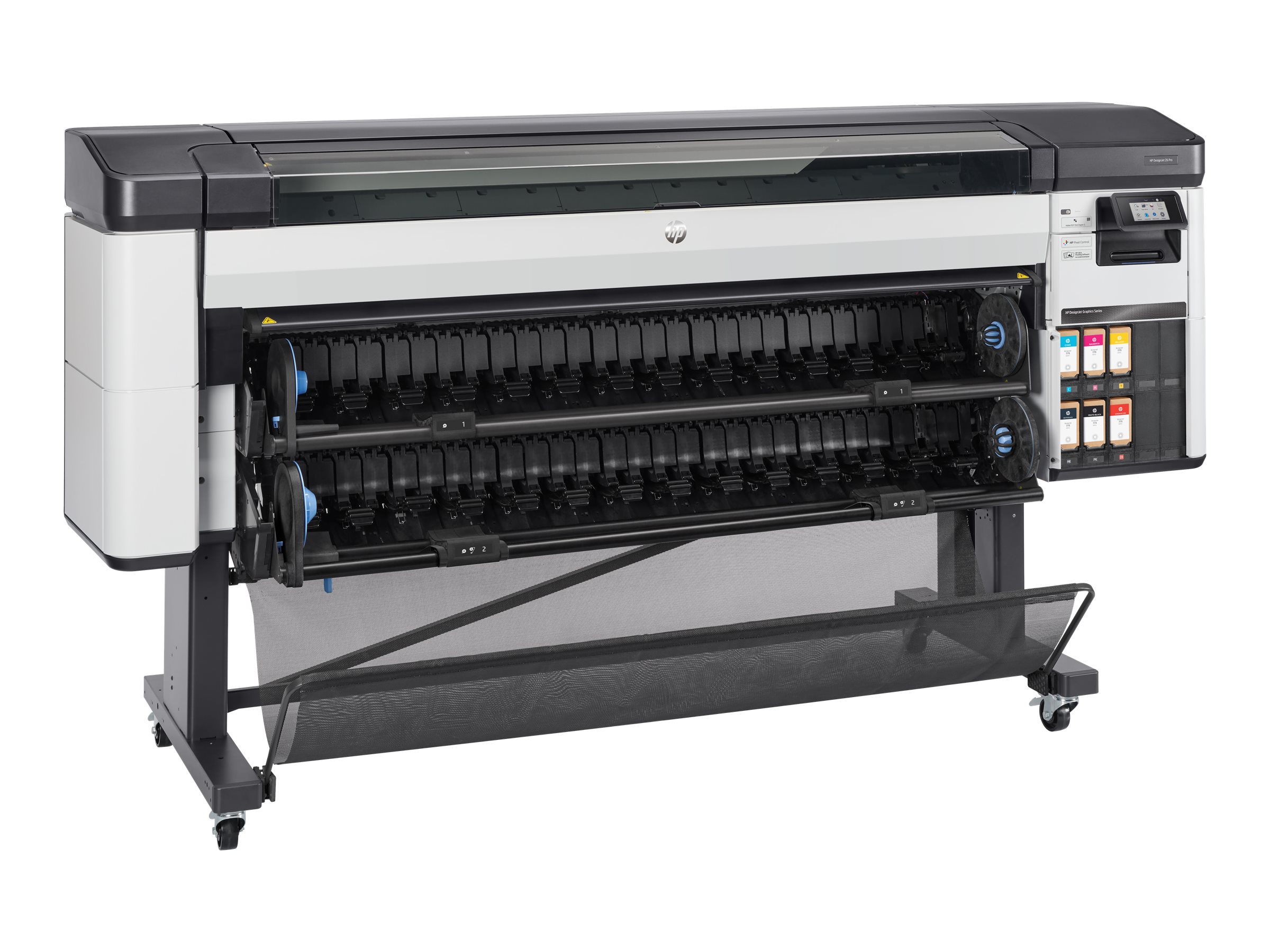

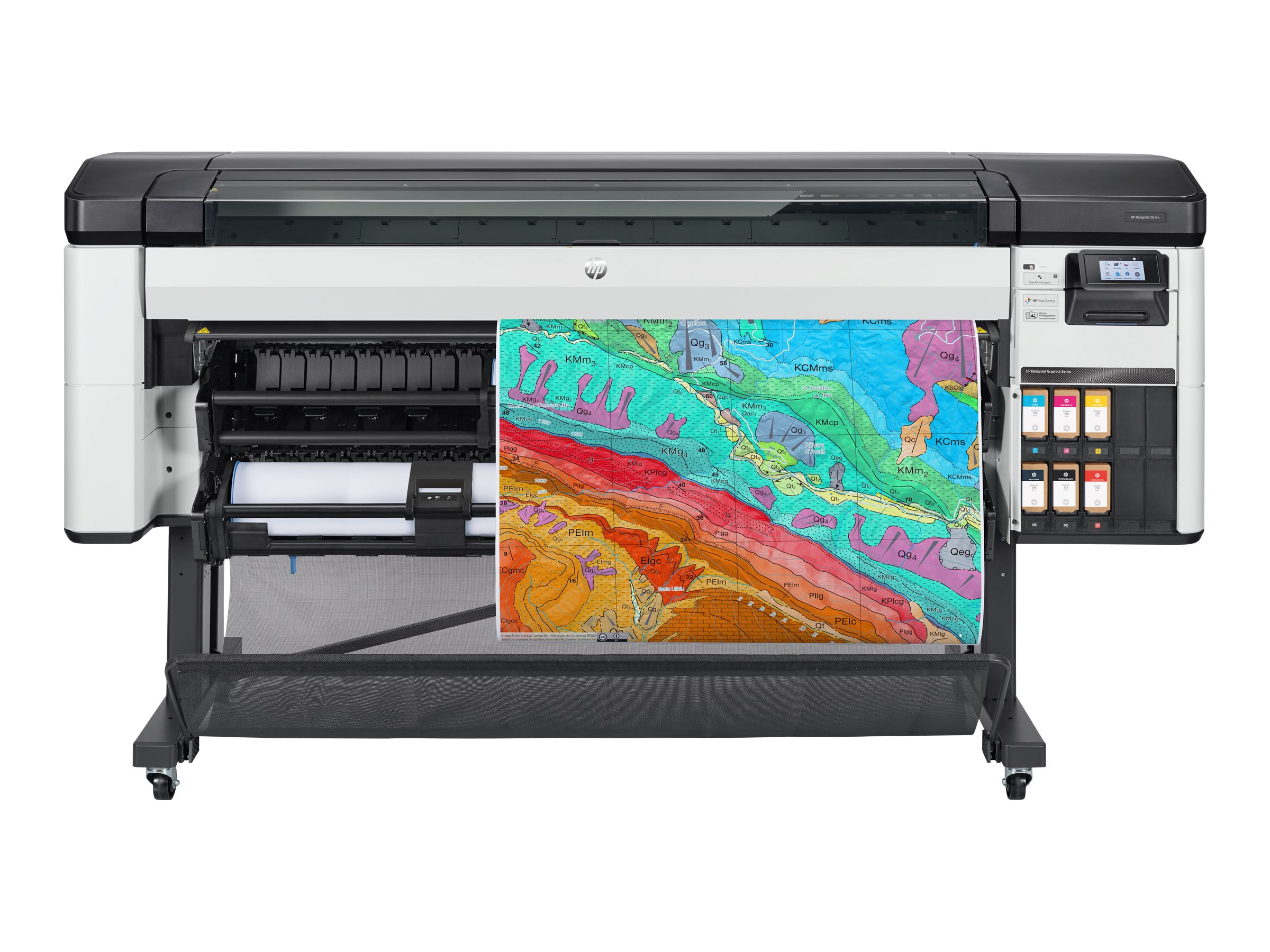

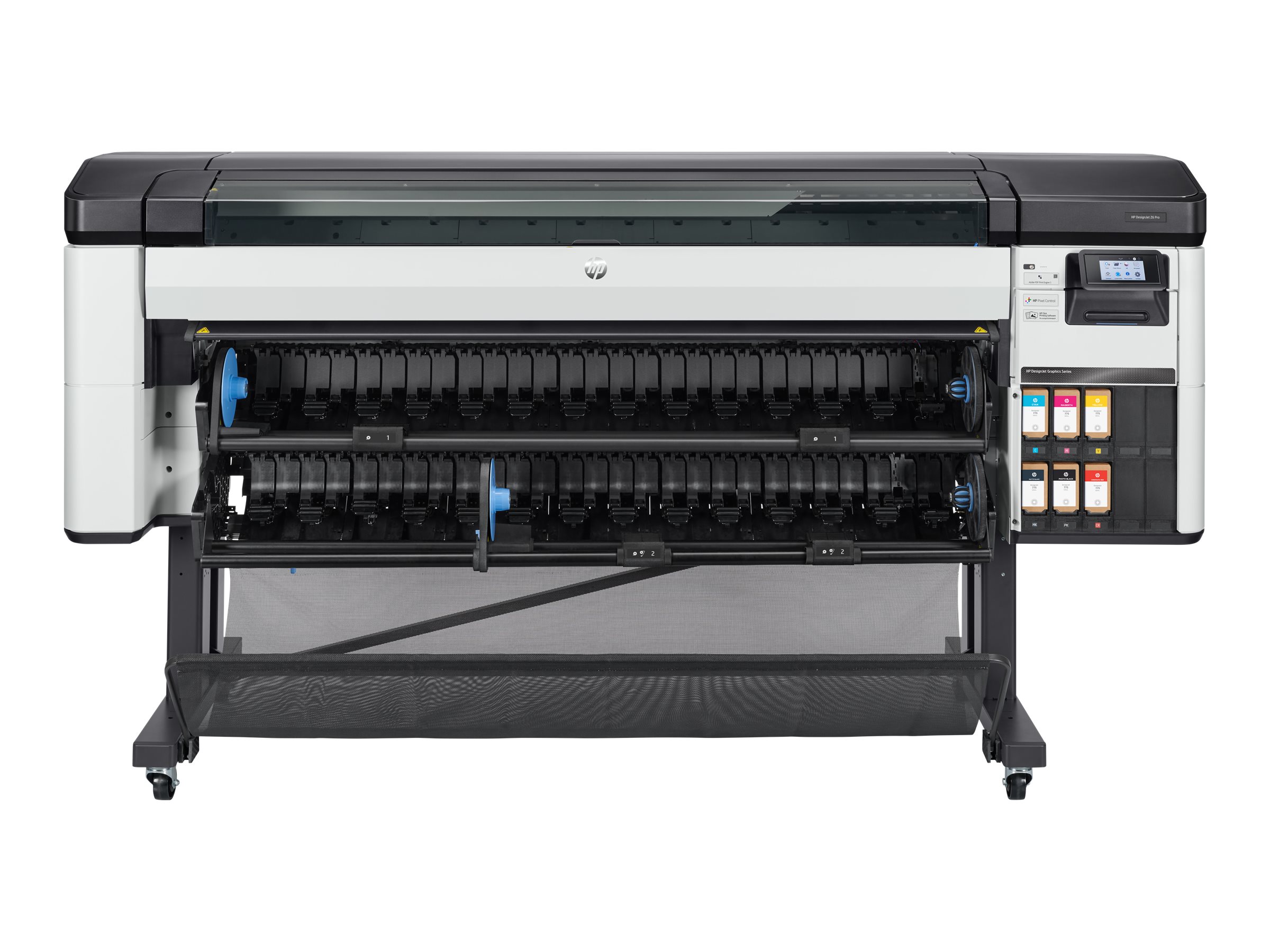

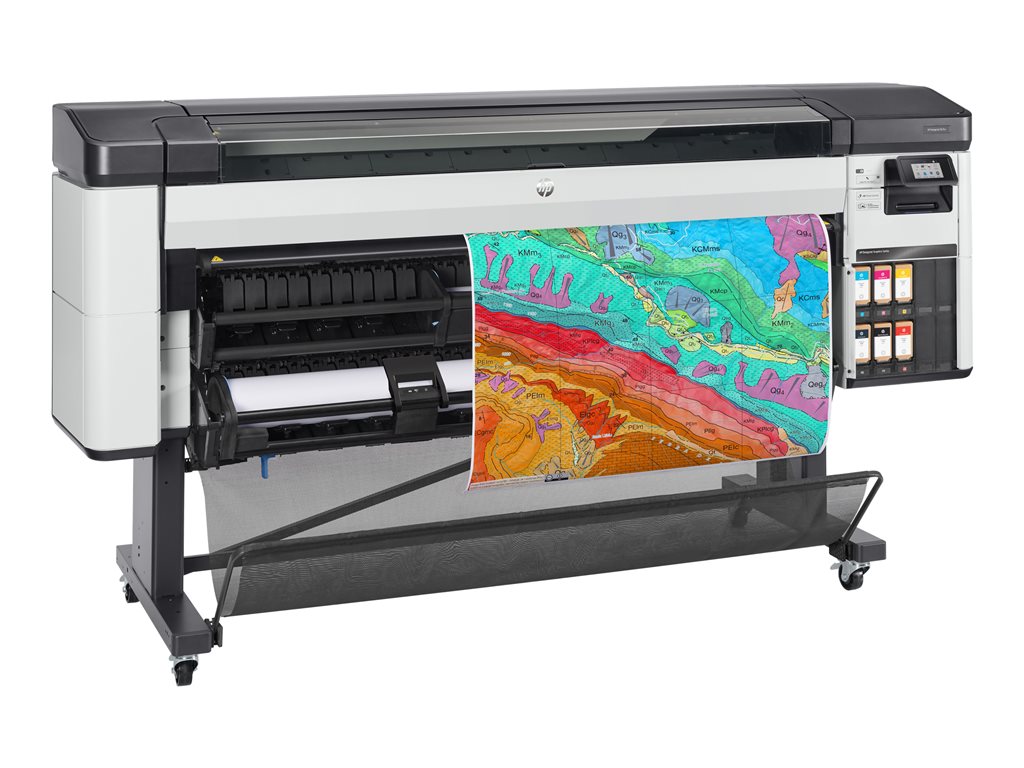

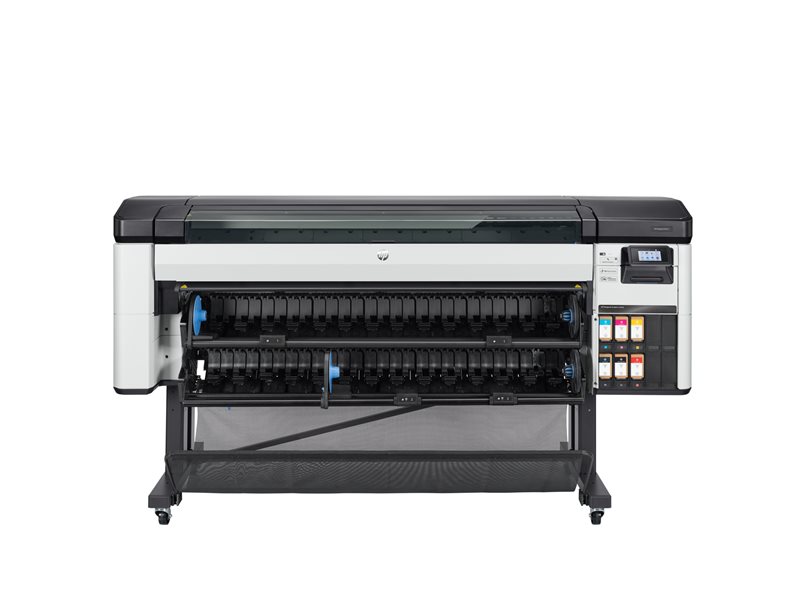

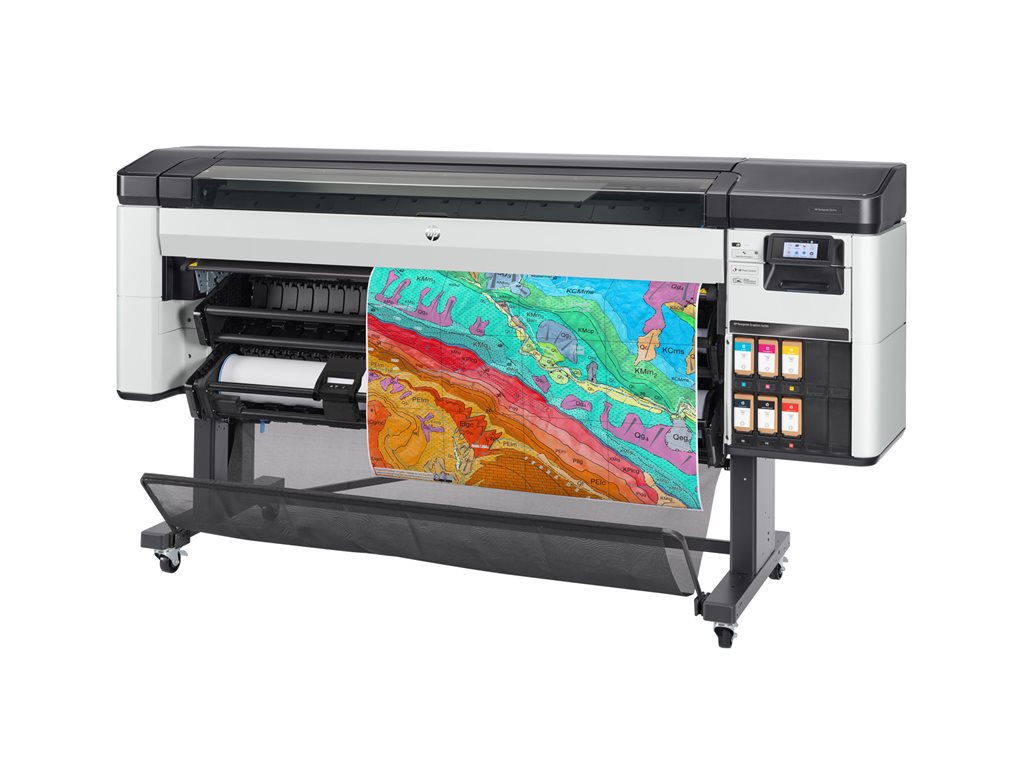

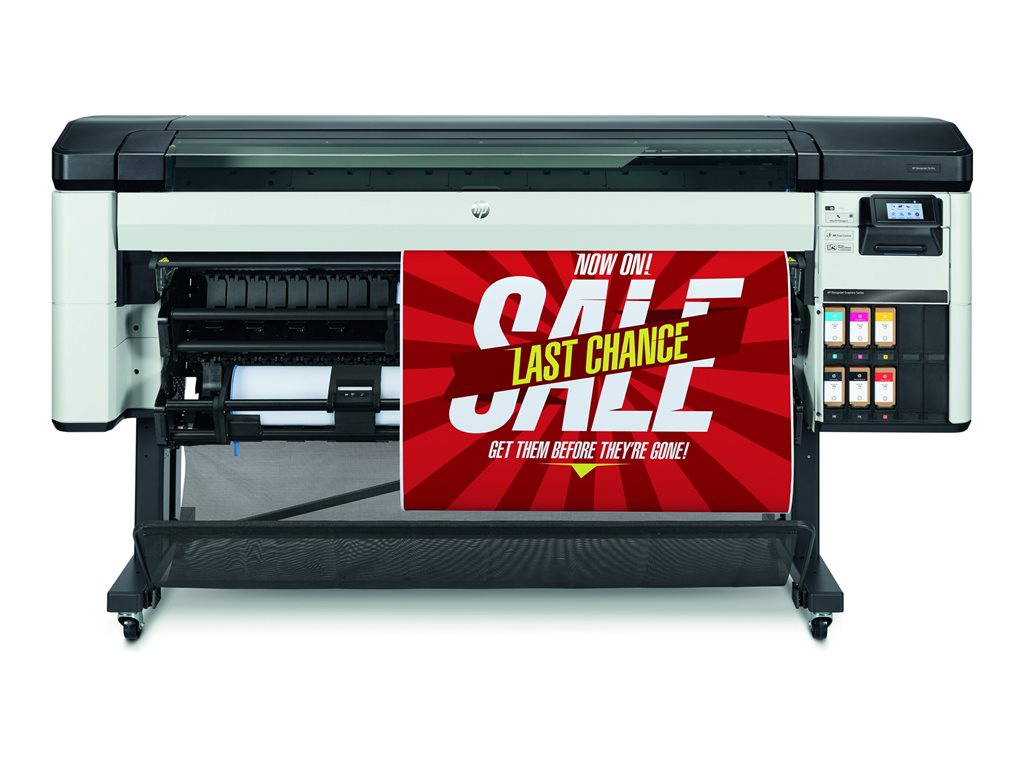

HP Inc. - HP DesignJet Z6 Pro

64" large-format printer - color - ink-jet - - 2400 x 1200 dpi - up to 1054.9 sq.ft/hour (mono) / up to 1054.9 sq.ft/hour (color) - capacity: 2 rolls - Gigabit LAN, USB host - cutter

HP Inc.
2QU25A#B1K
0195908148722
N/A
New

Price: CALL

MSRP: $12,395.00
Total Available: 11

Product Description

Additional Details

What's Included

Specifications

Main Specifications
Product Description HP DesignJet Z6 Pro - large-format printer - color - ink-jet
Printer Type 64" large-format printer - ink-jet - color
Weight 372.58 lbs
Localization English, French, Portuguese, Spanish / Canada, Latin America, United States
Inkjet Technology HP Thermal Inkjet
Ink Palette Supported (Colors) 6-ink - cyan, magenta, yellow, matte black, photo black, chromatic red
Max Media Size Roll (64 in)
Max Media Size (Custom) 16.5 in x 64 in
Print Speed Up to 1054.9 sq.ft/hour - fast ¦ Up to 312.2 sq.ft/hour - normal ¦ Up to 151.8 sq.ft/hour - best
Max Resolution (B&W) 2400 x 1200 dpi
Max Resolution (Color) 2400 x 1200 dpi
Cutter Yes
Interface Gigabit LAN, USB host
Hard Drive 500 GB
Language Simulation PostScript 3, HP RTL, CALS G4, HP GL/2, TIFF, PDF 1.7, JPEG
Media Type Photo paper, fine art paper, bond paper, film, backlit paper, glossy paper, poster/banner paper, matte paper
Total Media Capacity 2 rolls
Networking Print server
Power AC 100-240 V
Manufacturer Warranty 1-year warranty
Dimensions (WxDxH) 102.6 in x 31.1 in x 55.2 in
General
Printer Type 64" large-format printer - ink-jet - color
Localization English, French, Portuguese, Spanish / Canada, Latin America, United States
Expansion / Connectivity
Connections 1 x Gigabit LAN - RJ-45 ¦ 1 x USB host
Manufacturer Warranty
Service & Support Limited warranty - 1 year
Miscellaneous
Included Accessories Media bin, stand, maintenance kit, setup poster, 3" core adapter, introductory ink cartridges, maintenance cartridge
Consumables Included 1 x ink cartridge (cyan) ¦ 1 x ink cartridge (magenta) ¦ 1 x ink cartridge (yellow) ¦ 1 x ink cartridge (chromatic red) ¦ 1 x ink cartridge (photo black) ¦ 1 x ink cartridge (matte black) ¦ 3 x printhead
Compliant Standards CSA, VCCI, CCC, EMC, PSB, FCC, IRAM, EN 60950-1, KCC, WEEE, ICES, REACH, LVD, EAC, China RoHS, RCM, EN 62368-1, IEC 62368-1, EU RoHS, IEC 60950-1+A1+A2
Printer
Inkjet Technology HP Thermal Inkjet
Ink Palette Supported (Colors) 6-ink - cyan, magenta, yellow, matte black, photo black, chromatic red
Nozzle Configuration 18816 nozzles
Ink Cartridge Configuration 6 cartridges (1 each: cyan, magenta, yellow, gray, photo black, matte black)
Ink Type HP Vivid Photo Inks
Print Speed Up to 1054.9 sq.ft/hour - fast ¦ Up to 312.2 sq.ft/hour - normal ¦ Up to 151.8 sq.ft/hour - best
Connectivity Technology Wired
Interface Gigabit LAN, USB host
Max Resolution (B&W) 2400 x 1200 dpi
Max Resolution (Color) 2400 x 1200 dpi
PostScript Support Standard
Language Simulation PostScript 3, HP RTL, CALS G4, HP GL/2, TIFF, PDF 1.7, JPEG
Cutter Yes
Storage
Hard Drive 500 GB
Media Handling
Media Type Photo paper, fine art paper, bond paper, film, backlit paper, glossy paper, poster/banner paper, matte paper
Max Media Size Roll (64 in)
Max Media Size (Custom) 16.5 in x 64 in
Media Sizes Roll (60 in x 100 ft), Roll (36 in x 100 ft), Roll (64 in)
Max Printing Width 64.02 in
Media Thickness Range Up to 0.024 in
Media Weight 80 g/m² - 500 g/m²
Total Media Capacity 2 rolls
Media Feeders 1 x automatic - 2 rolls - Roll (64 in) weight: 80 g/m² - 500 g/m²
Networking
Networking Print server
Power
Power Device Power supply - internal
Voltage Required AC 100-240 V
Frequency Required 50/60 Hz
Power Consumption Operational 50 Watt
Power Consumption Stand by 35 Watt
Power Consumption Sleep 9 Watt
Software / System Requirements
Software Included Drivers & Utilities, HP Web JetAdmin, HP Click, HP Partner Link, HP PrintOS, HP DesignJet Accounting Tool
Environmental Parameters
Min Operating Temperature 41 °F
Max Operating Temperature 104 °F
Humidity Range Operating 20 - 80%
Sound Emission (Idle) 25 dBA
Sound Emission (Operating) 52 dBA
Dimensions & Weight
Width 102.6 in
Depth 31.1 in
Height 55.2 in
Weight 372.58 lbs
Dimensions & Weight (Shipping)
Width (Shipping) 110.2 in
Depth (Shipping) 29.5 in
Height (Shipping) 51.3 in
Weight (Shipping) 577.61 lbs
Environmental Standards
ENERGY STAR Yes
