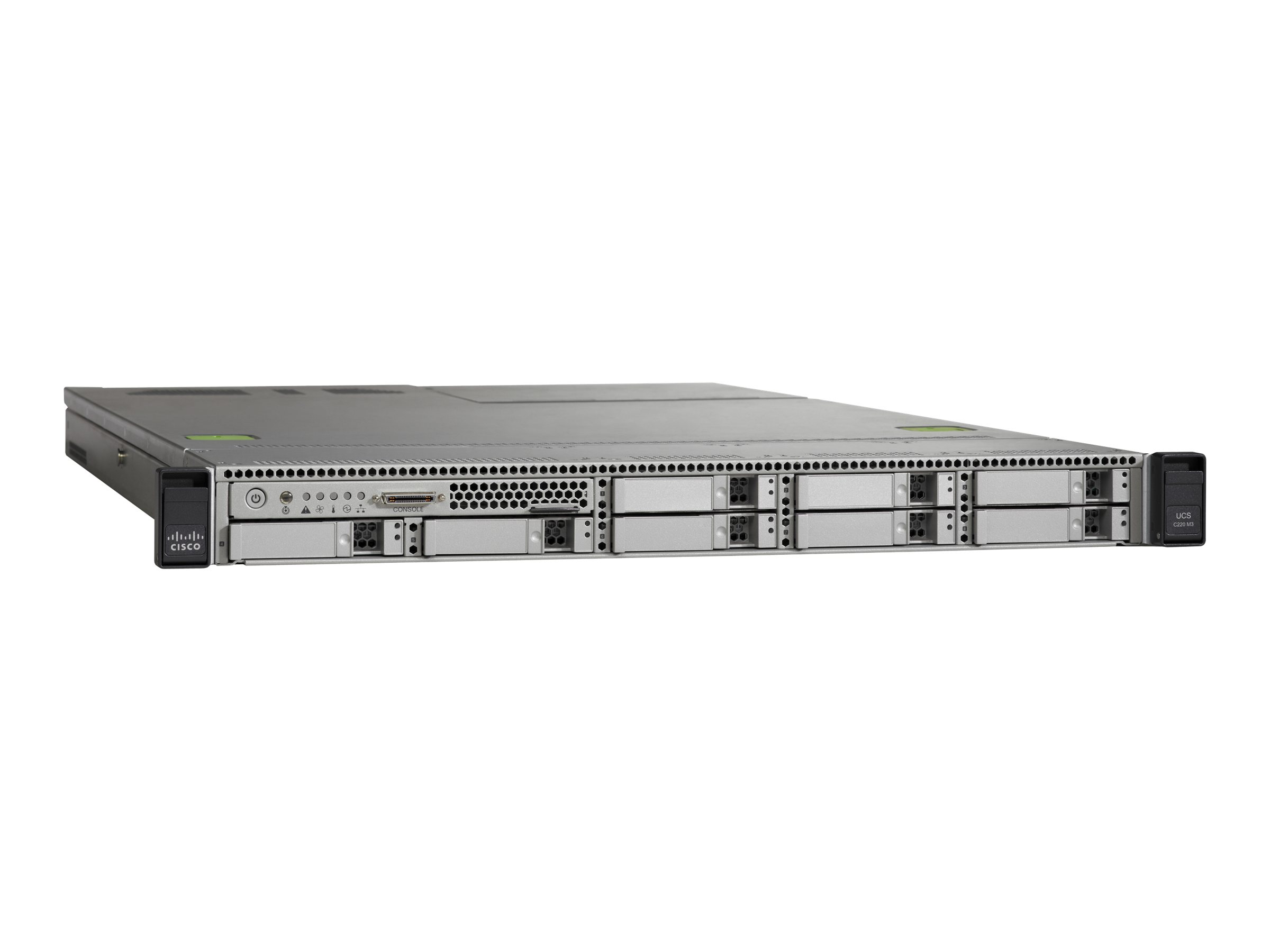

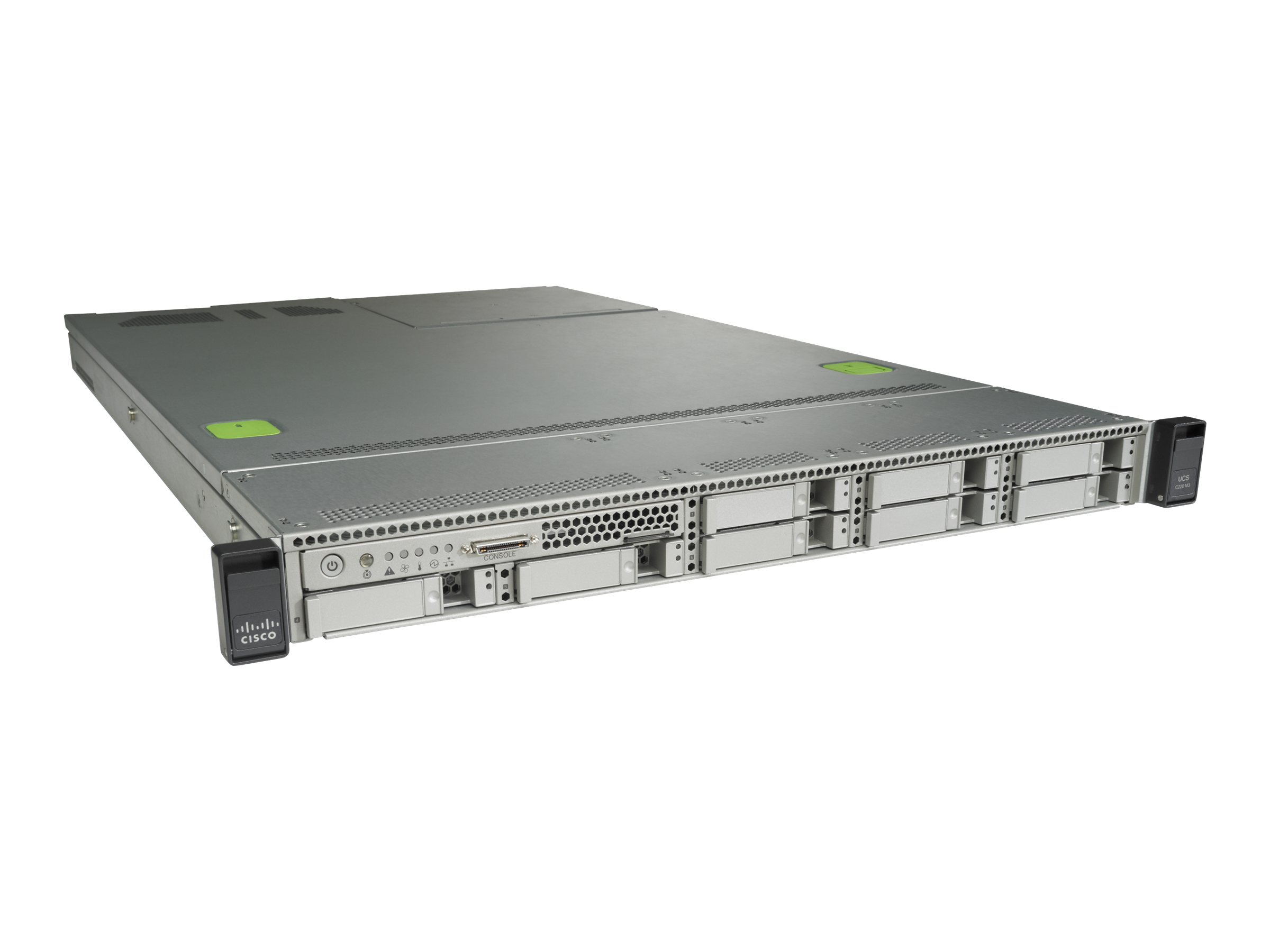

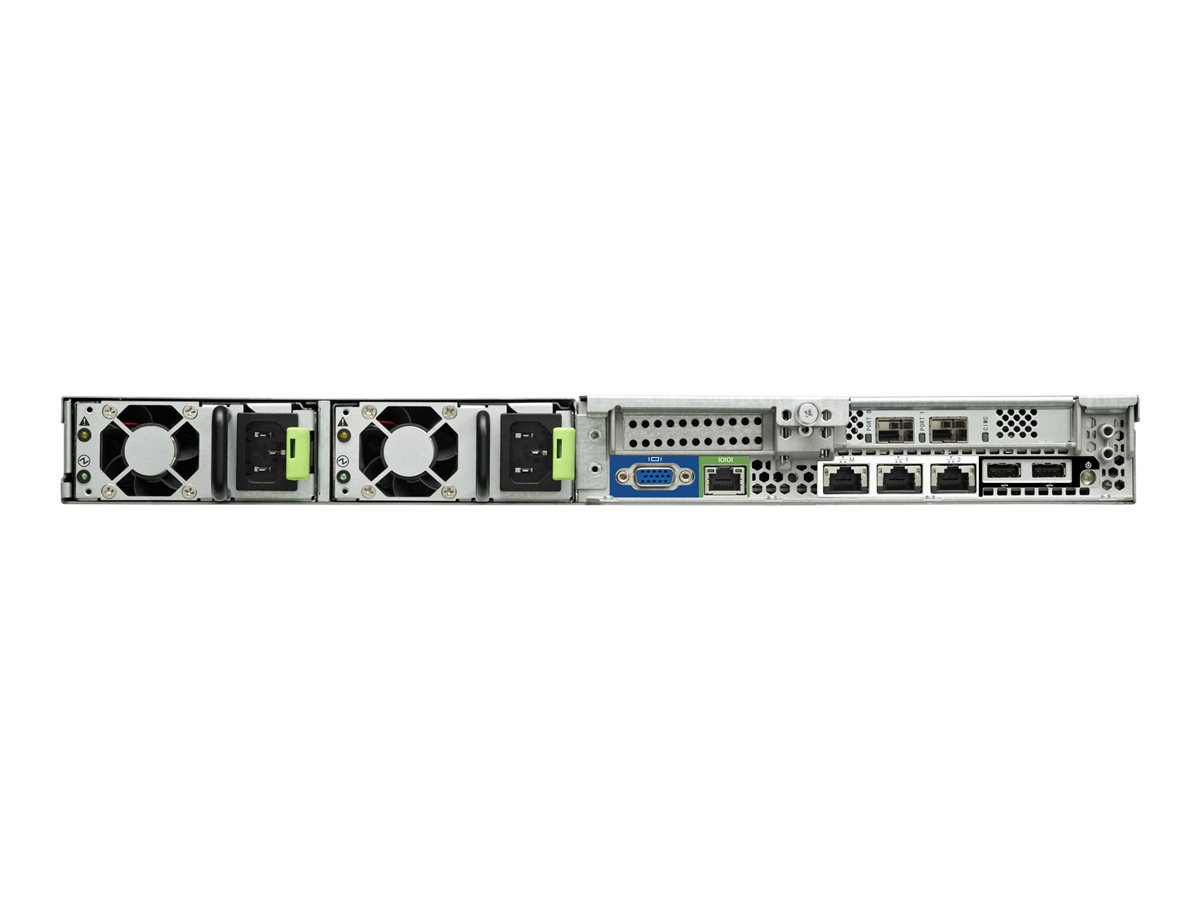

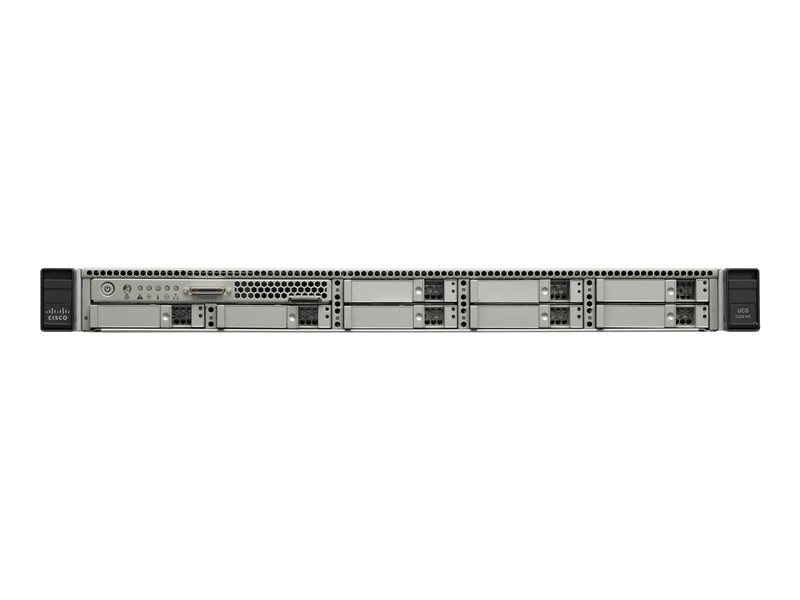

Server - rack-mountable - 1U - 2-way - 2 x Xeon E5-2620V2 / 2.1 GHz - RAM 16 GB - SATA - hot-swap 2.5" bay(s) - no HDD - GigE - monitor: none - remanufactured
| Main Specifications | |
|---|---|
| Product Description | Cisco UCS C220 M3 Entry 2 Rack Server - rack-mountable - Xeon E5-2620V2 2.1 GHz - 16 GB - no HDD |
| Type | Server - rack-mountable |
| Height (Rack Units) | 1U |
| Server Scalability | 2-way |
| Processor | 2 x Intel Xeon E5-2620V2 / 2.1 GHz (, up to 2.6 GHz, (6-core) |
| Processor Socket | LGA2011 Socket |
| Processor Main Features | Hyper-Threading Technology, Intel Turbo Boost Technology 2 |
| Cache Memory | 30 MB L3 cache |
| Cache Per Processor | 15 MB |
| RAM | 16 GB (installed) / 256 GB (max) - DDR3 SDRAM - PC3-14900 |
| Storage Controller | RAID (SATA 6Gb/s / SAS 6Gb/s) (LSISAS2008) |
| Server Storage Bays | Hot-swap 2.5" |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| Networking | GigE |
| Power | AC 120/230 V (50/60 Hz) |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 16.9 in x 28.5 in x 1.7 in |
| Pricing Type | Remanufactured |
| Manufacturer Warranty | Limited warranty - replacement - 3 years - response time: next business day |
| General | |
| Type | Server |
| Product Form Factor | Rack-mountable - 1U |
| Server Scalability | 2-way |
| Hot-Swap Bays Qty | 8 |
| Expansion / Connectivity | |
| Bays | 8 (total) / 8 (free) x hot-swap 2.5" |
| Slots | 2 (total) / 0 (free) x CPU ¦ 16 (total) / 14 (free) x memory ¦ 1 (total) / 1 (free) x PCIe 2.0 x8 - half-length ¦ 1 (total) / 1 (free) x PCIe 2.0 x16 - half-length, full-height |
| Interfaces | 1 x serial ¦ 2 x USB 2.0 ¦ 1 x management (NIC) ¦ 1 x VGA ¦ 2 x LAN (Gigabit Ethernet) ¦ 1 x KVM |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - 3 years - response time: next business day |
| Miscellaneous | |
| Included Accessories | 2 x CPU Heatsink, rack rail kit, 16 GB SD Memory Card |
| Compliant Standards | CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60950-1, GB 4943, EN 300 386 |
| Pricing Type | Remanufactured |
| RAM | |
| Installed Size | 16 GB / 256 GB (max) |
| Technology | DDR3 SDRAM |
| Effective Memory Speed | 1866 MHz |
| Rated Memory Speed | 1866 MHz |
| Memory Specification Compliance | PC3-14900 |
| Features | Registered, dual rank, low-voltage |
| Configuration Features | 2 x 8 GB |
| Networking | |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Power | |
| Device Type | Power supply |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Provided | 650 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Storage Controller | |
| Type | 1 x RAID |
| Controller Interface Type | SATA 6Gb/s / SAS 6Gb/s |
| Storage Controller Name | LSISAS2008 |
| Channel Qty | 8 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 10, RAID 50 |
| Cache Memory | |
| Installed Size | L3 cache - 30 MB |
| Cache Per Processor | 15 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Video Interfaces | VGA |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Width | 16.9 in |
| Depth | 28.5 in |
| Height | 1.7 in |
| Processor / Chipset | |
| CPU | Intel Xeon E5-2620V2 |
| Clock Speed | 2.1 GHz |
| Max Turbo Speed | 2.6 GHz |
| Number of Cores | 6-core |
| CPU Qty | 2 |
| Max CPU Qty | 2 |
| Processor Main Features | Hyper-Threading Technology, Intel Turbo Boost Technology 2 |
| CPU Socket | LGA2011 Socket |
